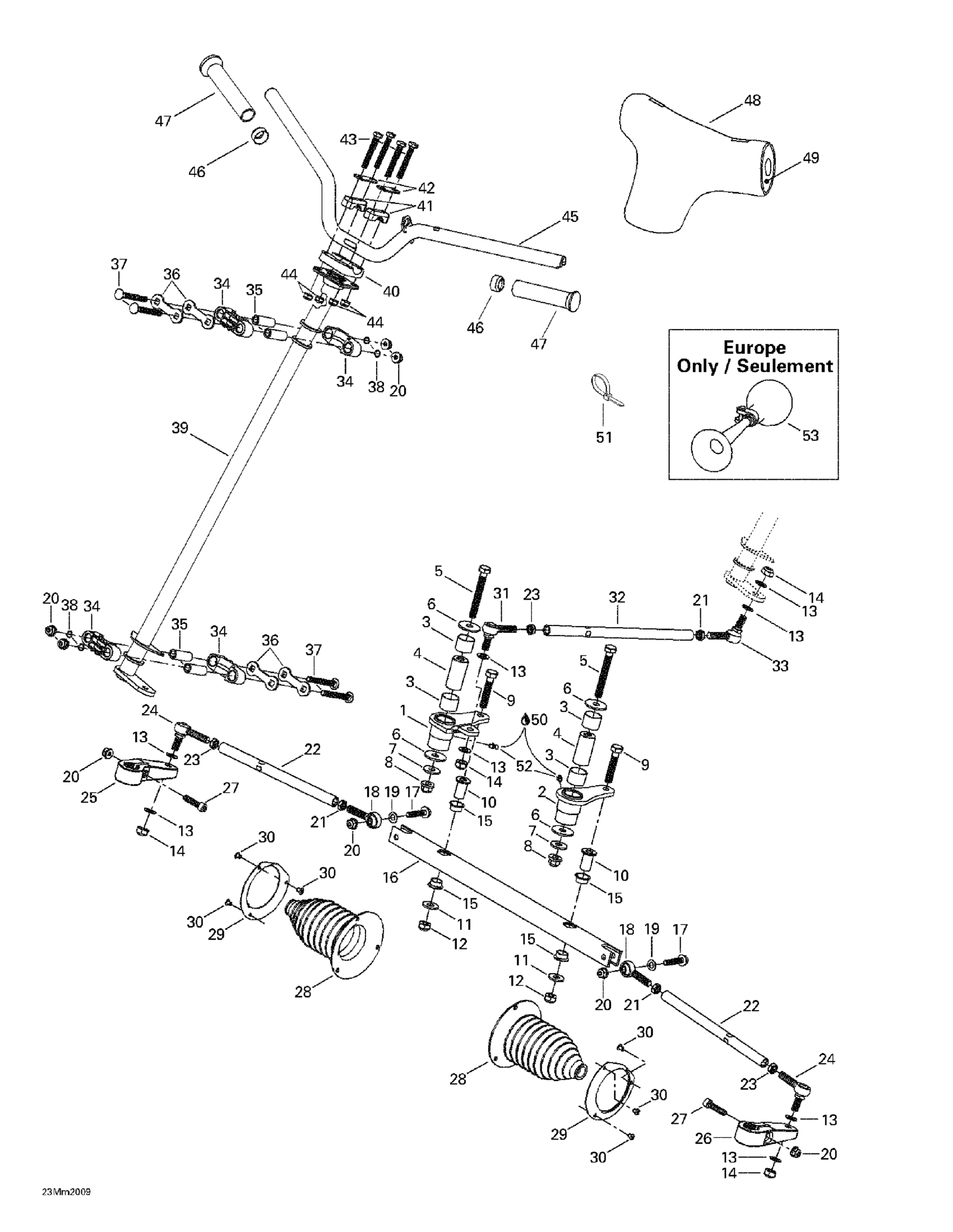

Ski-Doo MX Z 600 SB Black, 2000 Steering System Diagram
#
1
RH Swivel Arm
506146600
Unavailable
2
LH Swivel Arm
506146700
Unavailable
3
BUSHING SWIVEL - Call your local BRP dealership
506149900
Unavailable
4
PIVOT SWIVEL - Call your local BRP dealership
506150100
Unavailable
5
Hex. Screw M10 X 80
207008086
Unavailable
6
Washer 10 mm
506150000
Unavailable
7
Flat Washer M10 | 4X4
250200014
Unavailable
8
Flange Nut M10
732610084
Unavailable
9
Hex. Screw M10 X 55
207005544
Unavailable
10
BAR PIVOT - Call your local BRP dealership
506147300
Unavailable
11
FLAT WASHER - Call your local BRP dealership
224002251
Unavailable
12
Elastic Locking Nut M10 X 1.5
233601416
Unavailable
13
Washer
503175800
Unavailable
14
Elastic Flange Nut M10
232501416
Unavailable
15
Swivel Bushing
503191555
Unavailable
16
Bar-Swivel
506147000
Unavailable
17
Hex. Flange Screw M8 X 40
207684044
Unavailable
18
LH Ball Joint
506151101
Unavailable
19
Washer
506151252
Unavailable
20
Hex. Flange Elastic Nut M8
233281414
Unavailable
21
LH Threaded Hex. Jam Nut M10
250100016
Unavailable
22
Tie-Rod
506151190
Unavailable
23
RH Threaded Hex. Jam Nut M10
732610010
Unavailable
24
Ball Joint
506151491
Unavailable
25
RH STEERING ARM - Call your local BRP dealership
506145800
Unavailable
26
LH STEERING ARM - Call your local BRP dealership
506145900
Unavailable
27
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership
205083544
Unavailable
28
TIE-ROD CAP - Call your local BRP dealership
570070500
Unavailable
29
RETAINER RING - Call your local BRP dealership
506151100
Unavailable
30
Pop Rivet 3/16"
390402300
Unavailable
31
RH BALL JOINT - Call your local BRP dealership
506151492
Unavailable
32
Inside Tie-Rod
506150300
Unavailable
33
LH JOINT BALL - Call your local BRP dealership
506151845
Unavailable
34
Housing Half
506150400
Unavailable
35
Housing Bushing
506150500
Unavailable
36
Stopper Plate
506150600
Unavailable
37
Carriage Bolt M8 X 70
207787044
Unavailable
38
O-RING - Call your local BRP dealership
506151140
Unavailable
39
Main Tube
506147100
Unavailable
40
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
41
Steering Support
709400919
Unavailable
42
Stiffner
709400509
Unavailable
43
Hex. Screw M8 X 55
207085544
Unavailable
44
Hex. Elastic Stop Nut M8
232581414
Unavailable
45
Handlebar (STD-TRAIL-ADR)
506151138
Unavailable
46
HANDLEBAR END - Call your local BRP dealership
572081900
Unavailable
47
RH Grip 6-1/2"
506151530
Unavailable
48
Cover
506151263
Unavailable
49
Foam
506151262
Unavailable
50
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
51
Tie-Rap 180 mm
414115200
Unavailable
52
Grease Fitting
408200700
Unavailable
53
Horn
549011291
Unavailable
