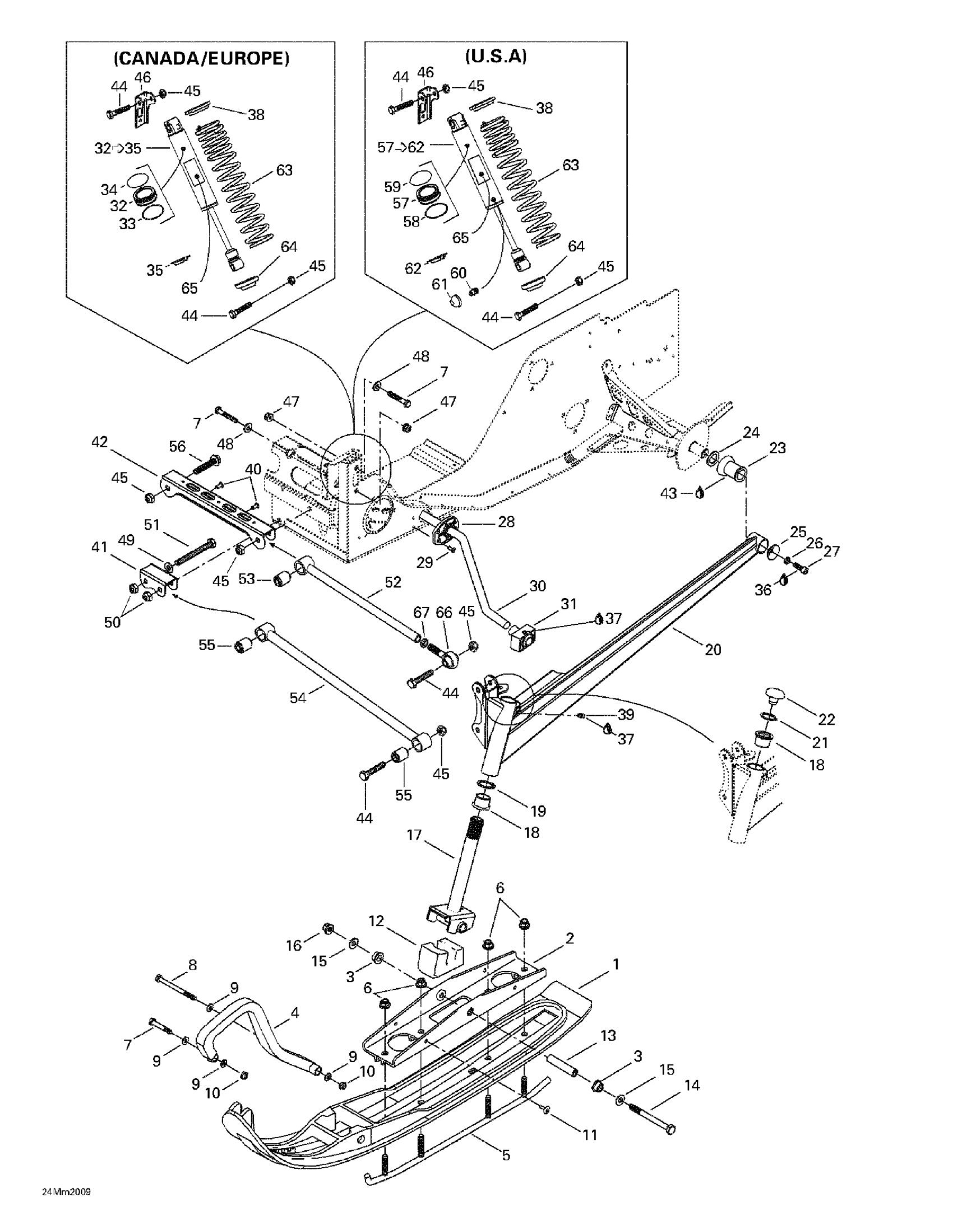

Ski-Doo MX Z 600 SB Black, 2000 Front Suspension And Ski Diagram
#
1
Ski-Liner Flex
505070189
Unavailable
Ski-Liner Flex
505070189
Unavailable
2
Bridge-ass'y | Includes 2 - 3.
505070055
Unavailable
3
BUSHING - Call your local BRP dealership
505070001
Unavailable
4
Black, Handle
505070963
Unavailable
5
CARBIDE RUNNER - Call your local BRP dealership
860501900
Unavailable
6
Elastic Locking Nut M10 X 1.5
233601416
Unavailable
7
Hex. Screw M8 X 50
207085044
Unavailable
8
SCREW-HEX. M8 X 100 - Call your local BRP dealership
230080044
Unavailable
9
Flat Washer 8 mm
234081410
Unavailable
10
Hex. Elastic Stop Nut M8
232581414
Unavailable
11
RIVET_POP 1/4 - Call your local BRP dealership
390911100
Unavailable
12
SKI STOPPER - Call your local BRP dealership
505072018
Unavailable
13
Spacer
506133300
Unavailable
14
HEX. SCREW M10 X 110 - Call your local BRP dealership
250000001
Unavailable
15
Washer
732900049
Unavailable
16
Flange Nut M10
732610084
Unavailable
17
Ski Leg
506151234
Unavailable
18
Cushion
505070003
Unavailable
19
WASHER - Call your local BRP dealership
505070004
Unavailable
20
RH Swing Arm
505070521
Unavailable
LH Swing Arm
505070522
Unavailable
21
CIRCLIP - Call your local BRP dealership
371910400
Unavailable
22
Cap
572091300
Unavailable
23
DAMPER - Call your local BRP dealership
570062200
Unavailable
24
WASHER - Call your local BRP dealership
503146700
Unavailable
25
CUP - Call your local BRP dealership
506079600
Unavailable
26
Lock Washer 8 mm
234181401
Unavailable
27
Socket Head Screw M8 X 25
205082544
Unavailable
28
BUSHING - Call your local BRP dealership
505070139
Unavailable
29
Pop Rivet 3/16"
390402300
Unavailable
30
STABILISATOR - Call your local BRP dealership
505070563
Unavailable
31
BALL JOINT BLOCK - Call your local BRP dealership
505070121
Unavailable
32
Front Shock Ass'y | Includes 35 - 39. MX Z 700.
505070319
Unavailable
32
FREE PISTON - Call your local BRP dealership
503189309
Unavailable
33
O-Ring
414888312
Unavailable
34
Piston Ring
503189308
Unavailable
35
Spring Seat | MX Z 700.
505070306
Unavailable
36
Loctite 243, 10 ml
293800060
Unavailable
37
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
38
Spring Stopper
706200881
Unavailable
39
Grease Fitting
408200700
Unavailable
40
Pop Rivet 3/16"
390402200
Unavailable
41
Lower Arm Bracket
505070011
Unavailable
42
Upper Arm Bracket
505070010
Unavailable
43
Grease, Super Lube
293550030
Unavailable
44
Hex. Screw M10 X 55
207005544
Unavailable
45
Elastic Locking Nut M10 X 1.5
233601416
Unavailable
46
RH SHOCK BRACKET - Call your local BRP dealership
518317518
Unavailable
LH Shock Bracket
518317519
Unavailable
47
Hex. Flange Elastic Nut M8
233281414
Unavailable
48
Washer
506151245
Unavailable
49
Flat Washer 10 mm
234001410
Unavailable
50
Elastic Locking Nut M10 X 1.5
233601416
Unavailable
51
Hex. Screw M10 X 95
207009544
Unavailable
52
UPPER ARM ASSY - Call your local BRP dealership | Includes 41 - 42. ADRENALINE & TRAIL
505070214
Unavailable
53
Bushing
505070025
Unavailable
54
Lower Arm Ass’Y | Includes 43 To 44
505070402
Unavailable
55
Bushing
505070025
Unavailable
56
Hex. Flange Screw M10 X 55
207605544
Unavailable
57
Front Shock(USA Only) | Includes 57 - 62.
505070186
Unavailable
57
FREE PISTON - Call your local BRP dealership
503189309
Unavailable
58
O-Ring
414888312
Unavailable
59
Piston Ring
503189308
Unavailable
60
AIR VALVE - Call your local BRP dealership
414888314
Unavailable
61
Air Valve Cap
415127405
Unavailable
62
Spring Seat | MX Z 700.
505070306
Unavailable
63
Spring (STD-ADR)
505070181
Unavailable
Spring (EUROPE)
505070034
Unavailable
64
Cap
706200785
Unavailable
65
Shock Decal
516000183
Unavailable
66
Ball Joint
415068400
Unavailable
67
Nut Hexagonal RH.
232026414
Unavailable
