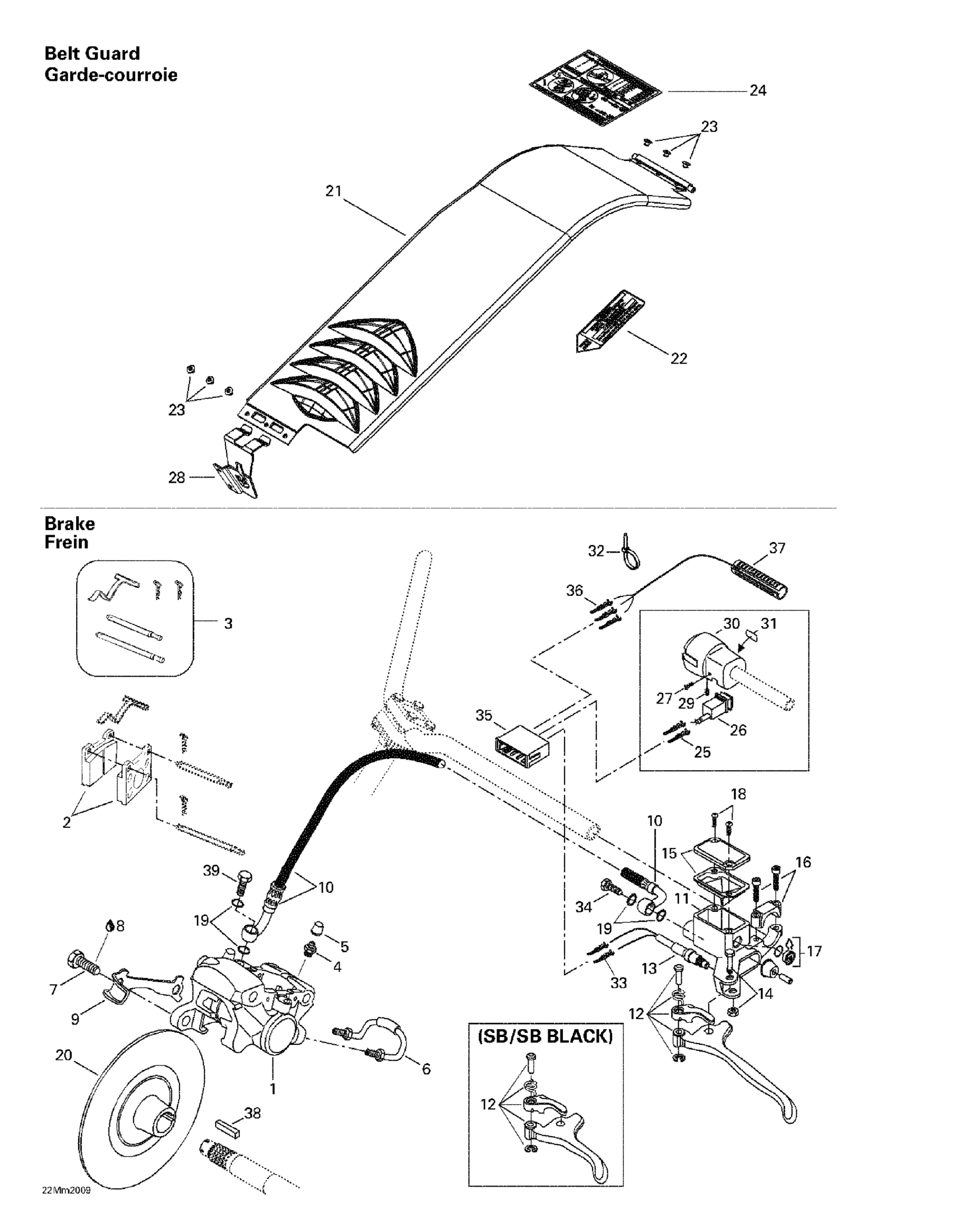

Ski-Doo MX Z 600 SB Black, 2000 Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Caliper | Includes 10 - 15.

414920000

Unavailable

2

Brake Pad Kit

415084600

$76.12

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Hex. Screw M10 X 35

207103544

$1.42

8

Loctite 243, 10 ml

293800060

$20.77

9

Locking Tab

507029900

Unavailable

10

HOSE - Call your local BRP dealership

507032237

$53.82

11

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

$346.12

Master Cylinder | MX Z 500 SB (Black). MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.

507032279

Unavailable

12

LEVER - Call your local BRP dealership

507032428

$74.58

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

$67.99

13

Microswitch

507032366

$104.58

Microswitch Ass'y | MX-Z 600 SB. MX-Z 600 SB Black.

415127696

Unavailable

14

Pin Ass'y

415030000

$17.66

15

Cap

415029900

$41.51

16

Clamp And Screw Kit

507032477

$23.05

17

WINDOW - Call your local BRP dealership

414990600

Unavailable

18

SCREW M4 X 12 - Call your local BRP dealership

216141260

$1.17

19

Washer

414920600

$1.52

20

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

21

Belt Guard Ass'y | Includes 2 - 4.

417300002

Unavailable

22

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

23

Pop Rivet 3/16"

390402200

$0.26

24

Ajustement Decal

516000708

Unavailable

25

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

26

Light Switch | 500 F.

515175390

Unavailable

27

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

$1.32

28

Bracket

417300001

Unavailable

29

Socket Set Screw M8 X 10

414440800

$4.00

30

Brake Housing

515175307

$24.58

31

Switch Decal

415025500

Unavailable

32

Tie Wrap 94 mm | 4X4

293750001

$0.83

33

Male Terminal

515175232

$1.49

34

Banjo Bolt

414920500

$8.49

35

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

$12.02

36

Male Terminal

515175232

$1.49

37

Heating Grip

515175573

$59.20

38

KEY - Call your local BRP dealership

507021300

Unavailable
