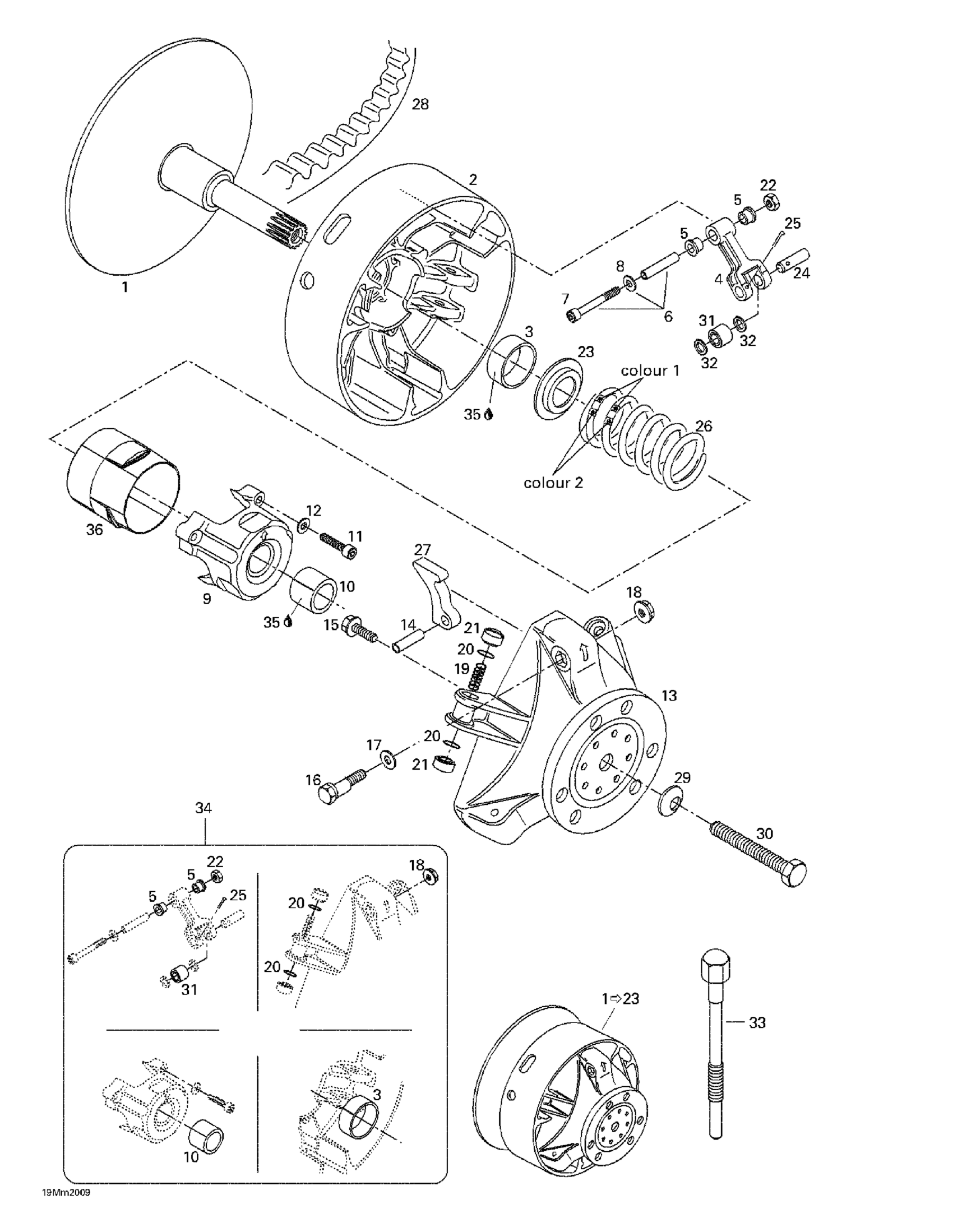

Ski-Doo MX Z 600 SB Black, 2000 Drive Pulley Diagram
#
1
Drive Pulley Ass'y | Includes 1 - 23.
417222283
Unavailable
1
Fixed Flange
417222411
Unavailable
2
OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.
417222049
Unavailable
3
Bushing
417004201
Unavailable
4
LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.
417003801
Unavailable
5
Bushing
417004305
Unavailable
6
SCREW ASSY - Call your local BRP dealership | Includes 12 to 13
417004800
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Spring Cover Ass'y | Includes 9 - 10.
417222157
Unavailable
10
Bushing
417004501
Unavailable
11
Socket Screw M6 X 40
205064086
Unavailable
12
WASHER - Call your local BRP dealership
420245370
Unavailable
13
GOVERNOR CUP ASSY - Call your local BRP dealership
417222081
Unavailable
14
Pin M8 X 24
732804009
Unavailable
15
HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership
210361890
Unavailable
16
CALIBRATION SCREW - Call your local BRP dealership
417222955
Unavailable
17
Washer
417005600
Unavailable
18
Hex. Flange Nut M6
233061414
Unavailable
19
Spring
417005700
Unavailable
20
O-Ring
732401030
Unavailable
21
Slider Shoe This part replaces 420460045.
417223021
Unavailable
22
Elastic Stop Nut M6
232561414
Unavailable
23
Spring Seat
417222044
Unavailable
24
Pin
417004308
Unavailable
25
Cotter Pin
250400060
Unavailable
26
Spring, Violet/yellow This part replaces 415128608.
415015300
Unavailable
27
Ramp 281 | Formula Deluxe 500. Formula Deluxe 600.
417005281
Unavailable
28
Drive Belt
414860700
Unavailable
29
Spring Washer 14 mm
250200006
Unavailable
30
Drive Pulley Bolt
417120000
Unavailable
31
Roller
417222947
Unavailable
32
Stopper Washer
417004302
Unavailable
33
Puller This part replaces 529022400.
529000064
Unavailable
34
Clutch Repair Kit
417006100
Unavailable
35
Loctite 609, 10 ml
413703100
Unavailable
36
Guard
417222176
Unavailable
