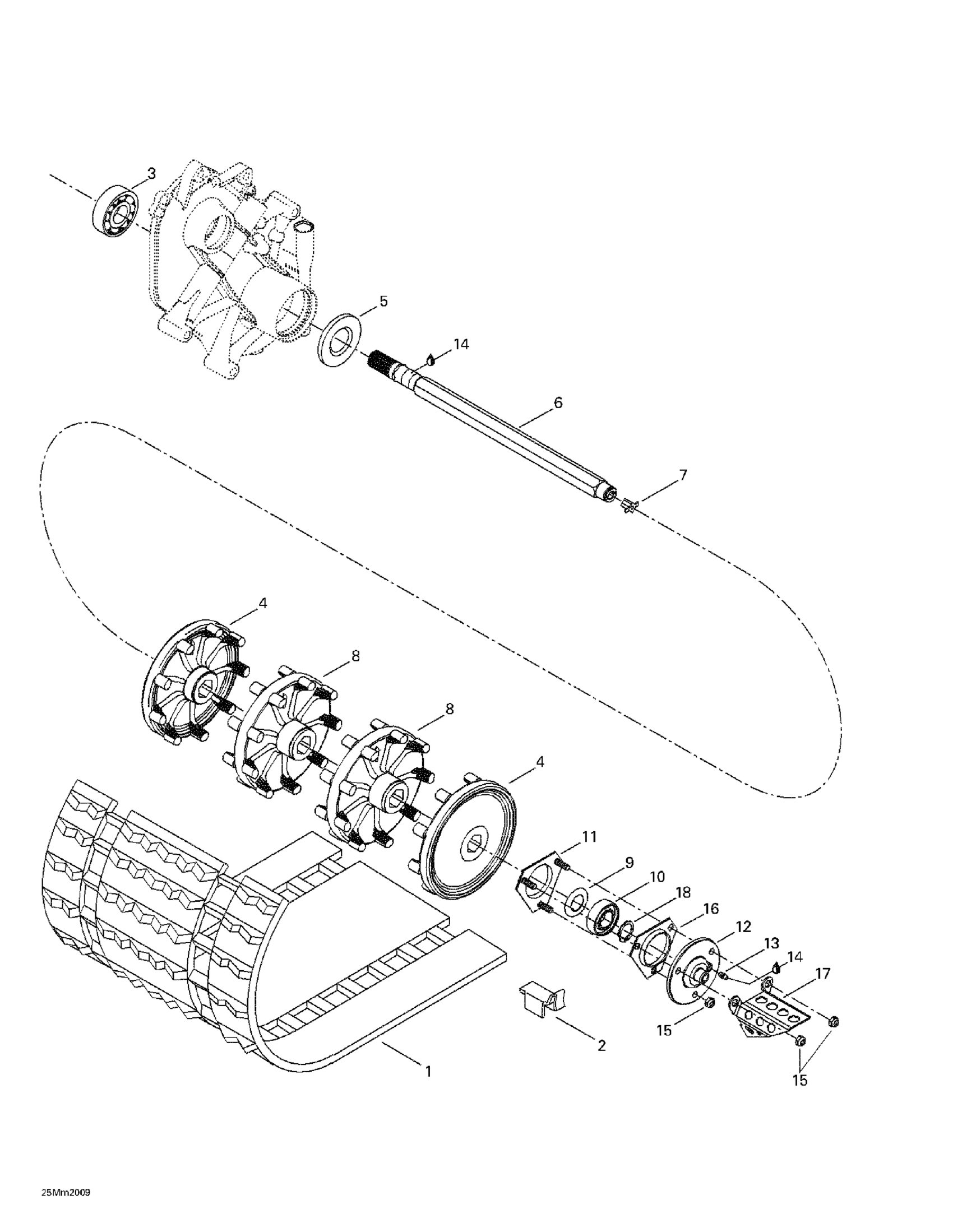

Ski-Doo MX Z 600 SB Black, 2000 Drive Axle And Track Diagram

#

Description
Price

1

Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10

504152485

Unavailable

2

Track Guide | Track Width 16''

415129528

Unavailable

3

Ball Bearing

504152005

Unavailable

4

HALF SPROCKET, 9 TEETH - Call your local BRP dealership

504151782

Unavailable

5

Oil Seal Ass'y

504151918

Unavailable

6

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

7

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

8

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

9

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

10

Ball Bearing

293350060

Unavailable

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

Flange, Speedo Drive Insert

504151836

Unavailable

13

Grease Fitting

408200700

Unavailable

14

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

15

Hex. Elastic Stop Nut M8

232581414

Unavailable

16

FLANGE - Call your local BRP dealership

501025000

Unavailable

17

CABLE PROTECTOR - Call your local BRP dealership

517290100

Unavailable

18

CIRCLIP - Call your local BRP dealership

371910200

Unavailable
