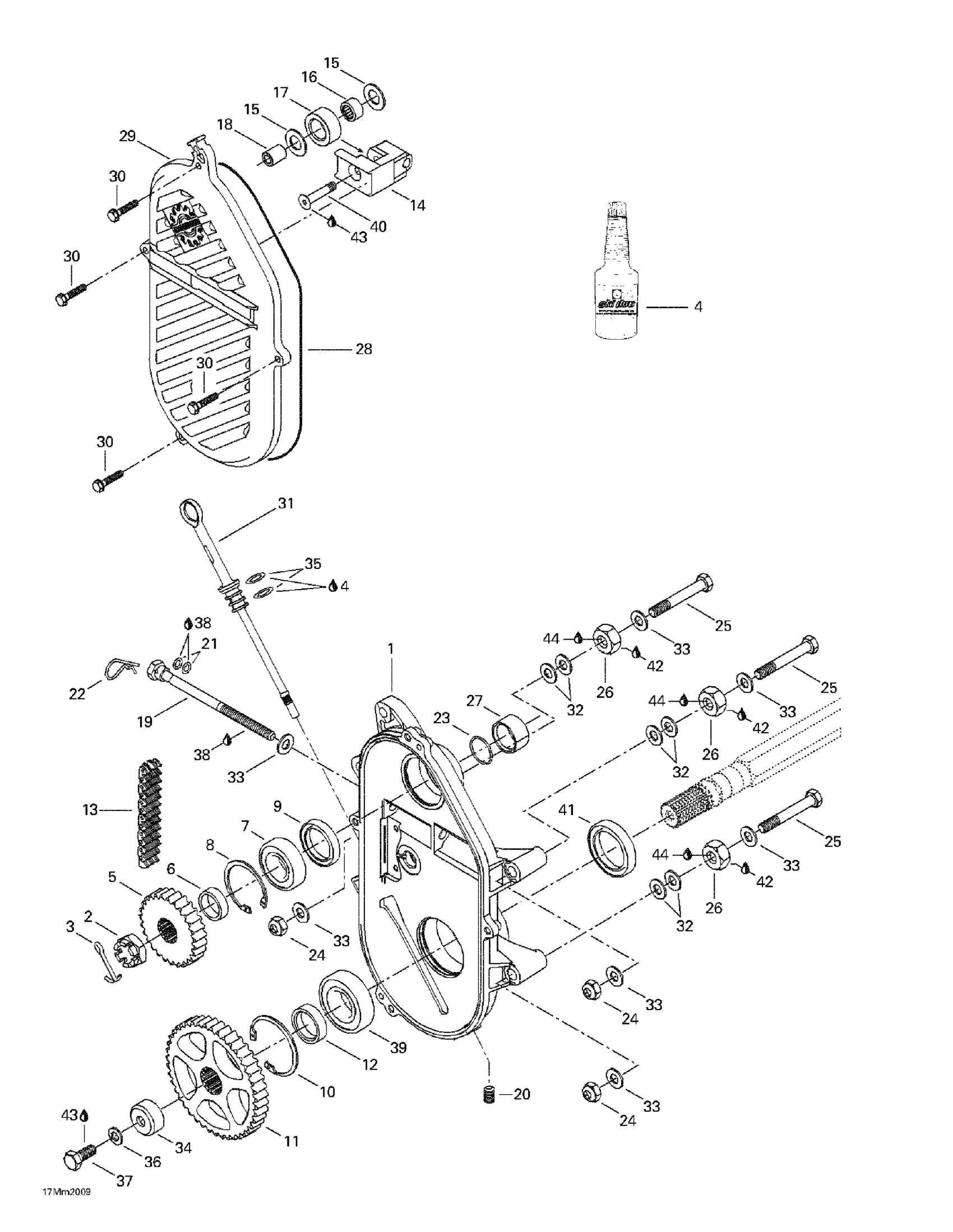

Ski-Doo MX Z 600 SB Black, 2000 Chaincase Diagram

#

Description
Price

1

CHAINCASE - Call your local BRP dealership

504151776

Unavailable

2

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

3

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

4

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

5

SPROCKET, 24 TEETH - Call your local BRP dealership

504139700

$113.05

6

SHIM - Call your local BRP dealership

504147200

Unavailable

7

Ball Bearing

293350115

$11.15

8

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

9

Oil Seal

293200158

$12.52

10

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

11

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

12

Inner Shim

501021800

Unavailable

13

Drive Chain, 74 Links | Except Europe

504151857

$146.89

14

Chain Tensioner

504151951

Unavailable

15

WASHER - Call your local BRP dealership

504080300

$4.63

16

NEEDLE BEARING - Call your local BRP dealership

405403000

$22.28

17

ROLLER - Call your local BRP dealership

414531300

Unavailable

18

SPACER - Call your local BRP dealership

504080200

$15.35

19

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

20

Plug 1/8”-27

504151921

$3.97

21

O-Ring

414484400

$7.31

22

Hair Pin

414575600

$1.51

23

O-RING - Call your local BRP dealership

414876700

Unavailable

24

Hex. Flange Elastic Nut M10

233201414

$1.26

25

HEX. SCREW M10 X 80 - Call your local BRP dealership

207108044

$6.45

26

Spacer

504083800

Unavailable

27

SPACER - Call your local BRP dealership

507031500

Unavailable

28

O-Ring

415046400

$24.58

29

Chaincase Cover

080044000

$161.51

30

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

31

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

32

WASHER - Call your local BRP dealership

504073700

$3.08

33

Flat Washer 10 mm

234001410

$0.98

34

Cap

501022400

Unavailable

35

O-RING - Call your local BRP dealership

414969400

Unavailable

36

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

37

Hex. Screw M10 X 25

207102544

$1.11

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

39

Ball Bearing

504152005

Unavailable

40

SCREW - Call your local BRP dealership

732601144

$1.37

41

Oil Seal Ass'y

504151918

$19.20

42

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

43

Loctite 271, 10 ml

293800005

$20.77

44

Loctite 243, 10 ml

293800060

$20.77
