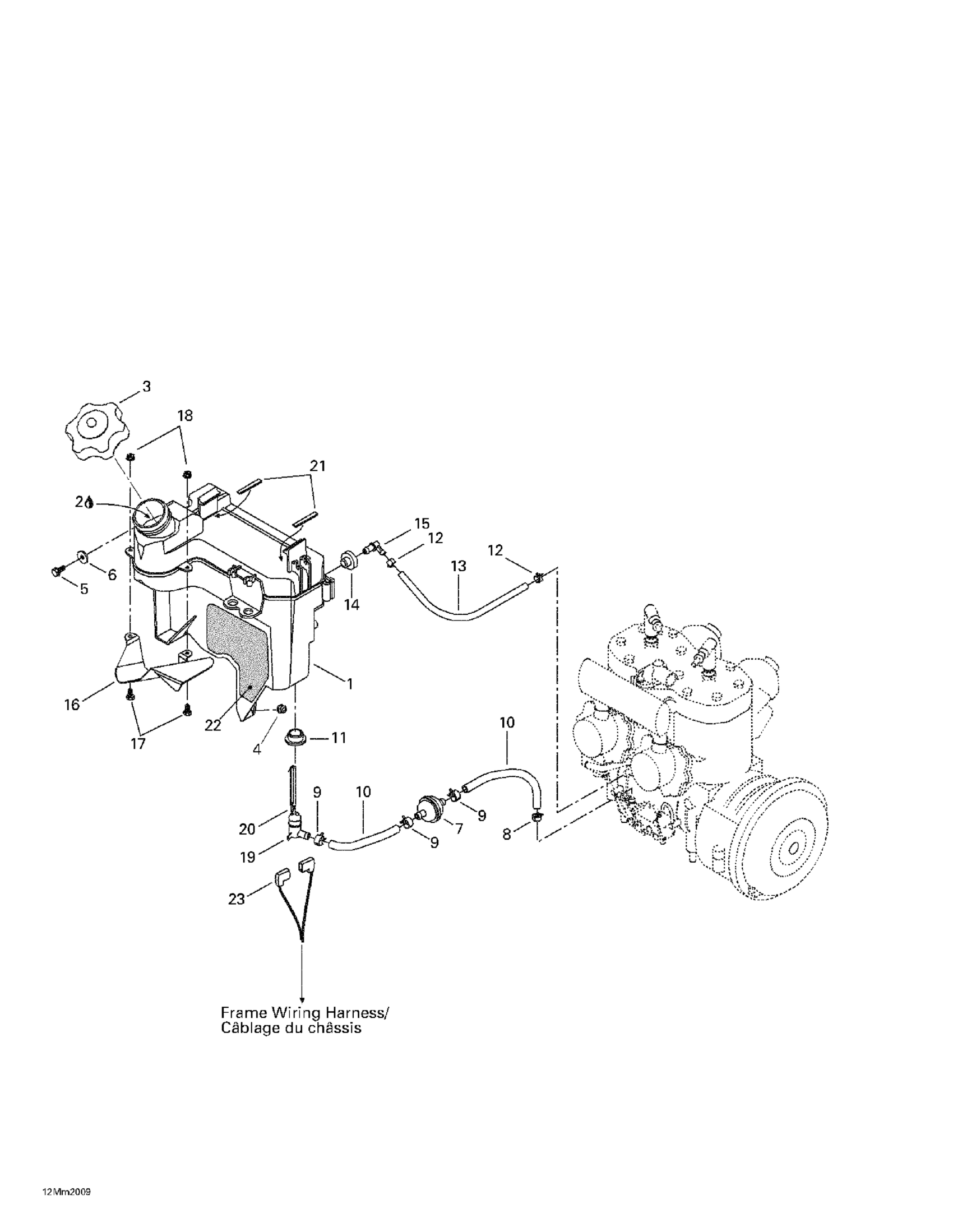

Ski-Doo MX Z 600 SB Black, 2000 Oil Tank Diagram
#
Description
Price
1
Oil Tank
519000028
Unavailable
2
OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.
293600120
Unavailable
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
2T Snowmobile Premium Mineral Oil This part replaces 413803000.
779120
Unavailable
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.
779123
Unavailable
OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.
293600133
Unavailable
OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.
779130
Unavailable
SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership
413710500
Unavailable
3
Cap
519000017
Unavailable
4
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
5
Hex. Flange Screw M6 X 16
210261650
Unavailable
6
Lock Washer Serrated M6
250200041
Unavailable
7
Filter
414536500
Unavailable
8
Spring Clamp
414420700
Unavailable
9
Spring Clamp
414415200
Unavailable
10
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
11
Insulating Ring
570023000
Unavailable
12
Spring Clamp
414554800
Unavailable
13
Polyurethane Hose 10000Mm Long
219704410
Unavailable
14
Grommet
709200285
Unavailable
15
Male Connector
414580700
Unavailable
16
Deflector
519000018
Unavailable
17
Hex. Screw M5 X 12
207151244
Unavailable
18
Hex. Flange Elastic Nut M5
233251414
Unavailable
19
LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A
414681800
Unavailable
20
Float
414681900
Unavailable
21
Was 271000110 Protection Trim
219704353
Unavailable
22
Reflective Sheet
519000023
Unavailable
23
Female Terminal
409010300
Unavailable
