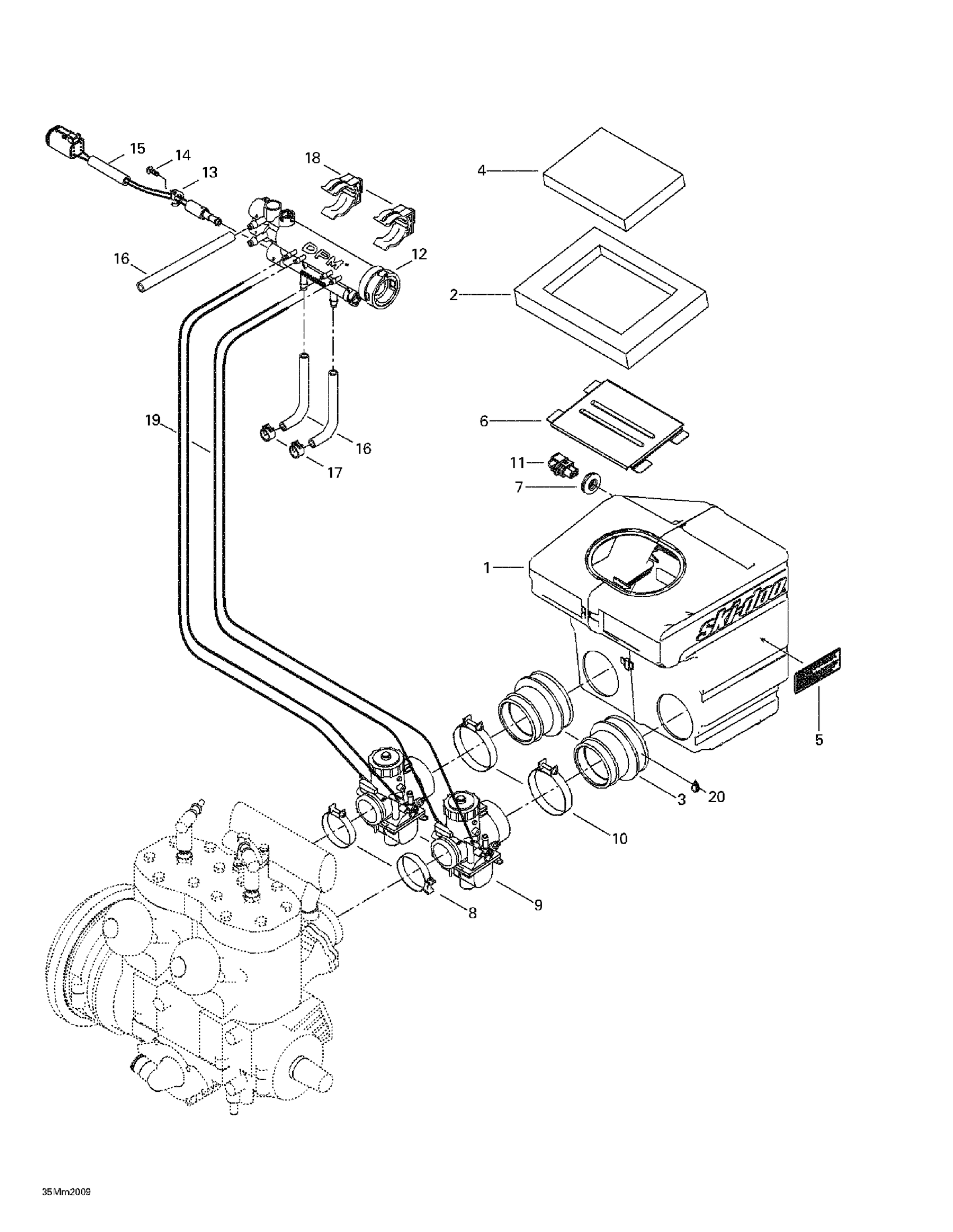

Ski-Doo MX Z 600 SB Black, 2000 Air Intake System Diagram

#

Description
Price

1

Air Intake Ass'y | Includes 1 - 6. Formula Deluxe 600.

508000074

Unavailable

1

Air Intake Ass'y | Includes 1 - 7. MX-Z 600 SB. MX-Z 600 SB Black.

508000081

Unavailable

2

Lower Foam

508000099

Unavailable

3

Air Intake Adaptor (40 mm)

570068900

Unavailable

4

Air Filter

508000154

$22.28

5

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

6

INTAKE GRILL - Call your local BRP dealership

508000004

$106.12

7

GROMMET - Call your local BRP dealership

570065500

$10.74

8

Gemi Clamp

293650158

$8.34

9

VM 40-122 Carburetor | Formula Deluxe 600.

403138614

Unavailable

Carburetor VM40-124 | MX-Z 600 SB. MX-Z 600 SB Black.

403138616

Unavailable

10

Clamp

508000009

Unavailable

11

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

12

Pressure Manifold Ass'y | Includes 11 - 14. MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.

512059193

$479.97

13

SOLENOID LOCK - Call your local BRP dealership

415061600

$7.34

14

Screw K40 X 10

241140060

$1.25

15

Pressure Manifold Harness | Includes 4 - 8.

515175271

Unavailable

16

Polyurethane Hose 10000Mm Long

219704410

$46.12

17

Spring Clamp

414554800

$0.83

18

SUPPORT - Call your local BRP dealership

512058919

$10.74

19

Air Vent Tube

404161802

Unavailable

20

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74
