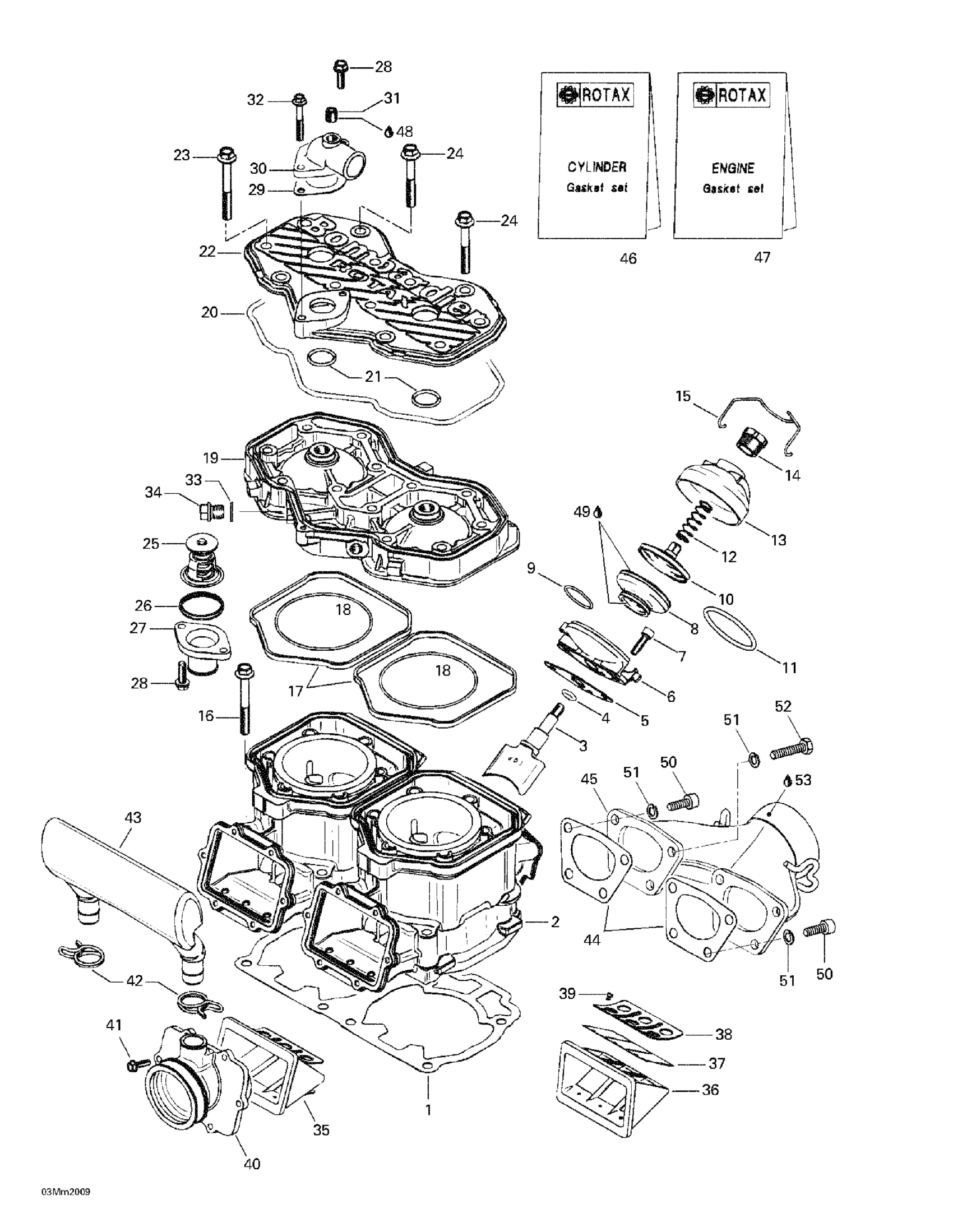

Ski-Doo MX Z 600 SB Black, 2000 Cylinder, Exhaust Manifold, Reed Valve Diagram
#
1
Gasket 0.8 mm
420431423
Unavailable
Gasket 0.7 mm
420431422
Unavailable
Gasket 0.6 mm
420431421
Unavailable
Gasket 0.5 mm
420431420
Unavailable
2
Cylinder With Sleeve
420613628
Unavailable
3
Exhaust Valve
420854371
Unavailable
4
O-Ring
420430110
Unavailable
5
Gasket
420250239
Unavailable
6
Valve Housing | Grand Touring 600.
420854265
Unavailable
7
Socket Head Screw M6 X 20
205062044
Unavailable
8
Exhaust Bellows
420260723
Unavailable
9
Hose Spring This part replaces 420838253.
420838255
Unavailable
10
Exhaust Valve This part replaces 290253257.
420854449
Unavailable
11
Hose Spring This part replaces 420239048.
420939281
Unavailable
12
Spring This part replaces 420239944.
420239954
Unavailable
13
Valve Cover
420911552
Unavailable
14
Adjuster Screw
420241221
Unavailable
15
SPRING CLIP - Call your local BRP dealership
420838083
Unavailable
16
Hex. Collar Screw M8 X 68.5 This part replaces 420640951.
420640952
Unavailable
17
Rubber Ring
420931590
Unavailable
18
O-Ring This part replaces 420850540.
293300026
Unavailable
19
CYLINDER HEAD (SILVER) - Call your local BRP dealership | Skandic 600.
420923450
Unavailable
20
O-Ring This part replaces 290950320.
420950320
Unavailable
21
O-Ring
420430782
Unavailable
22
CYLINDER HEAD COVER - Call your local BRP dealership
420923465
Unavailable
23
Hex. Collar Screw M8 X 65 This part replaces 420841306.
420841307
Unavailable
24
Hex. Screw M8 X 56.5
420941627
Unavailable
25
Thermostat This part replaces 414834100.
420922519
Unavailable
26
SEALING RING - Call your local BRP dealership
420931270
Unavailable
27
BENT OUTLET SOCKET - Call your local BRP dealership
420922025
Unavailable
28
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
420941251
Unavailable
29
Gasket
420850338
Unavailable
30
BENT OUTLET SOCKET - Call your local BRP dealership
420922062
Unavailable
31
PLUG SCREW - Call your local BRP dealership
420240480
Unavailable
32
HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership
420941451
Unavailable
33
Aluminum Sealing Ring
420250016
Unavailable
34
Plug screw
420841924
Unavailable
35
Reed Valve Ass'y
420924519
Unavailable
36
Not Available As Spare Part - Friction Washer
Unavailable
37
Reed Pedal
420924532
Unavailable
38
Reed Pedal Stop
420924539
Unavailable
39
Phillips Screw M3 X 5
420941215
Unavailable
40
CARBURETOR SOCKET - Call your local BRP dealership | Formula Deluxe 600.
420867805
Unavailable
41
Taptite Screw M5 X 16
420941928
Unavailable
42
CLAMP - Call your local BRP dealership
420851440
Unavailable
43
Intake Resonator
420867815
Unavailable
44
Gasket
420931610
Unavailable
45
Exhaust Manifold
420979543
Unavailable
46
Engine Gasket Set | Formula Deluxe 600.
420888581
Unavailable
47
Gasket Set, Cylinder
420893075
Unavailable
48
Loctite 243, 10 ml
293800060
Unavailable
49
Dow Corning 111, 150 g
413707000
Unavailable
50
Socket Head Screw M8 X 25
205082544
Unavailable
51
Lock Washer 8 mm
234181401
Unavailable
52
Hex. Screw M8 X 20
207182044
Unavailable
53
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
