Description

Price

1

REBUILD-CRANKSHAFT 593 2000 - Call your local BRP dealership | Grand Touring 600. This part replaces 420888751.

421000563

Unavailable

1

REBUILD-CRANKSHAFT 593 2000 - Call your local BRP dealership | Grand Touring 600. This part replaces 420888751.

421000563

Unavailable

2

DISTANCE RING - Call your local BRP dealership

420827445

$6.46

3

Ball Bearing 6206

420832590

$46.12

4

RETAINING DISK - Call your local BRP dealership

420827050

$5.74

5

ADJUSTMENT WASHER - Call your local BRP dealership

420427684

$6.60

6

Oil Seal

420931795

$16.89

7

DISTANCE RING - Call your local BRP dealership

420827760

$5.29

8

Ball Bearing 6207 | With drive pin

420832575

$50.74

9

Oil Seal

420931455

$34.58

10

Retaining Disk

420927710

$7.23

11

Oil Seal This part replaces 290831952.

420831952

$14.27

12

Woodruff Key

420246015

$3.11

13

Lock Washer, 22 mm

420945759

$1.55

14

Hex. Nut, M22 X 1.5

420842239

$14.27

15

Needle Bearing

420832445

$26.12

16

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

420889173

$174.58

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

420889174

$174.58

17

Semi-Trapez Ring, Standard

420815155

$52.99

Semi-Trapez Ring, 1st

420815156

$52.99

18

Piston Pin

420916412

$31.99

19

PISTON CIRCLIP - Call your local BRP dealership | Formula Deluxe 600.

420845102

Unavailable

20

Ball Bearing 6206

420832590

$46.12

21

Oil Seal | Included in gasket kit

420931940

$29.97

22

Central Gear, 15 Teeth

420834350

$93.82

23

CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.

420818665

Unavailable

24

Crankshaft This part replaces 420818693.

420818697

$259.99

25

Rod Repair Kit, MAG Side

420890973

$319.99

Rod Repair Kit, PTO Side

420890974

$319.99

26

Loctite 243, 10 ml

293800060

$20.77

27

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

28

Sealant Loctite 648

219703000

$35.72

29

Dow Corning 111, 150 g

413707000

$57.82

30

Petamo Grease, GHY133N, 400 g

420899271

$57.17

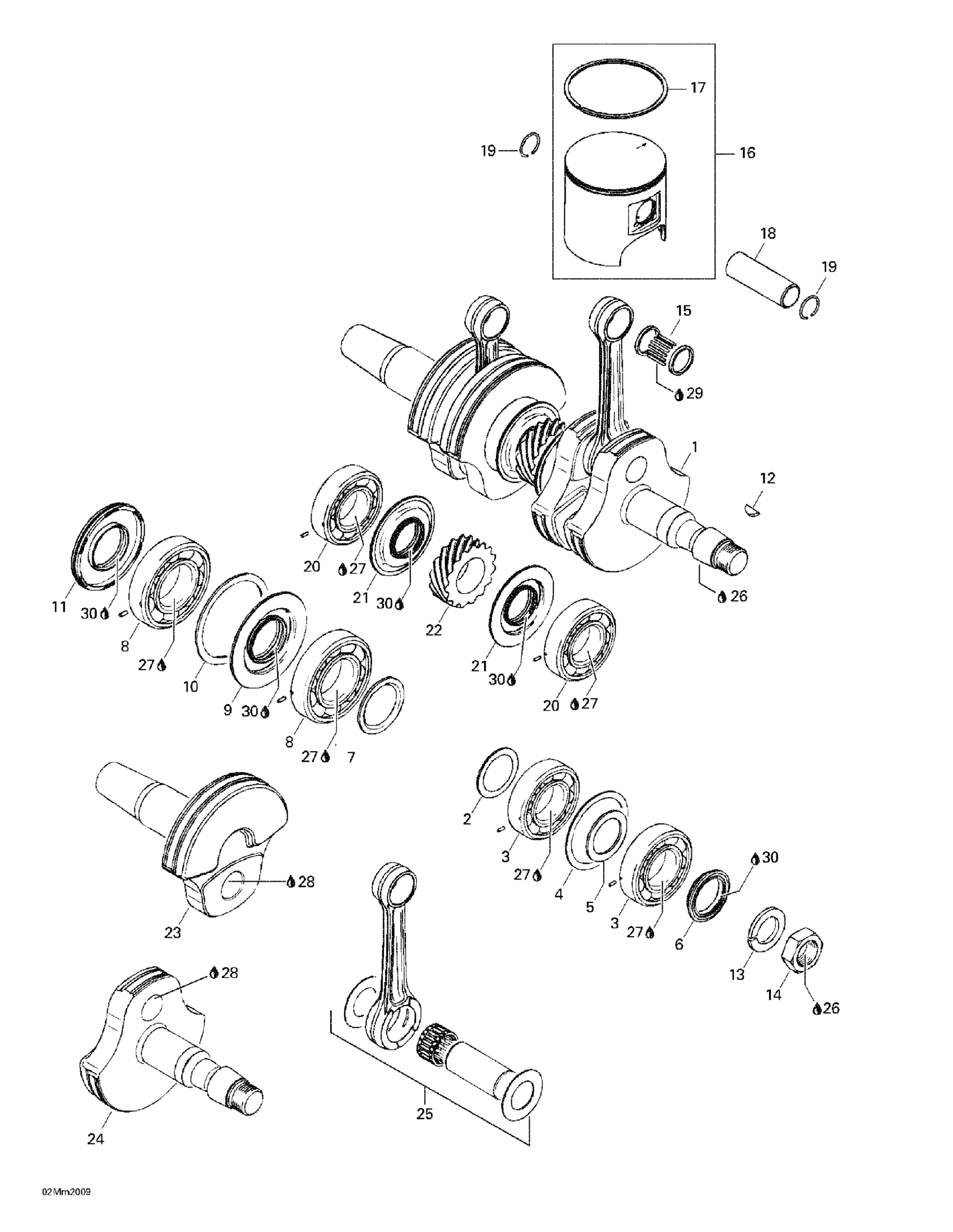

Ski-Doo MX Z 600 SB Black, 2000 Crankshaft And Pistons Diagram
