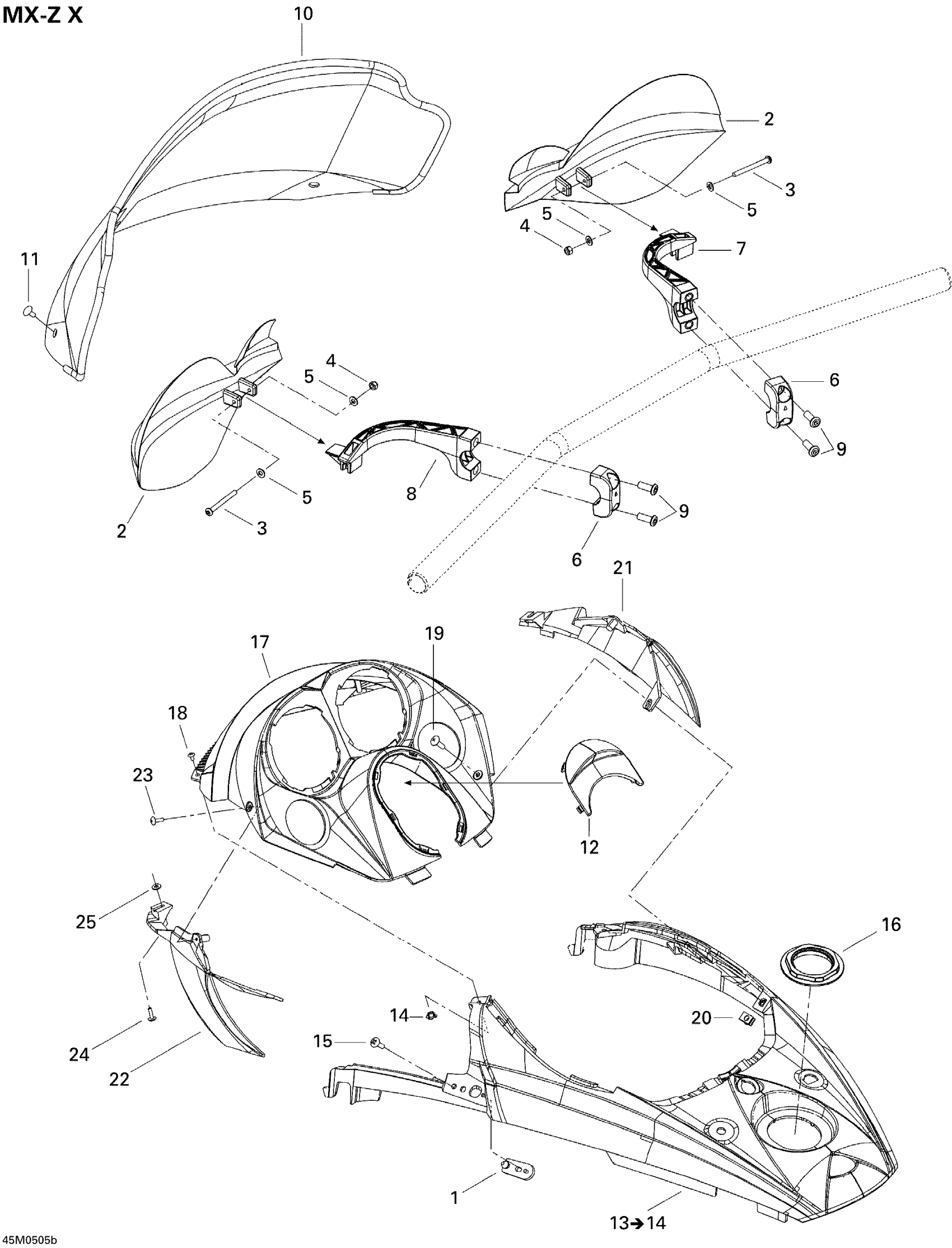

Ski-Doo MX Z 600 HO Trail & Adrenaline & X, 2005 Windshield And Console MX-Z X Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

Air Deflector Kit, Yellow

415128768

Unavailable

3

Socket Head Screw M4 X 40 | X

205444086

$1.42

4

Elastic Stop Nut M4

232541484

Unavailable

5

Flat Washer 4 mm

234041480

Unavailable

6

U-Clamp | XT

517303264

Unavailable

7

RH DEFLECTOR SUPPORT - Call your local BRP dealership

517303590

Unavailable

8

LH DEFLECTOR SUPPORT - Call your local BRP dealership

517303591

Unavailable

9

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

10

LOW WINDSHIELD - Call your local BRP dealership

517303045

Unavailable

11

Tuflok Plastic Rivet

293150230

Unavailable

12

CONSOLE CAP - Call your local BRP dealership

517302592

Unavailable

13

CENTER CONSOLE, BLACK - Call your local BRP dealership | Includes 10 to 11, (Black/Yellow)

517302795

Unavailable

14

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

15

Torx Screw M6 X 20

250000722

Unavailable

16

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

17

INDICATOR SUPPORT - Call your local BRP dealership

517303472

Unavailable

18

Torx Screw M4 X 8

250000127

$1.09

19

Torx Screw M5 X 20

250000724

Unavailable

20

Panel Nut M5 X 0.8

250000958

Unavailable

21

RH Air Deflector

517302798

Unavailable

22

LH AIR DEFLECTOR - Call your local BRP dealership

517302799

Unavailable

23

Phillips Screw K40 X 16

250000723

Unavailable

24

Screw M4 X 16

250000725

Unavailable

25

Flat Washer 4 mm, Stainless

234042600

Unavailable
