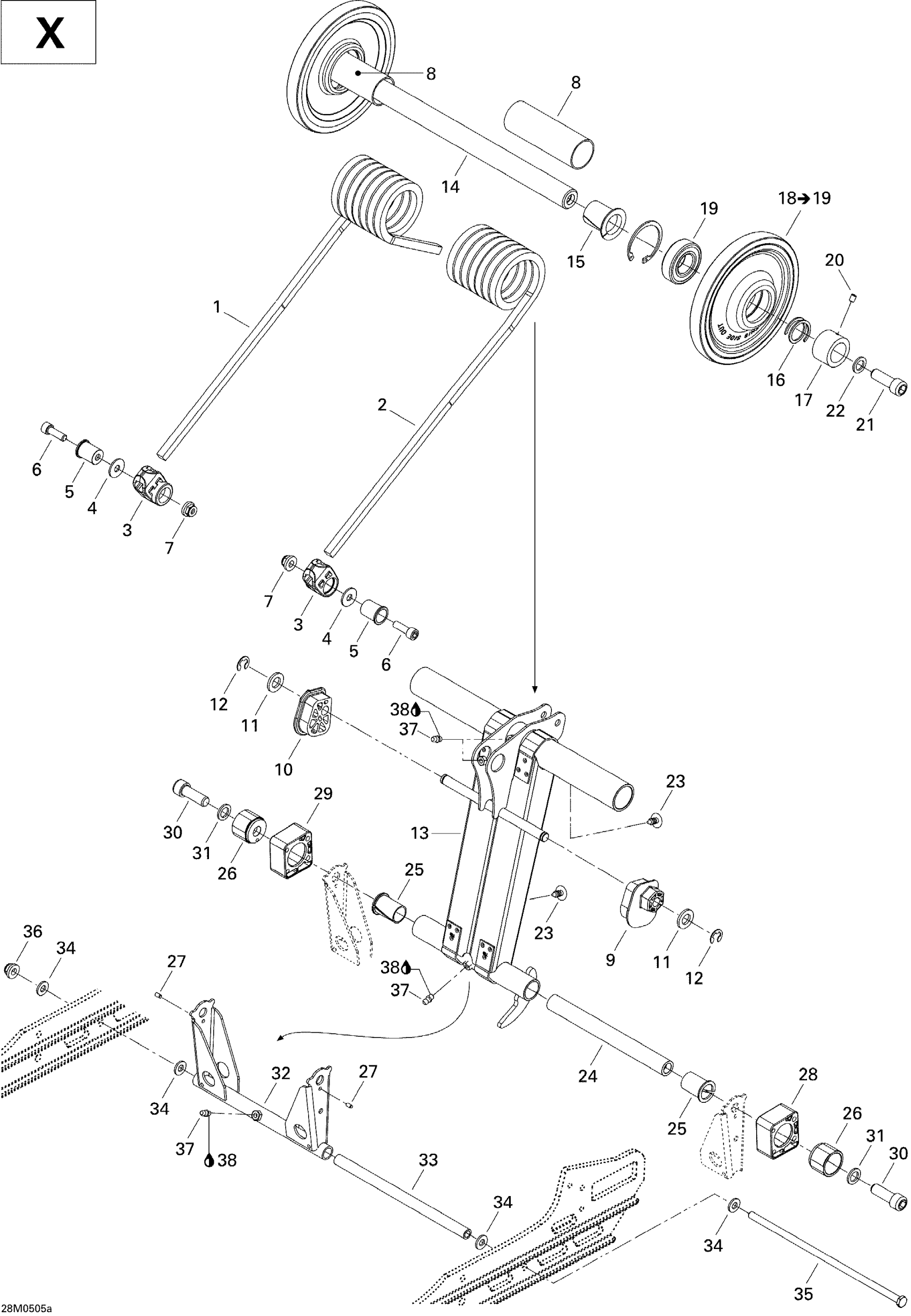

Ski-Doo MX Z 600 HO Trail & Adrenaline & X, 2005 Rear Arm X Diagram
#
Description
Price
1
RH Spring
503191287
Unavailable
2
LH Spring
503191289
Unavailable
3
SPRING SUPPORT - Call your local BRP dealership
503190583
Unavailable
5
Spring Support Kit
861805547
Unavailable
6
Socket Head Screw M8 X 25
205082544
Unavailable
7
Hex. Flange Elastic Nut M8
233281414
Unavailable
8
Plastic Bushing
503191041
Unavailable
9
LH CAM ADJUSTER - Call your local BRP dealership
503190023
Unavailable
10
RH CAM ADJUSTER - Call your local BRP dealership
503190022
Unavailable
12
E-Circlip
293370013
Unavailable
13
Rear Arm
503191064
Unavailable
14
Upper Axle
503189412
Unavailable
15
CUSHION - Call your local BRP dealership
503190619
Unavailable
17
Retainer Ring
503189147
Unavailable
18
WHEEL 155 ASS'Y - Call your local BRP dealership | Includes 28 to 29
503191046
Unavailable
19
Ball Bearing
293350115
Unavailable
21
Socket Head Screw M12 X 35, Scotch Grip
205523544
Unavailable
22
Washer
503189276
Unavailable
26
Block Guide
503189488
Unavailable
27
Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership
250400005
Unavailable
28
LH Block, 4 Positions
503191563
Unavailable
29
RH Block, 4 Positions
503190622
Unavailable
30
Socket Head Screw M12 X 35, Scotch Grip
205523544
Unavailable
31
Washer | 7415/7416. 7417/7418.
503189148
Unavailable
32
Pivot Arm
503190684
Unavailable
33
Pivot Arm Axle
503189156
Unavailable
35
Bolt M8 X 248mm
503192440
Unavailable
36
Hex. Flange Elastic Nut M8
233281414
Unavailable
37
Grease Fitting
408200700
Unavailable
38
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
