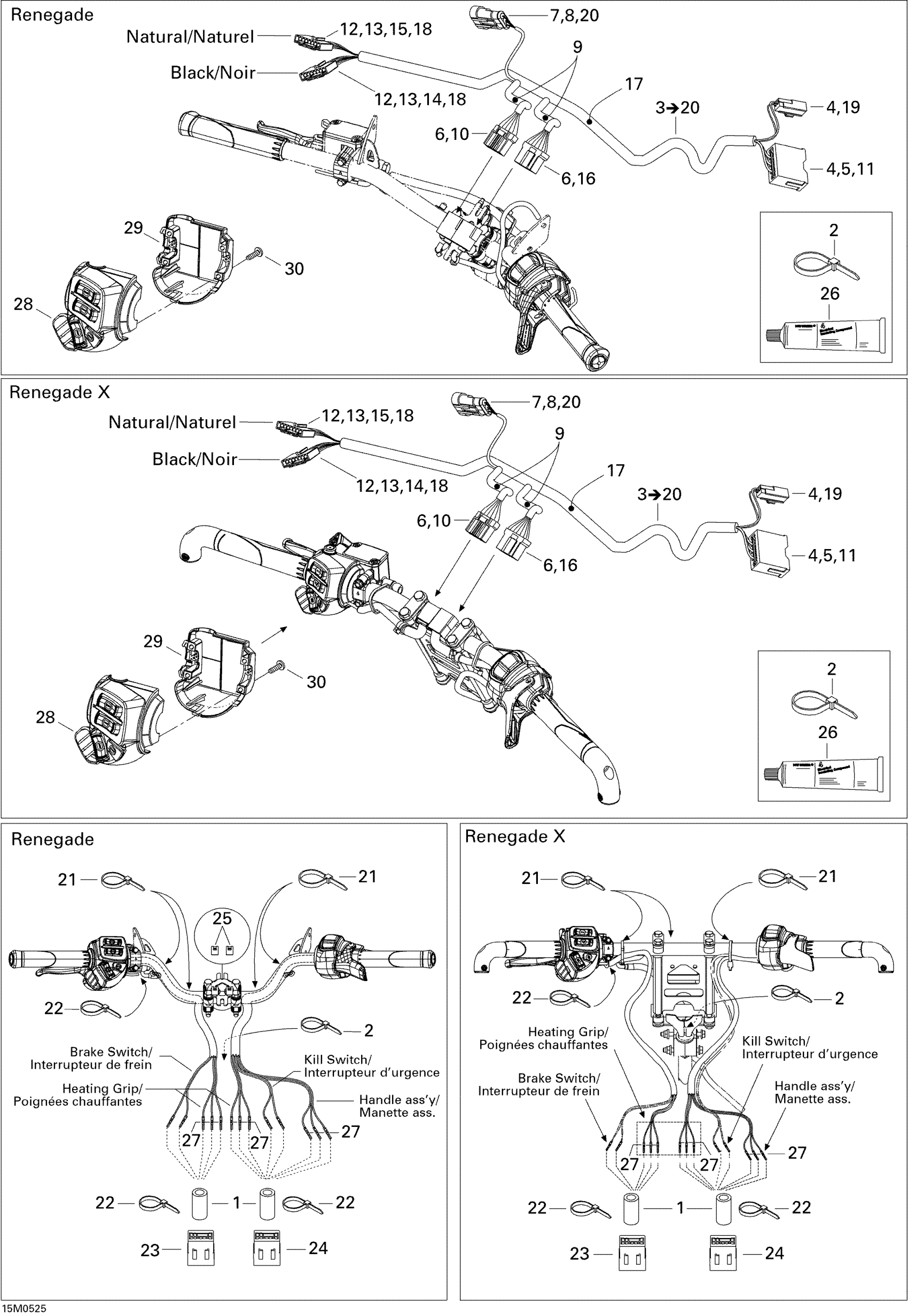

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Steering Wiring Harness Diagram

#

Description
Price

1

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

$37.66

2

Tie Wrap 368 mm

293750008

$0.85

3

STEERING WIRING HARNESS - Call your local BRP dealership | Includes 3 to 20

515176207

Unavailable

3

Steering Wiring Harness | Includes 3 to 20

515176281

Unavailable

4

Male Terminal

515175232

$1.49

5

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

6

Female Terminal

515175231

$4.12

7

Housing

710000568

$10.83

8

Wire Seal

278001013

$2.72

9

Tubing 10 MM 1000MM Long

219704407

$2.20

10

Female Terminal Housing, 6 Circuits

515175543

$8.57

11

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

$13.69

12

FEMALE TERMINAL - Call your local BRP dealership

515175808

$5.74

13

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

$7.65

14

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

$2.69

15

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

16

Female Terminal Housing, 8 Circuits

515175819

$7.46

17

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

$37.66

18

Female Terminal

515175941

$2.48

19

Male Housing, 2 Circuits

710000667

$7.48

19

Male Terminal Housing, 2 Circuits

515175654

$7.48

20

Male Terminal

515176164

$6.43

21

Tie-Rap 180 mm

414115200

$0.09

22

Tie Wrap 142 mm

293750002

$0.88

23

Male Terminal Housing, 6 Circuits

515175662

$8.57

24

Male Terminal Housing, 8 Circuits

515175817

$8.57

25

HOUSING SUPPORT - Call your local BRP dealership

515175944

$9.42

26

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

27

Male Terminal

515175232

$1.49

28

LH SWITCH HOUSING - Call your local BRP dealership

515176015

Unavailable

29

Switch Housing Plate

515175926

$17.66

30

Torx Screw #8-18

250000263

$1.02
