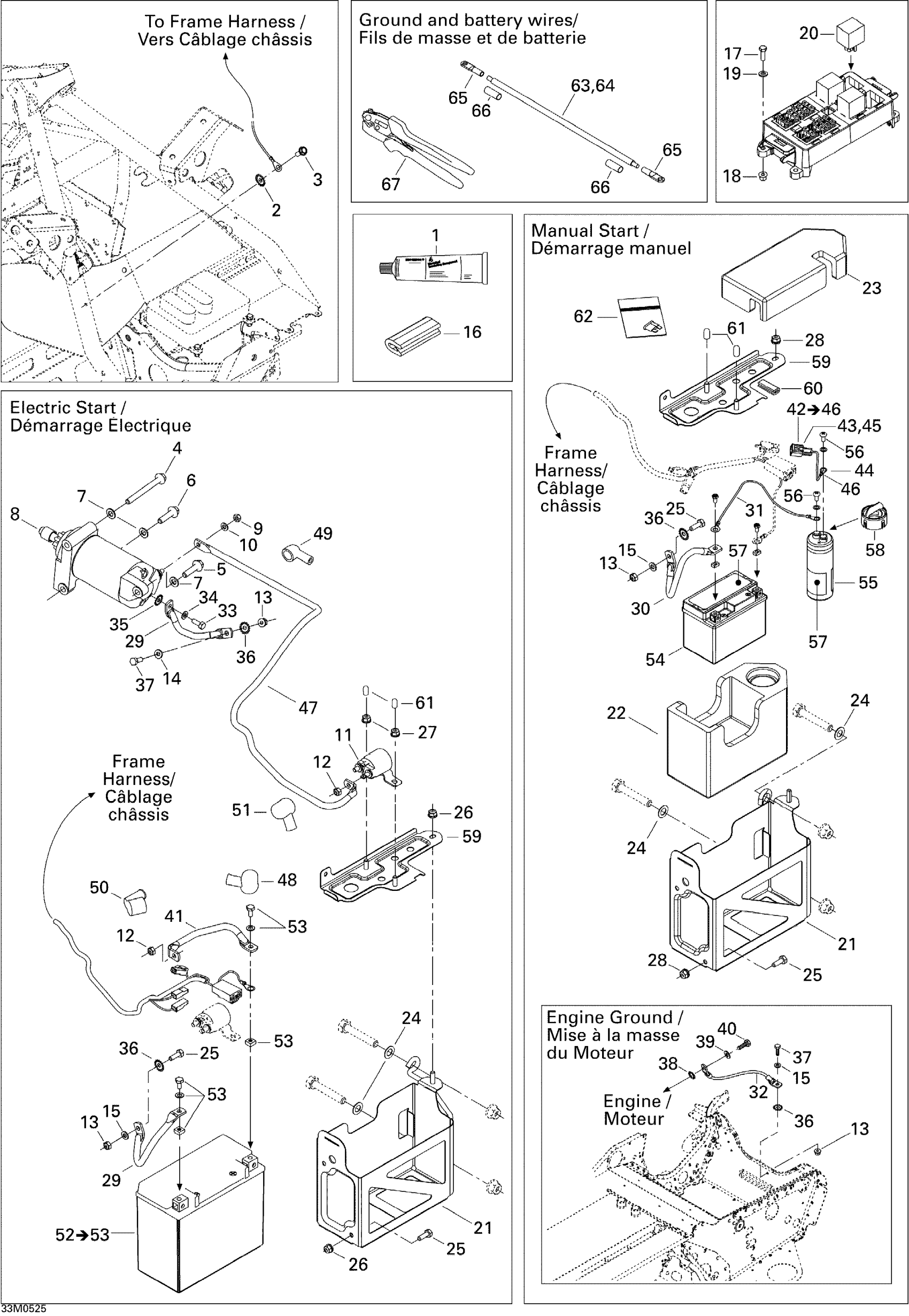

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Electrical System Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

2

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

$0.17

3

Hex. Flange Screw M6 X 12

210261250

$1.56

4

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$7.80

5

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

6

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

7

Flat Washer With Teflon 8 mm

250200008

$3.12

8

Electric Starter Ass'y

515176133

$319.49

9

Elastic Stop Nut M6

232561414

$1.55

10

Flat Washer 6 mm

234061410

$1.04

11

Starter Relay

515176011

$51.97

12

Elastic Stop Nut M6

232561414

$1.55

13

Elastic Stop Nut M6

232561414

$1.55

14

Flat Washer 6 mm

234061410

$1.04

15

Flat Washer 6 mm

234061410

$1.04

16

Was 271000110 Protection Trim

219704353

$15.03

17

Hex. Screw M5 X 20

207152044

$0.88

18

Hex. Flange Elastic Nut M5

233251414

$1.66

19

Flat Washer M5

234051410

$0.44

20

Relais *Relay This part replaces 410113604.

515177672

$37.67

21

Battery Support Black

515176230

Unavailable

22

CAPACITOR SUPPORT - Call your local BRP dealership | Manual Start

515176190

$13.43

23

COVER - Call your local BRP dealership | Manual Start

515176114

Unavailable

24

Washer

503175800

$3.26

25

Hex. Screw M6 X 18

207161844

$0.62

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

29

Ground Wire

515175749

$19.20

30

Ground Wire

515175749

$19.20

31

GROUND HARNESS, CAPACITOR - Call your local BRP dealership | Manual Start

515176119

Unavailable

32

BATTERY ASSISTED GROUND CABLE - Call your local BRP dealership | Manual Start

515176276

$7.09

33

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.82

34

Flat Washer 6 mm

234061410

$1.04

35

Lock Washer Serrated M6

250200041

$0.92

36

Lock Washer Serrated M6

250200041

$0.92

37

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

38

Serrated Lock Washer 8 mm

234481608

$1.09

39

Flat Washer 8 mm

234081410

$0.69

40

Hex. Screw M8 x 16

207181644

$0.87

41

Battery Wire

515175904

$18.43

42

CAPACITOR HARNESS - Call your local BRP dealership | Manual Start, Includes 36 to 39

515176120

$11.28

43

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

44

Ring Terminal

515175504

$7.48

45

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

$4.77

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Protection Cap

570151000

$18.43

49

PROTECTOR CAP - Call your local BRP dealership

278001771

$4.86

50

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

51

Protector Cap | XT

515175919

$16.89

52

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

53

Battery Bolt Kit

250000282

$2.95

54

Battery 12 Volt 4 Ah

415130961

Unavailable

55

CAPACITOR - Call your local BRP dealership

515176387

Unavailable

56

Mechanical Screw | Manual Start

515176257

$0.75

57

CAPACITOR DECAL - Call your local BRP dealership

516002976

Unavailable

58

CAP - Call your local BRP dealership

515176211

$4.58

59

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

60

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

61

Cap

515176141

$2.91

62

Not Available As Spare Part - Friction Washer

Unavailable

63

Ground Cable Battery, no 6, meter)

278001680

Unavailable

64

Cable Battery, no 6, meter)

278001690

Unavailable

65

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

Terminal 30°, 2 Holes

278001776

Unavailable

66

Was 710000483 Heat Shrink Tubing

219704447

$74.58

67

Crimp Plier

529035730

Unavailable
