Description

Price

1

Frame Harness Ass'y | Includes 1 to 1002

515176212

Unavailable

34

Female Terminal

409010100

$5.46

36

Female Terminal Housing, 1 Circuit

409010400

$7.48

42

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

44

Female Terminal

515175231

$4.12

46

Female Terminal

515175282

$6.43

54

Female Housing, 3 Circuits

515175495

$15.35

57

Female Terminal Housing, 13 Circuits

515175350

$12.88

62

Female Terminal

278001014

$2.72

68

Female Housing, 2 Circuits

409209500

$13.48

73

Wire Seal

278001013

$2.72

99

Open Barrel

278000992

$1.79

110

Male Terminal

278000631

$4.12

112

Female Terminal

278000632

$1.69

118

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001742

Unavailable

127

Male Lock, 3 Circuits

409207600

$3.02

130

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

138

Sealing Cap

293000052

$2.55

172

Female Terminal

561503100

Unavailable

176

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

191

Fuse, 30 Amperes

410917200

$3.22

192

Fuse, 20 Amperes

409003900

$3.22

194

Fuse, 10 Amperes | North America

278001197

$1.79

196

Tie Wrap 142 mm

293750002

$0.88

206

Female Terminal

409004200

$4.42

222

Female Housing

409204300

Unavailable

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

248

Fuse Holder

409004000

$7.00

251

CLIP - Call your local BRP dealership

409014200

$4.23

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

255

Was 409901800 Tubing (13 mm)

219704400

$9.40

256

Tubing 16 Mm 1000Mm Long

219704408

$6.23

257

Was 409901600 Tubing 19mm

219704398

$89.97

258

Tubing 10 MM 1000MM Long

219704407

$2.20

302

Tie Wrap 94 mm | 4X4

293750001

$0.83

307

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

$4.77

308

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

$4.77

317

Female Terminal Housing, 4 Circuits

278001473

$25.35

320

Female Terminal

515175567

$6.03

341

Not Available As Spare Part - Friction Washer

Unavailable

351

Female Lock, 4 Circuits

278001474

$3.02

355

Female Housing, 2 Circuits

515175658

$15.35

359

Male Housing

515175666

$13.05

363

Female Terminal Housing, 2 Circuits

515175670

$7.85

366

Male Housing, 6 Circuits

515175673

$13.05

368

Female Lock, 2 Circuits

515175675

$4.42

371

Male Wedge, 6 Circuits

515175678

$5.11

377

Fuse, 5 Amperes | CE

278000344

$3.22

387

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

409

Plug

515175812

$1.70

410

Female Housing, 24 Circuits

515175801

$9.00

411

Retainer Block

515175802

$10.66

412

Wire Seal

515175803

$2.41

413

BLOCK - Call your local BRP dealership

515175804

$6.66

415

Female Terminal

515175806

$0.81

420

Tie-Rap 180 mm

414115200

$0.09

430

FUSE HOLDER - Call your local BRP dealership

515175857

Unavailable

431

RELAY HOLDER - Call your local BRP dealership

515175856

$7.89

432

FEMALE TERMINAL - Call your local BRP dealership

515175855

$5.51

433

FEMALE TERMINAL - Call your local BRP dealership

515175854

$7.09

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$7.48

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

$5.31

441

Relais *Relay This part replaces 410113604.

515177672

$37.67

481

Female Terminal Housing, 2 Circuits

415128500

$6.31

593

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515176069

$3.17

900

FUSE BOX BASE - Call your local BRP dealership

515176065

$21.51

1000

COVER - Call your local BRP dealership

515176066

$14.63

1001

Fuse Decal

516002640

Unavailable

1002

FUSE TOOL - Call your local BRP dealership

515175811

$6.62

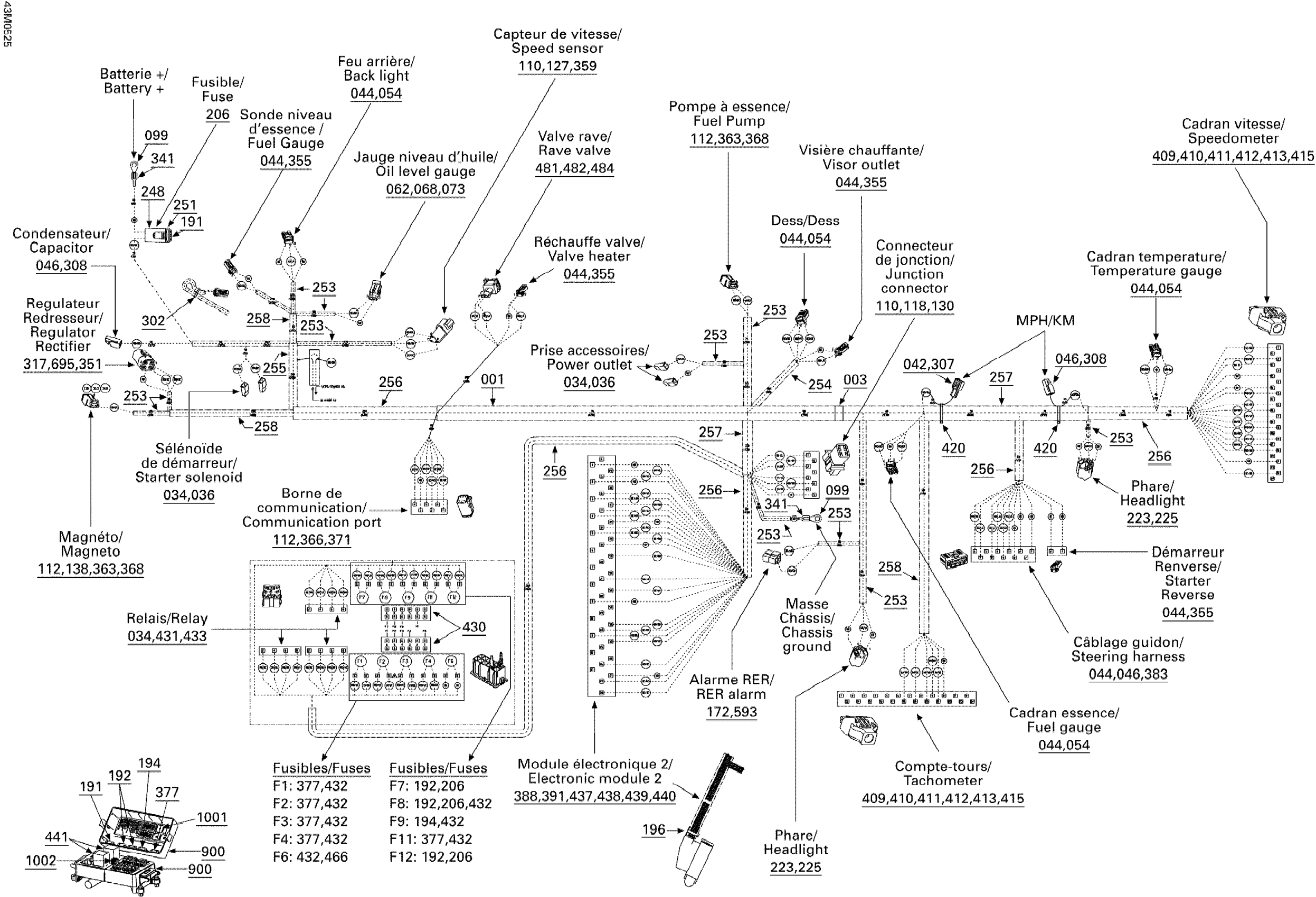

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Electrical Harness Diagram

Frame Harness Ass'y | Includes 1 to 1002

MALE TERMINAL - Call your local BRP dealership

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

Female Terminal

OPEN BARREL - Call your local BRP dealership

Female Housing

FEMALE TERMINAL - Call your local BRP dealership

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

Not Available As Spare Part - Friction Washer

FEMALE TERMINAL - Call your local BRP dealership

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

FUSE HOLDER - Call your local BRP dealership

SEAL - Call your local BRP dealership

LOCK - Call your local BRP dealership

Fuse Decal
