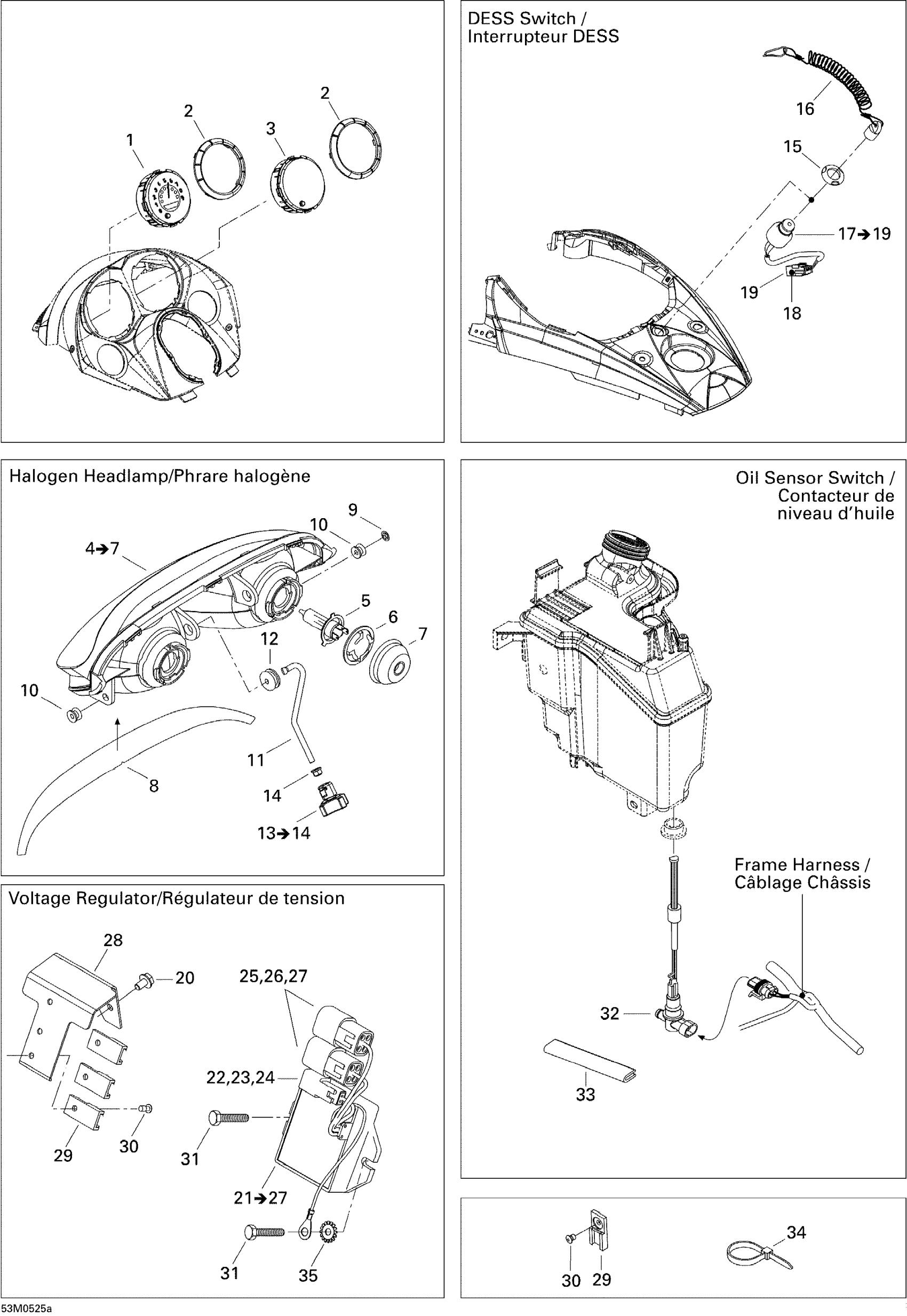

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Electrical Accessories 1 Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership

515176244

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$12.69

3

Tachometer

515176275

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$288.43

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

6

BULB HOLDER - Call your local BRP dealership

515176385

$9.57

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

HEADLAMP DECAL - Call your local BRP dealership

516001328

$3.82

9

Push Nut

732610072

$1.72

10

HEADLAMP BUSHING - Call your local BRP dealership

515175760

$5.51

11

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

12

Grommet - Call your local BRP dealership

415100800

$3.97

13

HANDLE - Call your local BRP dealership

515175975

$7.60

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Safety Nut (DESS Switch)

278002963

$2.72

16

DESS

515178284

$81.51

17

DESS Switch

515177249

$106.12

18

Male Terminal

515175232

$1.49

19

Male Housing, 3 Circuits

515175494

$15.35

20

Hex. Forming Screw M6 X 10

210261050

$1.42

21

Voltage Regulator | Includes 32 to 38

515176243

$345.35

22

Male Housing, 2 Circuits

409206900

$8.98

23

Male Terminal

278000631

$4.12

24

Male Lock, 2 Circuits

409207500

$3.02

25

Female Housing, 4 Circuits

278000635

$14.02

26

Male Terminal

515175568

$7.48

27

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

$2.86

28

HOUSING SUPPORT - Call your local BRP dealership

515176191

Unavailable

29

Clip

270000141

$8.33

30

Avdel Rivet 3/16"

293150037

$0.47

31

Hex. Flange Screw M6 X 16

210261650

$1.22

32

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

33

TRIM - Call your local BRP dealership

509000263

$5.35

34

Tie Wrap 368 mm

293750008

$0.85

35

Lock Washer Serrated M6

250200041

$0.92
