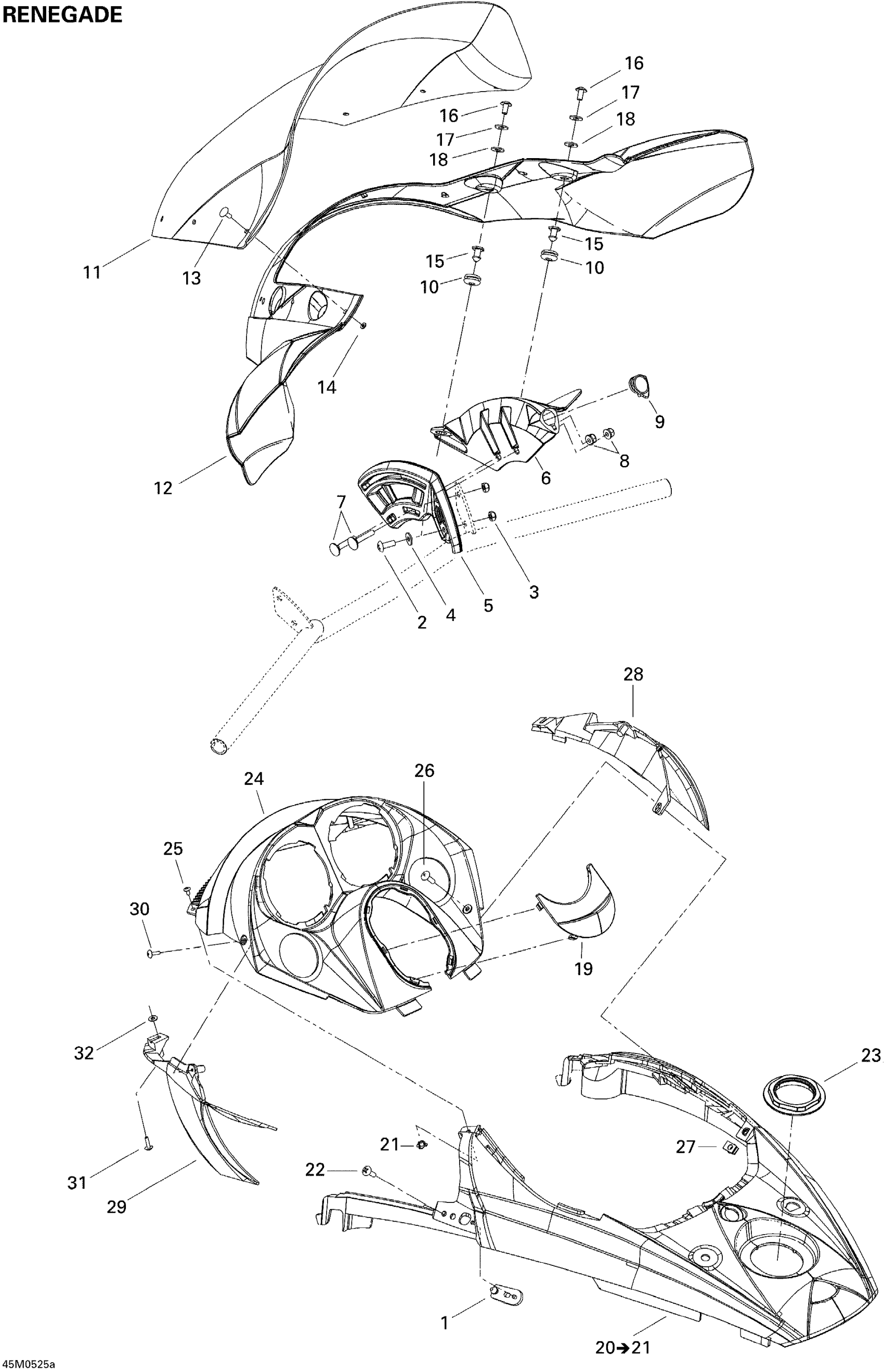

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Windshield And Console Renegade Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

$26.12

2

Torx Truss Screw M6 X 16

250000721

$1.39

3

Hex. Nut M6

250000135

$0.51

4

Flat Washer 6 mm

234062100

$1.03

5

RH Fixing Plate

517303076

Unavailable

5

LH Fixing Plate

517303078

Unavailable

6

RH WINDSHIELD SUPPORT - Call your local BRP dealership

517303077

Unavailable

6

LH WINDSHIELD SUPPORT - Call your local BRP dealership

517303079

Unavailable

7

Carriage Bolt M6 X 35

207763554

$1.70

8

Hex. Flange Elastic Nut M6

233261494

$1.26

9

CAP - Call your local BRP dealership

517302806

$6.12

10

Grommet

517302841

$2.22

11

Windshield, Medium

517302443

$124.58

12

Air Deflector

517302816

$94.58

13

Windshield Dart

517303070

$0.86

14

Push Nut

250100034

$1.11

15

Knob

517303439

$3.73

16

Torx Screw K50 X 16

250000720

$1.39

17

Washer M5

250200025

$0.61

18

Rubber Washer 5 mm

250200024

$1.77

19

CONSOLE CAP - Call your local BRP dealership

517302592

$9.22

20

Center Console | Includes 11 to 12

517303066

Unavailable

21

T-NUT, M4 - Call your local BRP dealership

250100030

$6.31

22

Torx Screw M6 X 20

250000722

$1.34

23

CONSOLE NUT - Call your local BRP dealership

517302575

$7.66

24

Indicator Support | Sport

517303471

Unavailable

25

Torx Screw M4 X 8

250000127

$1.09

26

Torx Screw M5 X 20

250000724

$1.39

27

Panel Nut M5 X 0.8

250000958

$3.48

28

RH AIR DEFLECTOR - Call your local BRP dealership

517302546

$16.89

29

LH AIR DEFLECTOR - Call your local BRP dealership

517302547

Unavailable

30

Phillips Screw K40 X 16

250000723

$0.81

31

Screw M4 X 16

250000725

$2.87

32

Flat Washer 4 mm, Stainless

234042600

$0.92
