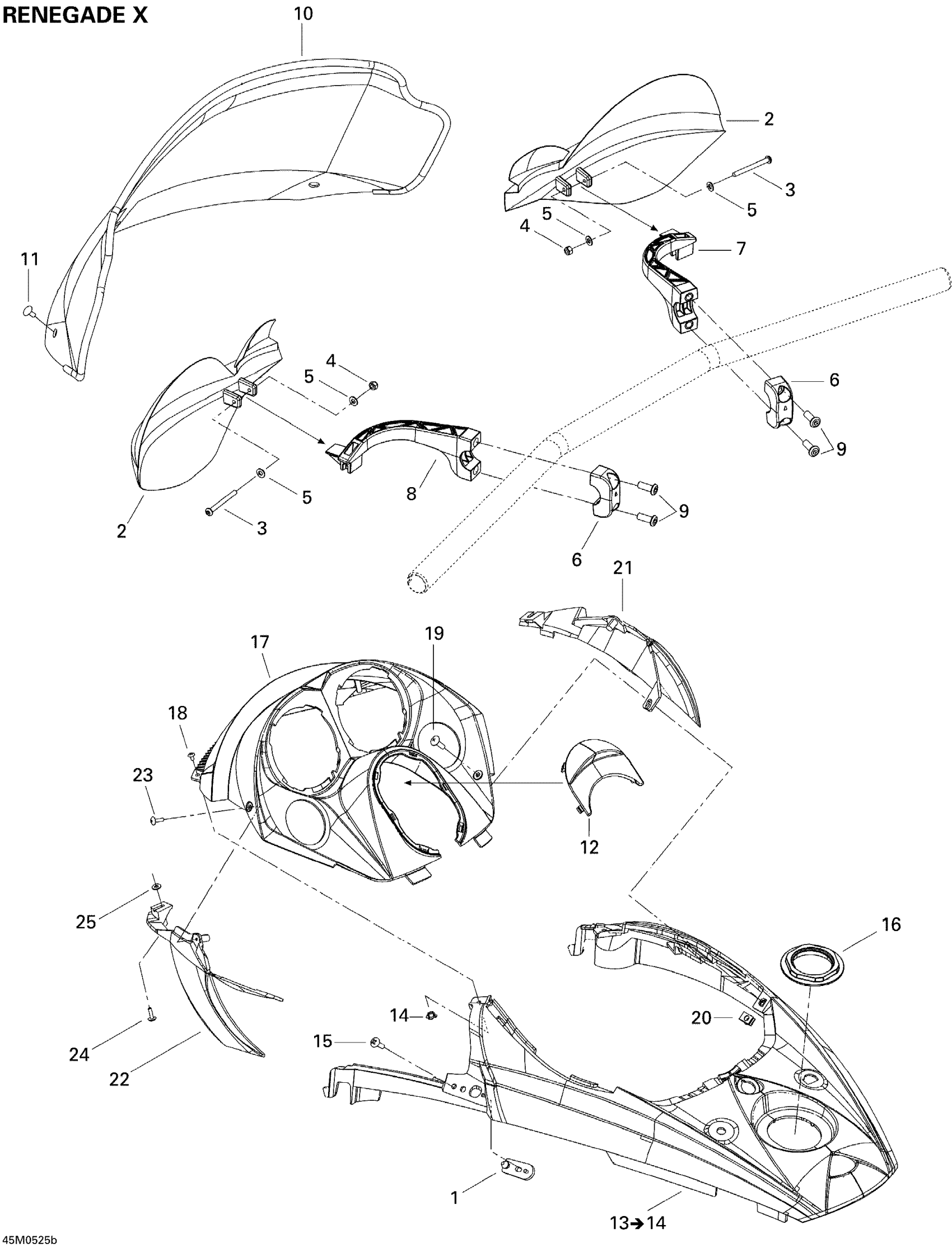

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Windshield And Console Renegade X Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

$26.12

2

Air Deflector Kit, Yellow

415128768

Unavailable

3

Socket Head Screw M4 X 40 | X

205444086

$1.42

4

Elastic Stop Nut M4

232541484

$0.61

5

Flat Washer 4 mm

234041480

$0.61

6

U-Clamp | XT

517303264

$11.43

7

RH DEFLECTOR SUPPORT - Call your local BRP dealership

517303590

$11.17

8

LH DEFLECTOR SUPPORT - Call your local BRP dealership

517303591

$11.17

9

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

$1.14

10

LOW WINDSHIELD - Call your local BRP dealership

517303045

Unavailable

11

Tuflok Plastic Rivet

293150230

$1.21

12

CONSOLE CAP - Call your local BRP dealership

517302592

$9.22

13

Center Console | Includes 11 to 12

517303066

Unavailable

14

T-NUT, M4 - Call your local BRP dealership

250100030

$6.31

15

Torx Screw M6 X 20

250000722

$1.34

16

CONSOLE NUT - Call your local BRP dealership

517302575

$7.66

17

INDICATOR SUPPORT - Call your local BRP dealership

517303472

$28.43

18

Torx Screw M4 X 8

250000127

$1.09

19

Torx Screw M5 X 20

250000724

$1.39

20

Panel Nut M5 X 0.8

250000958

$3.48

21

RH Air Deflector

517302798

Unavailable

22

LH AIR DEFLECTOR - Call your local BRP dealership

517302799

$16.89

23

Phillips Screw K40 X 16

250000723

$0.81

24

Screw M4 X 16

250000725

$2.87

25

Flat Washer 4 mm, Stainless

234042600

$0.92
