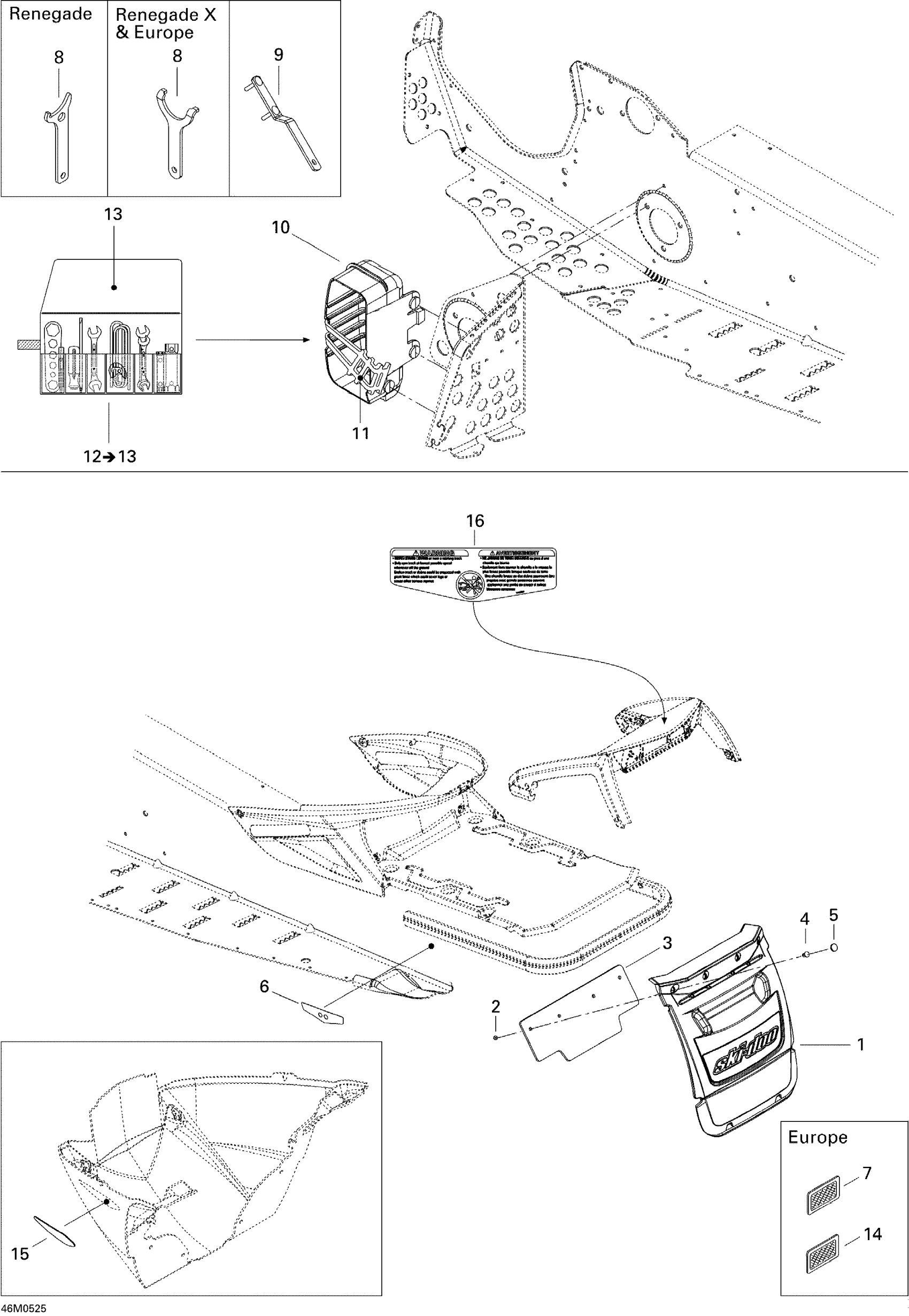

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Utilities Diagram

#

Description
Price

1

SNOW GUARD - Call your local BRP dealership

520000446

Unavailable

1

Snow Guard | Europe

520000452

Unavailable

2

Flat Washer

517225900

$0.16

3

SNOW GUARD REINFORCEMENT - Call your local BRP dealership

520000488

Unavailable

4

Pop Rivet 3/16”

293150087

$0.90

5

Black, Cap

277000203

$7.48

6

REAR REFLECTOR - Call your local BRP dealership | Except Europe

520000382

Unavailable

6

REAR REFLECTOR - Call your local BRP dealership | Europe

520000383

Unavailable

7

Amber, Reflector

520000271

$18.63

8

Adjustment Wrench

529000035

$2.19

8

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

9

Adjustment Wrench | LT

520000126

$1.49

10

TRUNK - Call your local BRP dealership

520000322

Unavailable

11

LATCH - Call your local BRP dealership

570069700

Unavailable

12

Tool Kit | Includes 12 to 13

529035596

$28.99

13

Tool Bag

520000047

Unavailable

14

White, Reflector

415037900

$18.63

15

FRONT REFLECTOR - Call your local BRP dealership

516001336

Unavailable

16

Track Security Warning Label

516002832

Unavailable
