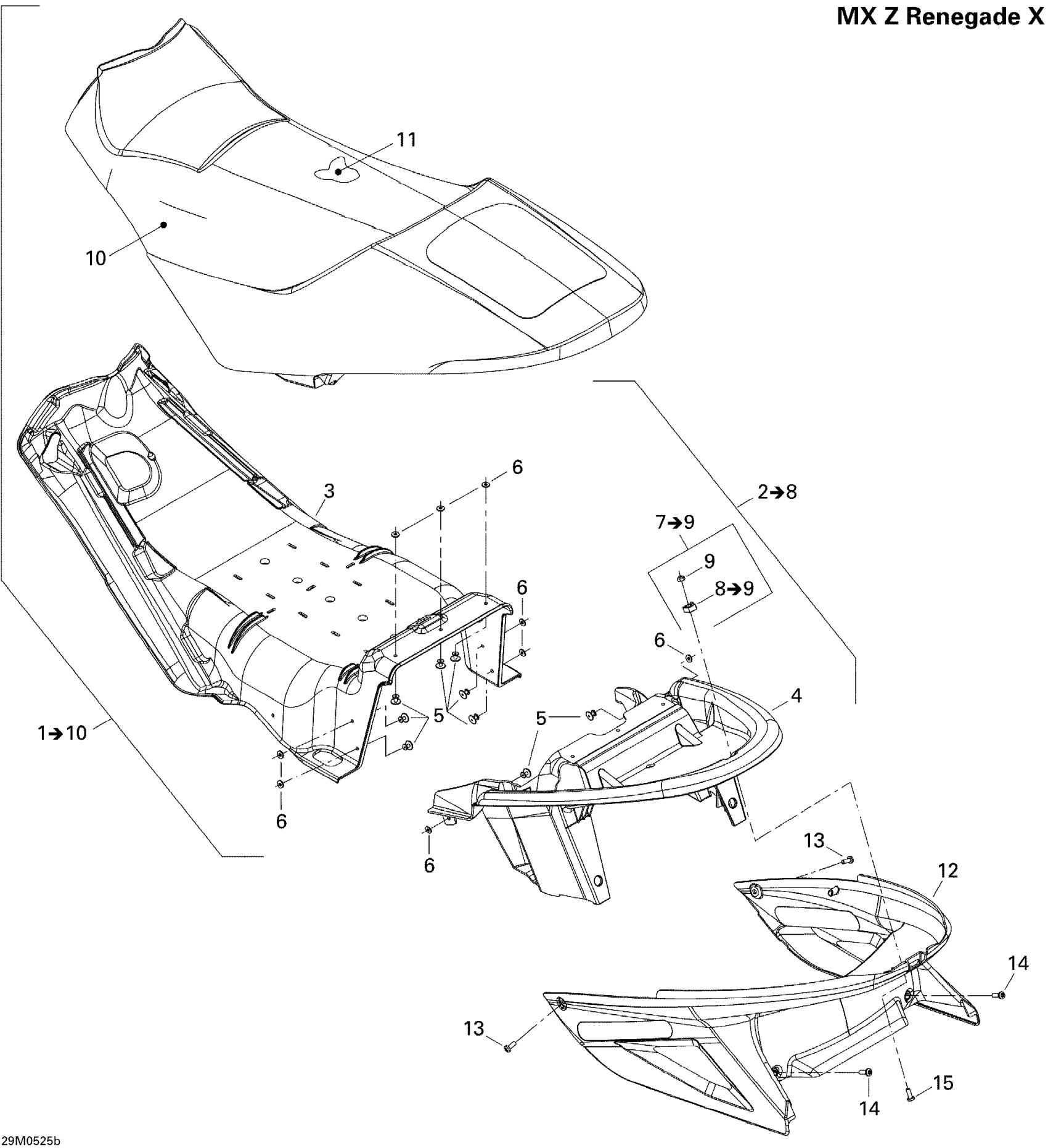

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Seat Renegade X Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

SEAT BASE ASS'Y - Call your local BRP dealership

510004582

$169.99

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

6

Flat Washer

517225900

$0.17

7

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

8

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

9

Hex. Nut M6

232061600

$0.91

10

Seat Cover | Black, B-160

510004491

$249.99

10

Seat Cover | Jaune, B-190

510004492

Unavailable

10

Seat Cover | Viper Red, B-176

510004493

Unavailable

11

Seat Foam

510004216

Unavailable

12

Deep Black, Trunk

510004230

Unavailable

13

Torx Truss Screw M6 X 16

250000721

$1.39

14

Torx Screw M6 X 20

250000722

$1.34

15

Torx Truss Screw M6 X 16

250000721

$1.39
