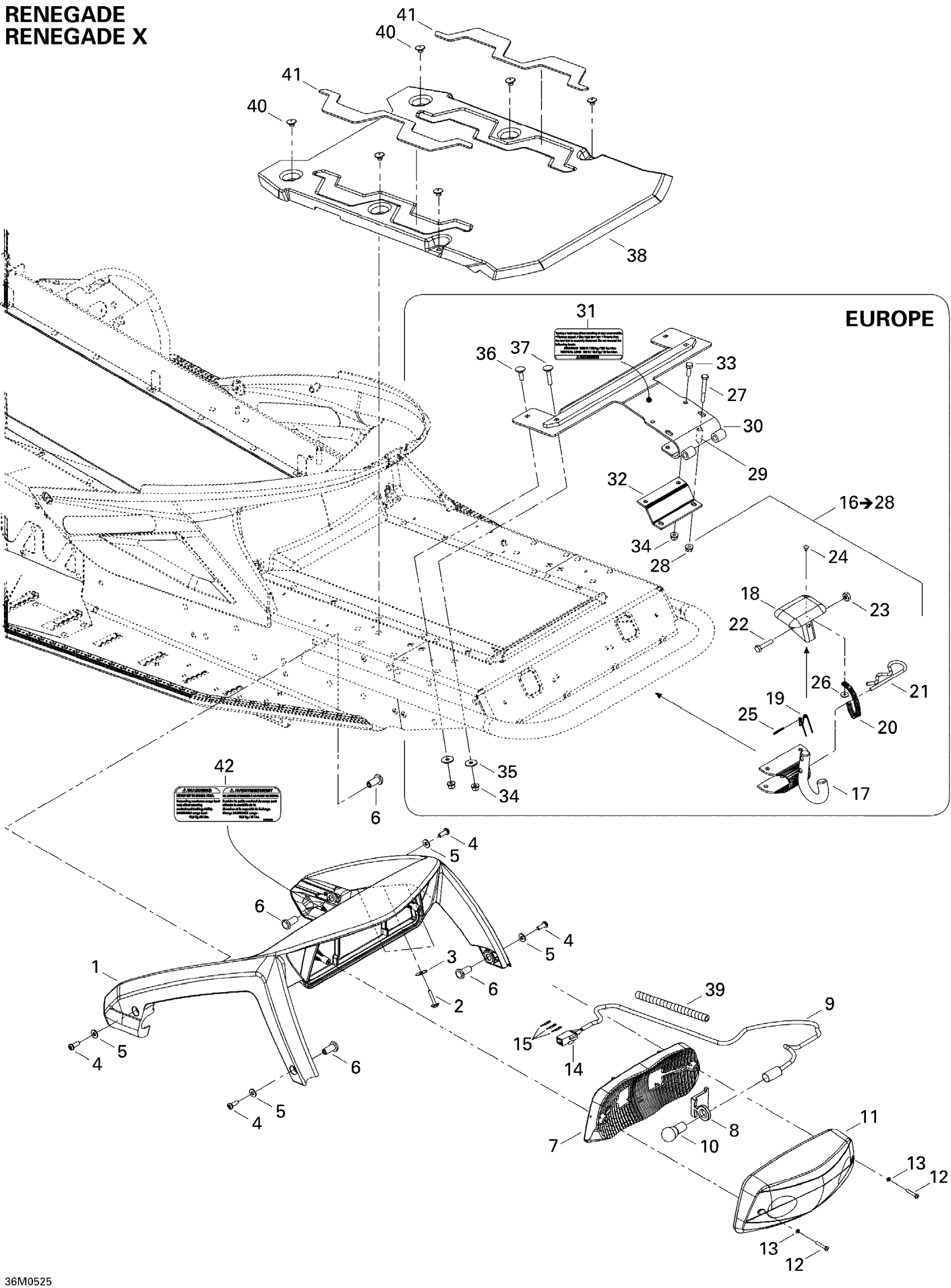

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Luggage Rack Diagram

#

Description
Price

1

Luggage Rack

511000425

Unavailable

1

Luggage Rack | Europe

511000424

Unavailable

2

Self Tapping Screw #8 X 5/8

250000202

$1.25

3

Flat Washer

250200040

$1.82

4

SOCKET SCREW M6 X 16 - Call your local BRP dealership

250000168

$1.20

5

Flat Washer

250200039

$0.72

6

Insert

511000260

Unavailable

7

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

8

BULB SUPPORT - Call your local BRP dealership

511000431

$8.77

9

Bulb Socket

511000428

$23.05

10

Bulb

520000758

$7.49

11

Lens

511000315

Unavailable

12

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

$4.17

13

Washer - Call your local BRP dealership

414516400

Unavailable

14

Male Housing, 3 Circuits

515175494

$15.35

15

Male Terminal

515175232

$1.49

16

HITCH ASS'Y KIT - Call your local BRP dealership | Europe, Includes 16 To 28

861789600

Unavailable

17

Hitch | Europe

517199300

Unavailable

18

Hitch Protector | Europe

517152700

Unavailable

19

SPRING - Call your local BRP dealership | Europe

517152800

$15.35

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Hair Pin

114045200

$10.69

22

Hex. Screw M6 X 30

207063044

$0.98

23

Elastic Stop Nut M6

232561414

$1.55

24

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

25

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

$2.37

26

Not Available As Spare Part - Friction Washer

Unavailable

27

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

$1.28

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

29

SPACER - Call your local BRP dealership | Europe

517191700

$11.17

30

FIXATION - Call your local BRP dealership

511000251

Unavailable

31

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

32

REINFORCEMENT - Call your local BRP dealership | Europe

511000022

Unavailable

33

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

35

Flat Washer

224061201

$1.11

36

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

37

Carriage Bolt M6 X 30

207763044

$3.61

38

RADIATOR COVER - Call your local BRP dealership

511000436

$23.82

38

Radiator Cover | Europe

511000437

Unavailable

39

Tubing 6 Mm 3000Mm Long

219704425

$13.14

40

Pop Rivet 3/16"

293150103

$0.54

41

Carpet

511000396

Unavailable

42

Warning Label, Maximum Cargo Load

516002666

Unavailable
