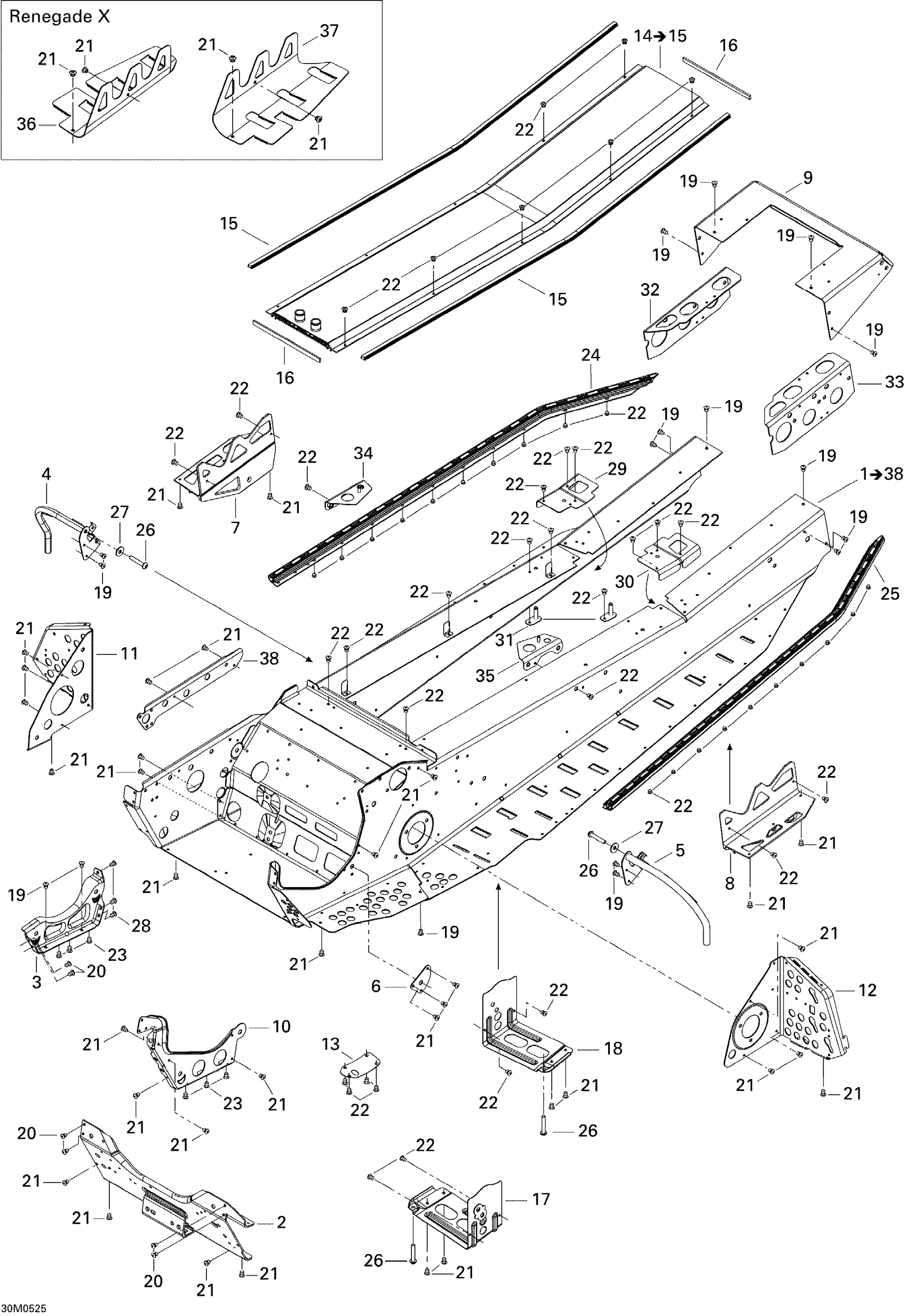

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Frame Diagram

#

Description
Price

1

Frame | Includes 1 to 38 / Renegate & Renegate X

415128922

Unavailable

2

FRONT PAN - Call your local BRP dealership

518323239

$55.35

3

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

$12.65

4

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

$36.12

5

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

6

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

$8.77

7

RH Slide Bracket

518324421

Unavailable

8

LH Slide Bracket

518324422

Unavailable

9

Rear Cap

518323734

Unavailable

10

INNER REINFORCEMENT, BLACK - Call your local BRP dealership

518323241

$15.02

11

RH Footrest Reinforcement

518323805

Unavailable

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

$17.66

13

PLATE - Call your local BRP dealership

518324169

$5.57

14

Rear Radiator | Includes 14 to 15

518324245

Unavailable

15

Radiator Protector

518324068

Unavailable

16

GASKET - Call your local BRP dealership

293200096

Unavailable

17

RH Reinforcement, Black

518324634

Unavailable

18

LH REINFORCEMENT, BLACK - Call your local BRP dealership

518324635

Unavailable

19

Avex Rivet

390909200

$0.29

20

Avex Rivet

390909100

$0.29

21

Pop Rivet 3/16"

390402200

$0.26

22

Pop Rivet 3/16"

390402400

$0.25

23

HENROB RIVET - Call your local BRP dealership

390910300

$0.54

24

RH Roller

518324083

Unavailable

25

LH Roller

518324084

$66.89

26

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

$1.94

27

Flat Washer 8 mm

234082410

$1.11

28

Hemlock Rivet, 6.5 mm

293150096

$3.17

29

RH FRAME REINFORCEMENT - Call your local BRP dealership

518324431

$7.89

30

LH FRAME REINFORCEMENT - Call your local BRP dealership

518324432

$7.97

31

Tank Bracket

518322791

Unavailable

32

RH Rear Reinforcement

518324411

Unavailable

33

LH Rear Reinforcement

518324412

Unavailable

34

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

$11.97

35

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

$11.97

36

RH Tunnel Liner

518323307

Unavailable

37

LH Tunnel Liner

518325269

$45.35

38

RH TUNNEL STIFFENER - Call your local BRP dealership

518323328

$8.86
