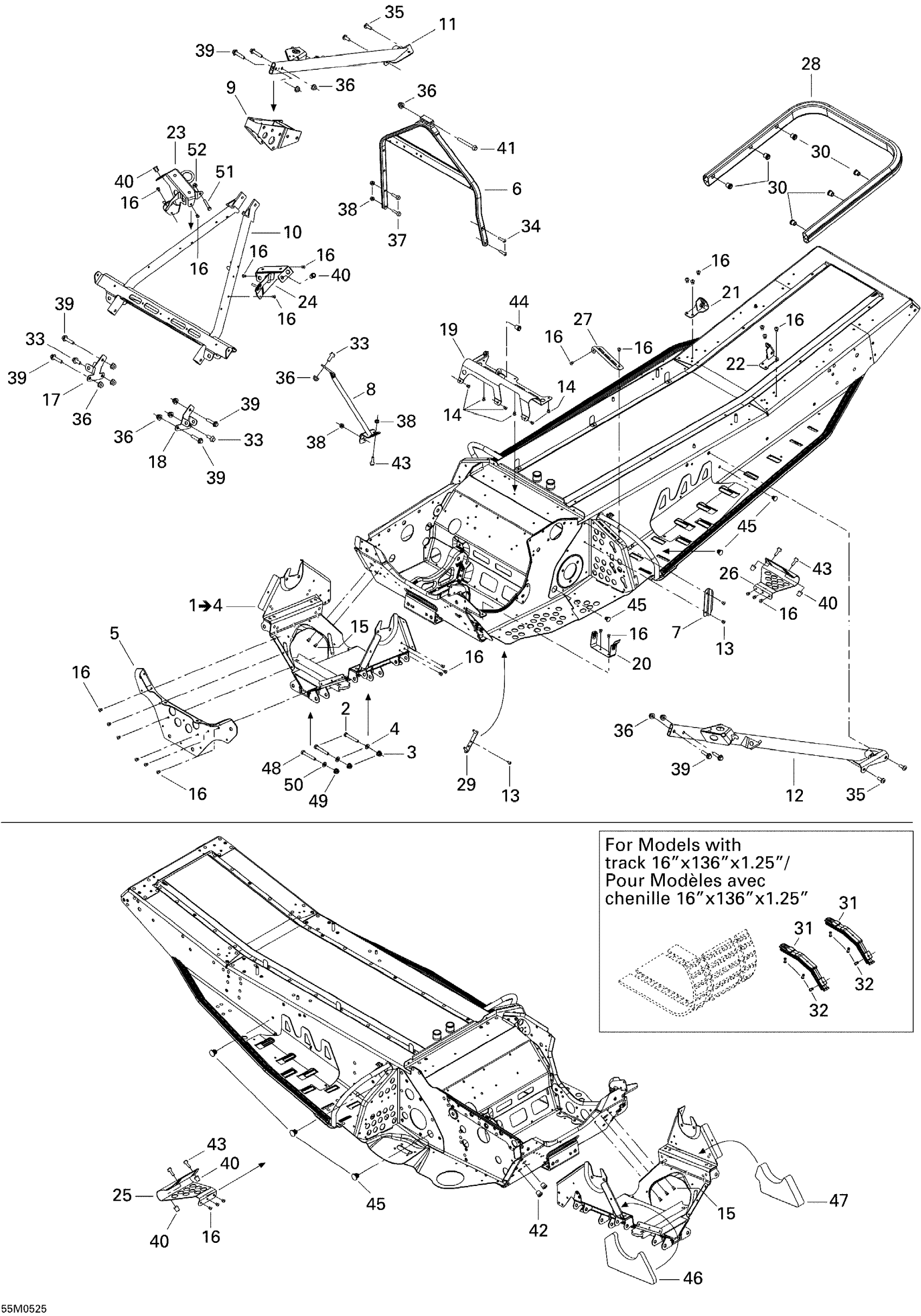

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Frame and Components Diagram

#

Description
Price

1

Cross Member | Includes 1 to 6

518325423

$489.97

2

Hex. Screw M8 X 55

207085544

$1.62

3

Hex. Flange Elastic Nut M8

233281414

$1.14

4

Flat Washer 8 mm

234081410

$0.69

5

Front Plate

518324726

Unavailable

6

HANDLE SUPPORT - Call your local BRP dealership

518324505

$146.12

7

CABLE PROTECTOR - Call your local BRP dealership

518317504

$4.77

8

BRACE, BLACK - Call your local BRP dealership

518323472

$18.43

9

Bracket Block

518323853

$55.35

9

BRACKET BLOCK - Call your local BRP dealership

518323854

$55.35

10

UPPER CROSS MEMBER - Call your local BRP dealership

518324739

$146.12

11

RH Member

518323352

Unavailable

12

LH MEMBER - Call your local BRP dealership

518323354

$76.12

13

Pop Rivet 3/16"

390402200

$0.26

14

Pop Rivet 3/16"

390402400

$0.25

15

Avex Rivet

390909100

$0.29

16

Avex Rivet

390909200

$0.29

17

RH SHOCK BRACKET - Call your local BRP dealership

518322461

$8.43

18

LH SHOCK BRACKET - Call your local BRP dealership

518322462

$8.43

19

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

$43.05

20

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

$11.85

21

RH BRACKET, BLACK - Call your local BRP dealership

518323769

Unavailable

22

LH BRACKET, BLACK - Call your local BRP dealership

518323770

$11.85

23

RH Console Support

518323535

Unavailable

24

LH Console Support

518323536

$38.43

25

RH TOE HOLD - Call your local BRP dealership

518324391

$12.28

26

LH TOE HOLD - Call your local BRP dealership

518324392

$13.43

27

PLATE, BLACK - Call your local BRP dealership

518323105

$7.89

28

Rear Bumper

518323778

Unavailable

28

REAR BUMPER, BLACK - Call your local BRP dealership | Europe

518324077

Unavailable

29

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

30

Hex. Screw M8 X 20

236282084

$1.48

31

Front Protector

518324071

Unavailable

32

Pop Rivet 3/16”

390410100

$0.54

33

Hex. Flange Screw M8 X 20

207682044

$0.92

34

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

35

Pan Head Torx Screw M8 X 12

250000887

$1.56

36

Hex. Flange Elastic Nut M8

233281414

$1.14

37

Hex. Flange Screw M6 X 25

207662544

$0.53

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

39

Hex. Flange Screw M8 X 35

207683544

$1.39

40

Insert

293450275

$9.89

41

Hex. Flange Screw M8 X 70

207687044

$6.11

42

Insert

293450166

$4.00

43

Hex. Flange Screw M6 X 20

207662044

$1.66

44

Threaded Insert M6 X 1.0

250100242

$2.54

45

Panel Fastener

518321954

$6.03

46

RH FRONT FOAM - Call your local BRP dealership

518323453

$8.68

47

LH FRONT FOAM - Call your local BRP dealership

518323007

$8.68

48

Hex. Screw M8 X 55

207085544

$1.62

49

Hex. Flange Elastic Nut M8

233281414

$1.14

50

Flat Washer 8 mm

234081410

$0.69

51

Hex. Flange Screw M6 X 35

207063544

$1.35

52

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
