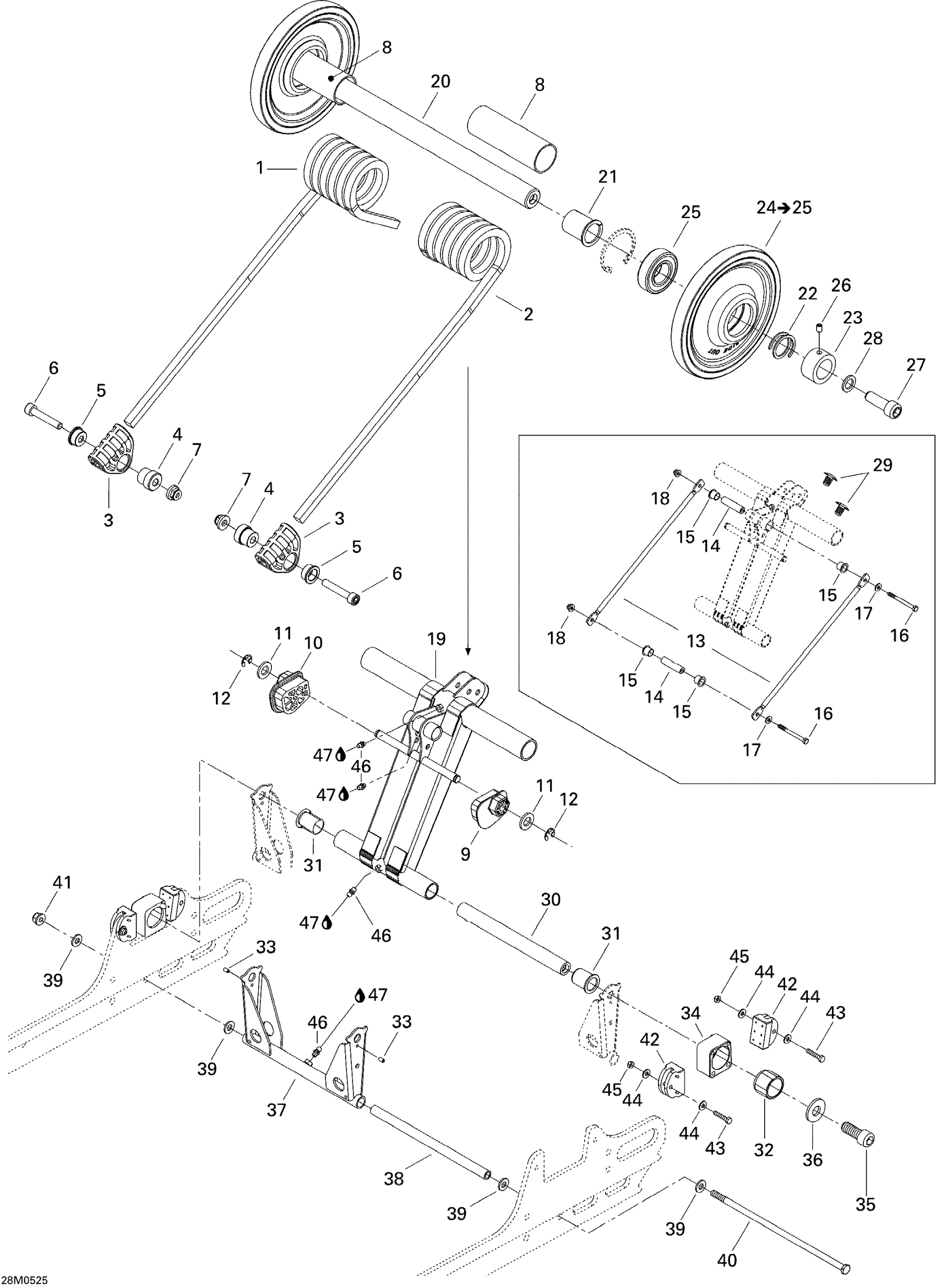

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Rear Arm Diagram

#

Description
Price

1

RH Spring | MX Z 380F (Europe)

503190483

Unavailable

1

RH SPRING, SQUARE - Call your local BRP dealership | SE

503190492

Unavailable

2

LH SPRING - Call your local BRP dealership | MX Z 380F (Europe)

503190485

$63.05

2

LH SPRING, SQUARE - Call your local BRP dealership | SE

503190494

$60.74

3

Spring Support

503189657

$10.20

4

Spring Guide Axle

503188934

Unavailable

5

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

6

Socket Head Screw M8 X 45

205084544

$0.74

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

PLASTIC BUSHING - Call your local BRP dealership

503189105

Unavailable

9

LH CAM ADJUSTER - Call your local BRP dealership

503190023

$9.29

10

RH CAM ADJUSTER - Call your local BRP dealership

503190022

$8.37

11

Flat Washer 12 mm

234021410

$0.68

12

E-Circlip

293370013

$0.62

13

THROTTLE ROD - Call your local BRP dealership

503190111

Unavailable

14

AXLE ROD - Call your local BRP dealership

503189815

Unavailable

15

Swivel Bushing

503191555

$5.71

16

Hex. Screw M8 X 90

207089044

$2.82

17

FLAT WASHER - Call your local BRP dealership

224081201

$0.70

18

Hex. Flange Elastic Nut M8

233281414

$1.14

19

REAR ARM - Call your local BRP dealership

503191068

$146.12

20

Upper Shaft

503190569

Unavailable

21

CUSHION - Call your local BRP dealership

503189288

$3.05

22

Axle Spring

503189146

$7.54

23

RETAINER RING - Call your local BRP dealership

503190570

Unavailable

24

Wheel 165 | Includes 3070 to 3070a

503190803

$49.97

25

Ball Bearing

293350115

$11.15

26

Socket Set Screw M6 X 8

206260844

$1.25

27

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

28

Washer | 7415/7416. 7417/7418.

503189148

$2.72

29

Black, Dart

414644300

$0.78

30

REAR LOWER AXLE - Call your local BRP dealership

503189413

$13.05

31

Cushion

503191640

$5.71

32

Block Guide

503189488

$37.66

33

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

$1.00

34

LH Block

503189152

Unavailable

34

RH Block

503189170

Unavailable

35

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

36

Washer

503189276

$3.20

37

PIVOT ARM - Call your local BRP dealership

503189819

$75.35

38

Pivot Arm Axle

503189156

$20.74

39

Washer

503189157

$3.20

40

Bolt M8 X 248mm

503192440

$29.97

41

Hex. Flange Elastic Nut M8

233281414

$1.14

42

Rubber Stopper

503191291

$18.43

43

Hex. Screw M5 X 30

207053044

$0.98

44

Washer

250200016

$0.72

45

Elastic Stop Nut M5

232551414

$0.72

46

Grease Fitting

408200700

$2.80

47

SYNTHETIC GREASE - Call your local BRP dealership

413711500

Unavailable
