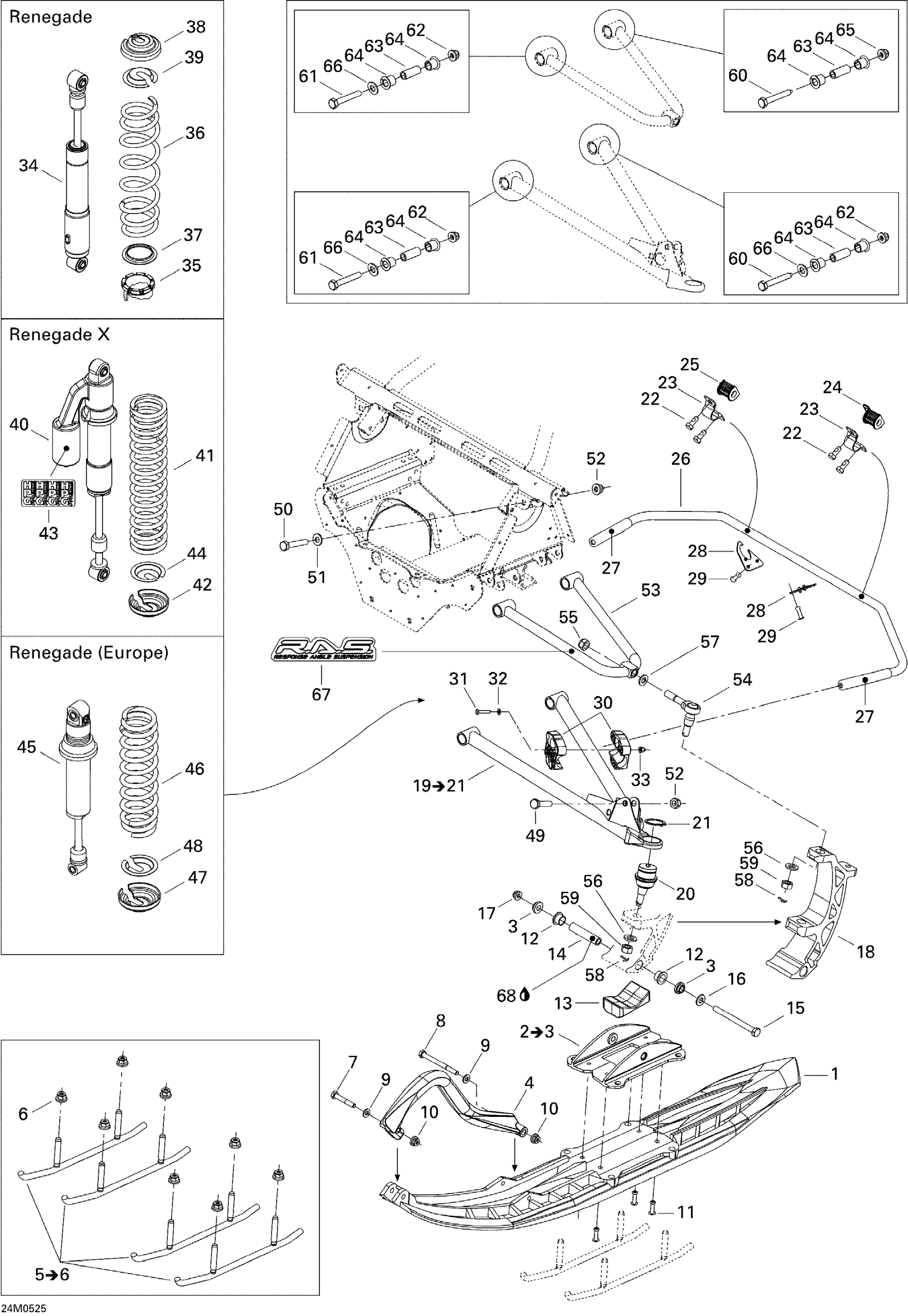

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Front Suspension And Ski Diagram

#

Description
Price

1

Deep Black, Precision Ski | Sport

505070727

Unavailable

2

Bridge Ass'y | Includes 2 to 3

505070764

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Yellow Handle | Model-MX-Z TNT

505070917

$41.51

4

Black, Handle

505070963

$35.35

4

Viper Red Handle

505071059

$36.89

5

Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.

860200148

$139.97

6

Hex. Flange Elastic Nut M10

233201414

$1.26

7

Hex. Screw M8 X 50

207085044

$1.25

8

Hex. Screw M8 X 90

207089044

$2.82

9

Flat Washer 8 mm

234081410

$0.69

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

12

Leg Bushing

505072690

Unavailable

13

Ski Stopper

505070671

Unavailable

14

Spacer

506133300

$19.97

15

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

$2.42

16

Washer

732900049

$0.57

17

Flange Nut M10

732610084

$5.49

18

SKI LEG - Call your local BRP dealership

505071232

$162.28

19

RH Lower Arm Ass'y | Includes 14 to 16

860510100

Unavailable

19

LH Lower Arm Ass'y | Includes 14 to 16

860510000

Unavailable

20

Ball Joint

505071658

Unavailable

21

Circlip

293370035

$2.55

22

Hex. Screw With Nylon

250000118

Unavailable

23

CLAMP - Call your local BRP dealership

506095800

$5.45

24

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

25

RH BUSHING - Call your local BRP dealership

505070912

$7.37

26

STABILISATOR - Call your local BRP dealership

505070948

$114.58

27

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

28

PLUG - Call your local BRP dealership

505071253

Unavailable

29

Pop Rivet 3/16"

293150103

$0.54

30

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

30

LH SLIDER HALF - Call your local BRP dealership

505071269

$9.08

31

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

32

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

33

Hex. Flange Elastic Nut M5

233251414

$1.66

34

Front Shock | GSX Ltd

505071224

Unavailable

35

Adjustment Cam

505073625

$12.18

36

Spring

505071257

Unavailable

37

Spring Guide

503191872

$2.18

38

Spring Stopper

706200881

$10.30

39

Cap

706200785

$4.42

40

RH FRONT SHOCK - Call your local BRP dealership | X

505071301

Unavailable

40

LH Front Shock | X

505071300

Unavailable

41

SPRING - Call your local BRP dealership | X, Adrenaline Europe, Trail Europe, X Europe

505071388

Unavailable

42

Spring Stopper

706200881

$10.30

43

Shock Decal | X

516002748

Unavailable

44

Cap

706200785

$4.42

45

Front Shock | 380F Europe

505071557

Unavailable

46

Spring | 380F Europe

505071196

Unavailable

47

Spring Stopper

706200881

$10.30

48

Cap

706200785

$4.42

49

Hex. Screw M10 X 55

207005544

$1.85

50

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

51

Washer

503189564

$0.72

52

Hex. Flange Elastic Nut M10

233201414

$1.26

53

UPPER ARM - Call your local BRP dealership

505071727

Unavailable

54

Upper Ball Joint

505072257

$16.89

55

Hex. Flange Elastic Nut M12

250000047

$1.56

56

Flat Washer 12 mm

234021410

$0.68

57

Washer

503189276

$3.20

58

Cotter Pin

211400017

$0.25

59

Hex. Castellated Nut M12

232221414

$2.61

60

Hex. Screw M10 X 75

250001063

$9.74

61

Hex. Screw M10 X 75

250001063

$9.74

62

Hex. Flange Elastic Nut M10

250100165

$0.70

63

Bushing

505070567

$19.97

64

Arm Bushing

505070566

$3.14

65

Elastic Flange Nut M10

232501416

$1.25

66

Washer

503189564

$0.72

67

R.a.s. Suspension Decal

516002747

Unavailable

68

SYNTHETIC GREASE - Call your local BRP dealership

413711500

Unavailable
