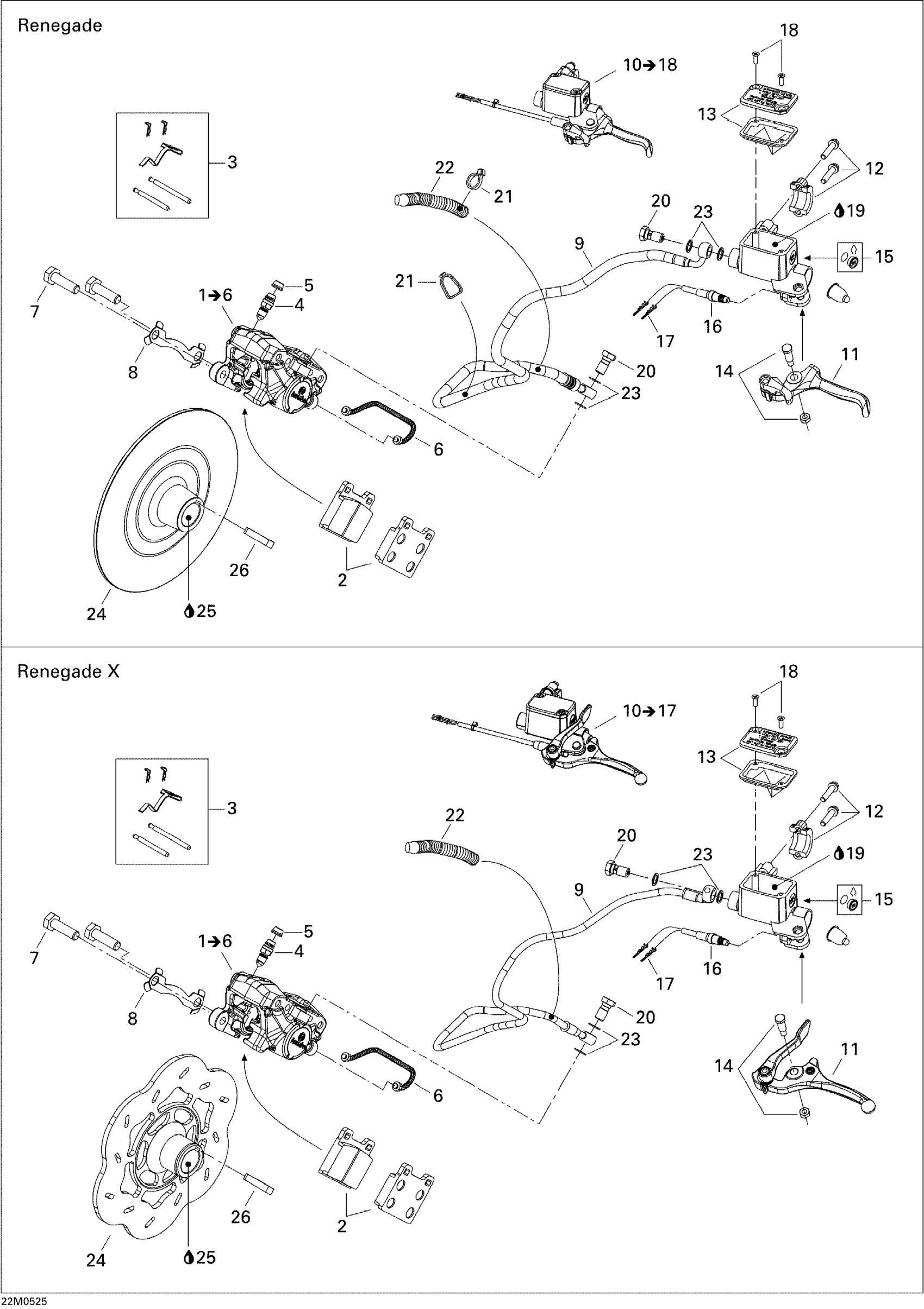

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Hydraulic Brake Diagram
#
Description
Price
1
Caliper | Includes 1 to 6
507032414
Unavailable
1
CALIPER - Call your local BRP dealership | LTD, Includes 1 to 6
507032415
Unavailable
3
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
415128865
Unavailable
4
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
5
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
6
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
9
HOSE - Call your local BRP dealership
507032384
Unavailable
9
HOSE - Call your local BRP dealership
507032385
Unavailable
10
Master Cylinder | Includes 10 to 16
507032362
Unavailable
10
Master Cylinder | Includes 9 to 17
507032407
Unavailable
15
WINDOW - Call your local BRP dealership
414990600
Unavailable
19
BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership
293600063
Unavailable
19
HYDRAULIC OIL - Call your local BRP dealership
293600131
Unavailable
24
BRAKE DISK - Call your local BRP dealership
507032395
Unavailable
24
Brake Disk
507032403
Unavailable
25
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
26
KEY - Call your local BRP dealership
507021300
Unavailable
