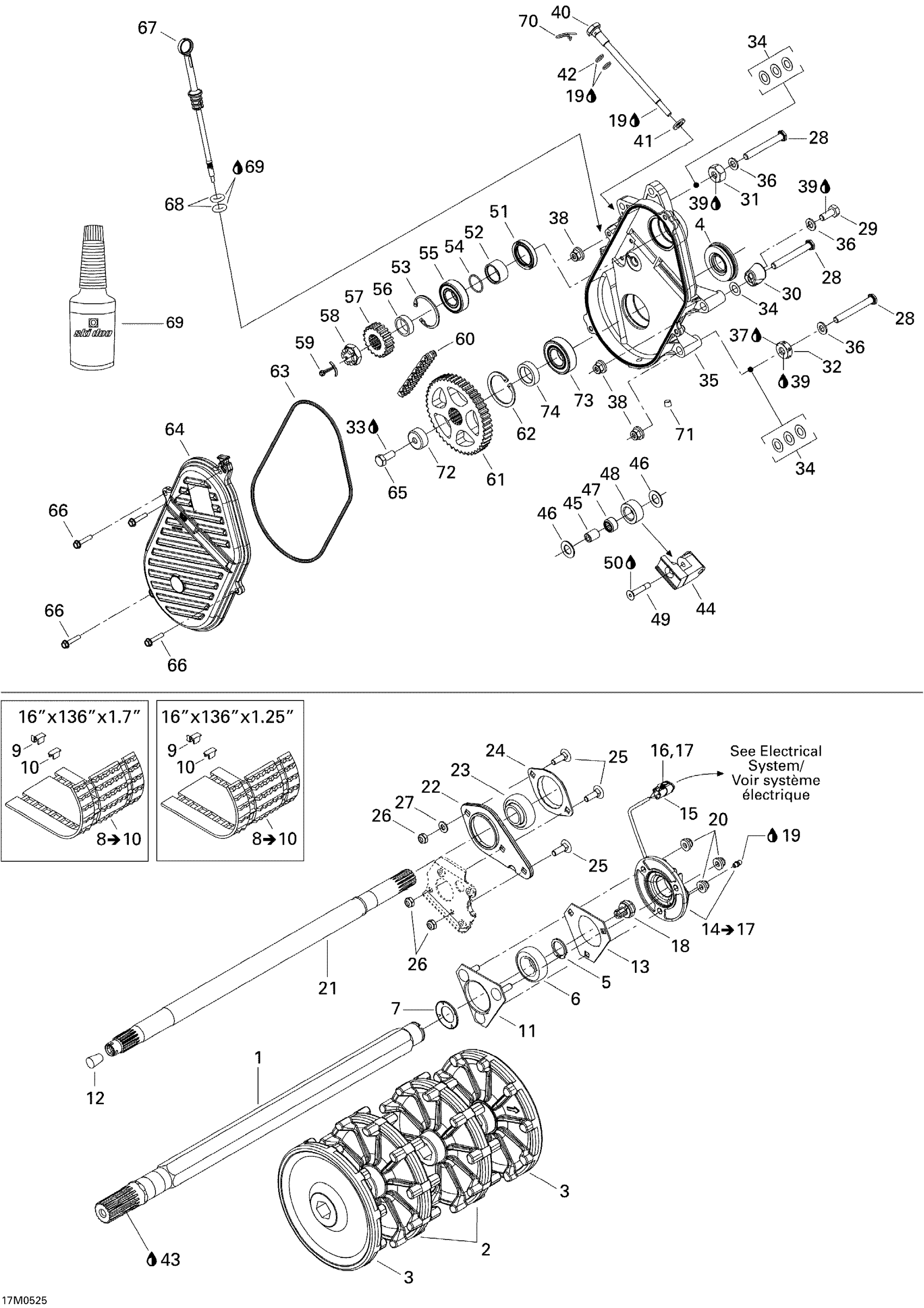

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Drive System Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

$256.89

2

SPROCKET, 10 TEETH - Call your local BRP dealership

504152198

$50.74

3

HALF SPROCKET, 10 TEETH - Call your local BRP dealership

504152199

$37.66

4

Oil Seal Ass'y

504151918

$19.20

5

CIRCLIP - Call your local BRP dealership

371910200

Unavailable

6

Ball Bearing

293350060

$38.49

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

TRACK 16 X 136 X 1.75 ASS'Y - Call your local BRP dealership | Includes 7 to 9, REN X 1,75

504152406

Unavailable

8

Track 16" X 136" X 1.25" Ass'y | Includes 7 to 9

504152456

$929.99

9

Cleat

504152651

$8.22

10

Track Guide | Track Width 16''

415129528

$3.12

10

Track Guide | Track Width 16''

415129528

$3.12

11

BEARING HOUSING - Call your local BRP dealership

504151860

$9.71

12

CORK - Call your local BRP dealership

414784800

$2.28

13

FLANGE - Call your local BRP dealership

501025000

Unavailable

14

Rotation Sensor

504152345

$73.05

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

19

SYNTHETIC GREASE - Call your local BRP dealership

413711500

Unavailable

20

Hex. Flange Elastic Nut M8

233281414

$1.14

21

COUNTER SHAFT - Call your local BRP dealership

504152018

Unavailable

22

SPACER - Call your local BRP dealership

504151968

Unavailable

23

Ball Bearing Kit This part replaces 504152535.

415129555

$54.58

24

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

$14.35

25

Carriage Bolt, M8 X 25 | XXC

207782544

$1.31

26

Hex. Elastic Stop Nut M8

232581414

$0.47

27

Flat Washer 8 mm

234081410

$0.69

28

HEX. SCREW M10 X 80 - Call your local BRP dealership

250000151

$1.62

29

Hex. Screw M10 X 25

207102544

$1.11

30

Spacer

504152252

Unavailable

31

Spacer

504083800

Unavailable

32

SPACER - Call your local BRP dealership

504152237

$7.03

33

Loctite 271, 10 ml

293800005

$20.77

34

WASHER - Call your local BRP dealership

504073700

$3.08

35

Chaincase

504152312

$289.20

36

Washer

503175800

$3.26

37

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

38

Hex. Flange Elastic Nut M10

233201414

$1.26

39

Loctite 243, 10 ml

293800060

$20.77

40

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

41

Flat Washer 10 mm

234001410

$0.98

42

O-Ring

414484400

$7.31

43

SYNTHETIC GREASE - Call your local BRP dealership

413711500

Unavailable

44

Chain Tensioner

504151951

Unavailable

45

SPACER - Call your local BRP dealership

504080200

$15.35

46

WASHER - Call your local BRP dealership

504080300

$4.63

47

NEEDLE BEARING - Call your local BRP dealership

405403000

$22.28

48

ROLLER - Call your local BRP dealership

414531300

Unavailable

49

SCREW - Call your local BRP dealership

732601144

$1.37

50

Loctite 271, 10 ml

293800005

$20.77

51

Oil Seal

293200158

$12.52

52

SPACER - Call your local BRP dealership

507031500

Unavailable

53

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

54

O-RING - Call your local BRP dealership

414876700

Unavailable

55

Ball Bearing

293350115

$11.15

56

SHIM - Call your local BRP dealership

504147200

Unavailable

57

Sprocket, 21 Teeth

504096200

$42.28

57

Sprocket, 19 Teeth

504153783

$109.20

58

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

59

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

60

DRIVE CHAIN, 72 LINKS - Call your local BRP dealership

504151830

Unavailable

60

Drive Chain, 74 Links | Except Europe

504151857

$146.89

61

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

62

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

63

O-Ring

415046400

$24.58

64

CHAINCASE COVER - Call your local BRP dealership

504152471

$161.51

65

Hex. Screw M10 X 25

207102544

$1.11

66

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

67

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

68

O-RING - Call your local BRP dealership

414969400

Unavailable

69

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

70

Hair Pin

414575600

$1.51

71

Plug 1/8”-27

504151921

$3.97

72

CAP - Call your local BRP dealership

504152460

Unavailable

73

Ball Bearing

504152005

Unavailable

74

Shim

504152058

Unavailable
