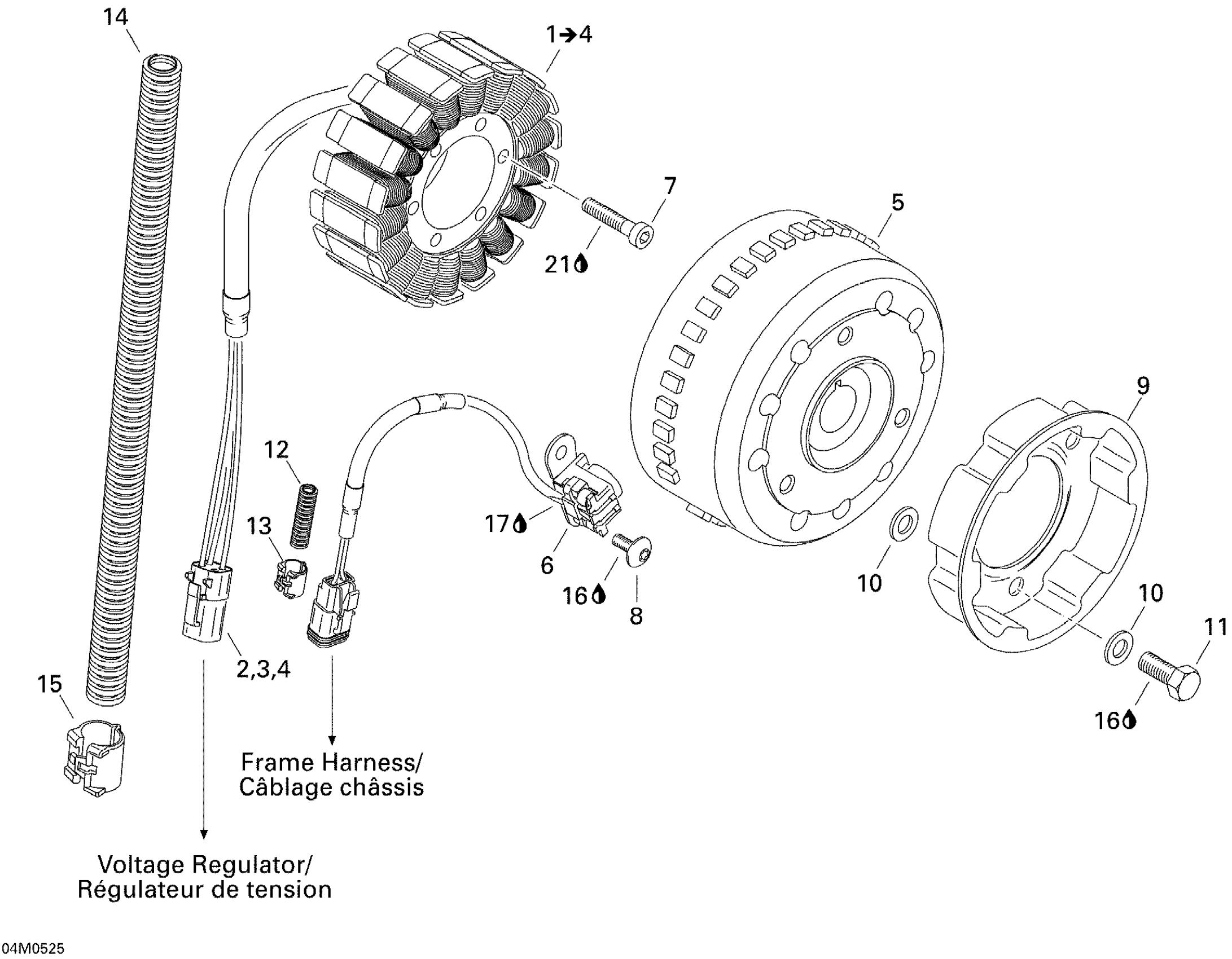

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Magneto Diagram

#

Description
Price

1

STATOR ASS'Y - Call your local BRP dealership

420866068

Unavailable

2

Female Terminal Housing, 4 Circuits

278001473

$25.35

3

Male Terminal

515175568

$7.48

4

Female Lock, 4 Circuits

278001474

$3.02

5

FLYWHEEL - Call your local BRP dealership

420866040

Unavailable

6

PICK-UP ASS'Y - Call your local BRP dealership

410922963

Unavailable

7

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

420241816

Unavailable

8

Torx Screw M6 X 16

420640324

$2.06

9

Starting Pulley | Manual Start This part replaces 420852532.

420852533

$24.58

10

Flat Washer

420827405

$1.66

11

Hex. Screw M8 x 16

207181644

$0.87

12

TUBE - Call your local BRP dealership

420460012

$3.85

13

CLIP - Call your local BRP dealership

420960890

$1.71

14

TUBE - Call your local BRP dealership

420660911

$6.18

15

CLIP - Call your local BRP dealership

420960892

$1.51

16

Loctite 243, 10 ml

293800060

$20.77

17

Not Available As Spare Part - Friction Washer

Unavailable
