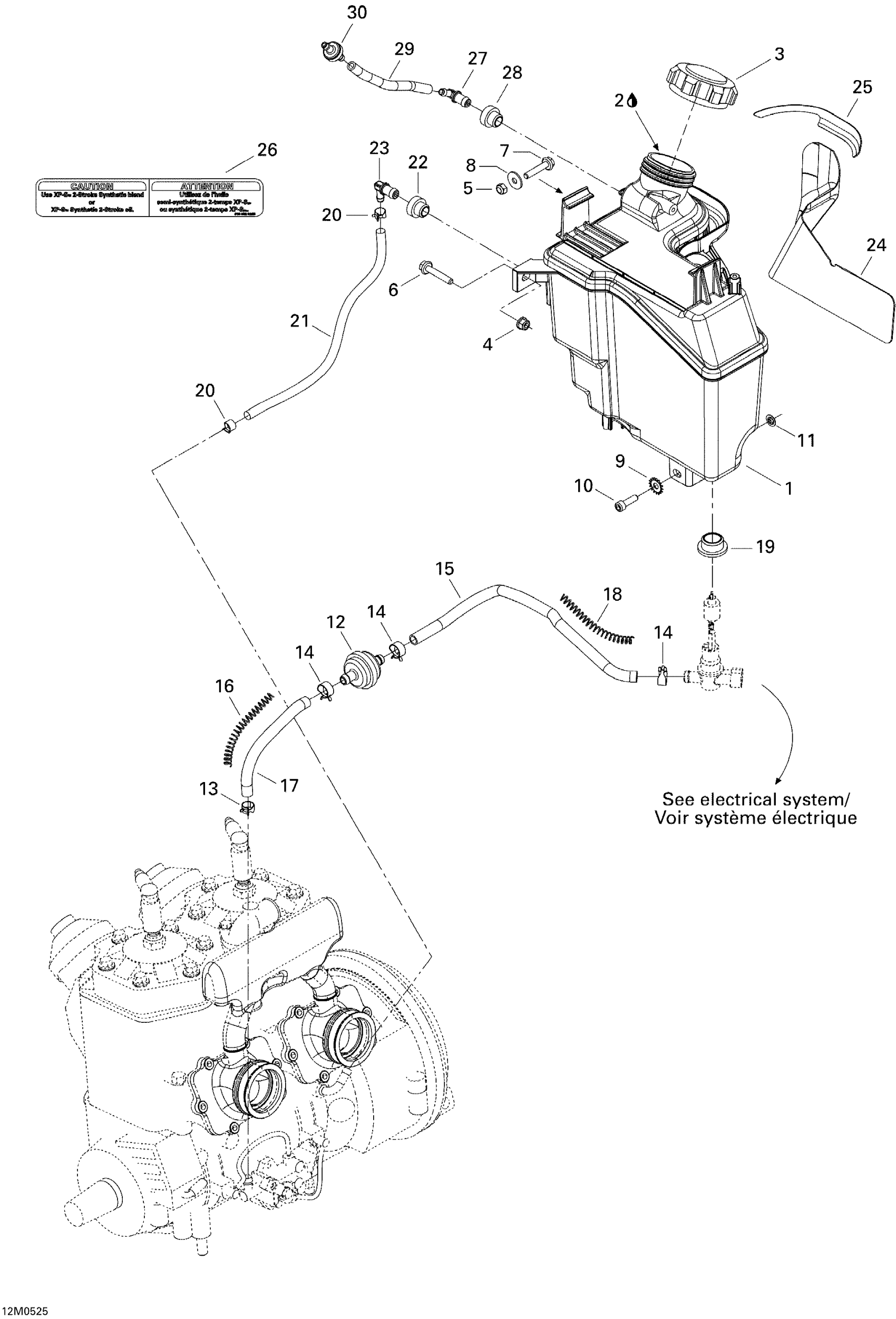

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Oil System Diagram

#

Description
Price

1

OIL TANK - Call your local BRP dealership

519000111

Unavailable

2

OIL 2T 12X1BLEND - Call your local BRP dealership This part replaces 293600071.

293600100

Unavailable

2

SEMI-SYNTHETIC OIL, 3 X 4 LITERS - Call your local BRP dealership

293600072

Unavailable

2

SEMI-SYNTHETIC OIL, 205 LITERS - Call your local BRP dealership

293600073

Unavailable

3

CAP - Call your local BRP dealership

519000033

Unavailable

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

5

Elastic Stop Nut M6

232561414

$1.78

6

Hex. Flange Screw M6 X 35

207663544

$0.74

7

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

8

Flat Washer

250200082

$0.35

9

Lock Washer Serrated M6

250200041

$0.92

10

Socket Head Screw M6 X 20

205062044

$1.07

11

Push Nut

732610072

$1.72

12

Filter

414536500

$3.25

13

Spring Clamp

414420700

$0.66

14

Spring Clamp

414415200

$0.81

15

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

16

SPRING - Call your local BRP dealership

519000064

Unavailable

17

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

18

SPRING - Call your local BRP dealership

519000065

Unavailable

19

Insulating Ring

570023000

$4.62

20

Spring Clamp

414554800

$0.81

21

Polyurethane Hose 10000Mm Long

219704410

$46.12

22

Grommet

513032908

$8.48

23

Male Connector

414580700

$3.38

24

REFLECTIVE SHEET - Call your local BRP dealership

519000054

Unavailable

25

REFLECTIVE SHEET - Call your local BRP dealership

519000072

Unavailable

26

Warning Decal, Oil

516002325

Unavailable

27

Male Connector

414580700

$3.38

28

Grommet

513032908

$8.48

29

Polyurethane Hose 10000Mm Long

219704410

$46.12

30

Check Valve

275500398

$8.57
