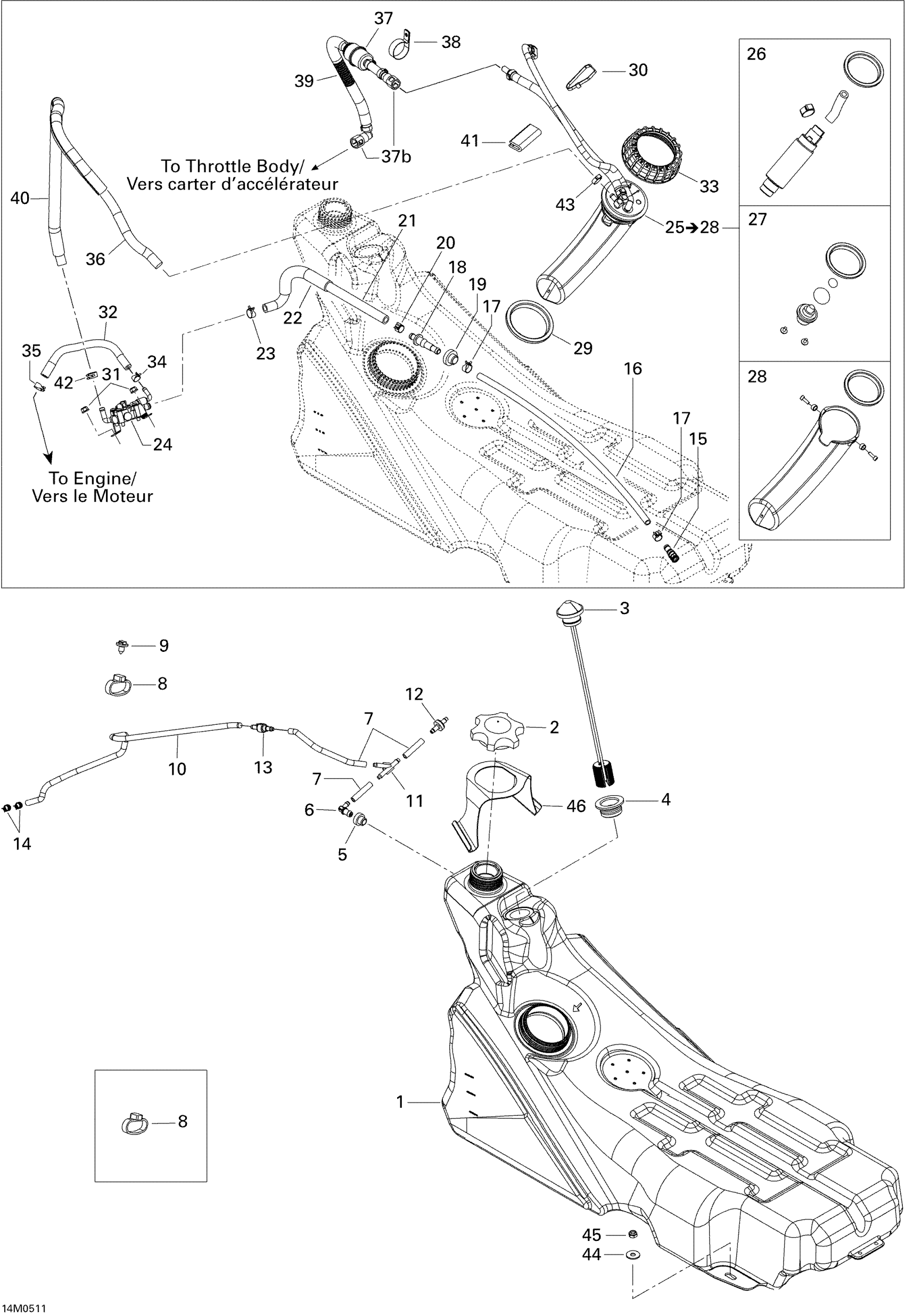

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Fuel System Diagram

#

Description
Price

1

Fuel Tank | GSX Sport

513033093

Unavailable

2

Fuel Tank Cap

513033025

$19.47

3

FUEL GAUGE - Call your local BRP dealership

513033358

Unavailable

4

Grommet

293720058

$10.67

5

Grommet

513032908

$8.48

6

Male Connector

414580700

$3.38

7

Polyurethane Hose 10000Mm Long

219704410

$46.12

8

Tie-Rap 180 mm

414115200

$0.09

9

Mount Dart

293730040

$0.86

10

Polyurethane Hose 10000Mm Long

219704410

$46.12

11

Y-Fitting

293710059

$8.19

12

Check Valve

275500398

$8.57

13

Check Valve

275500505

$25.32

14

Spring Clamp

414554800

$0.81

15

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

16

Hose

513033070

$12.24

17

Norma Spring Clamp

513033010

$8.42

18

Male Connector

414872700

$1.81

19

Grommet | Europe

707800347

$7.58

20

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

21

Formed Hose

513033374

$28.33

22

Tubing 16 Mm 1000Mm Long

219704408

$6.23

23

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

24

Fuel Pump

403901812

$84.99

25

FUEL PUMP MODULE - Call your local BRP dealership | Includes 25 to 27

513033120

Unavailable

26

PUMP KIT - Call your local BRP dealership

861302700

Unavailable

27

REGULATOR KIT - Call your local BRP dealership

861302100

Unavailable

28

Réservoir Kit

861302800

Unavailable

29

SEAL - Call your local BRP dealership

513033039

Unavailable

30

Tie-Rap 180 mm

414115200

$0.09

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

32

HOSE - Call your local BRP dealership

513033035

Unavailable

33

Nut, Fuel Pump Module

513033040

$26.84

34

Spring Clamp

414415200

$0.81

35

Universal Spring Clamp

513033029

$4.96

36

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

37

Fuel Filter Ass'y | Includes 44 to 47

513033133

$84.30

37b

Locking Clip

513033135

$4.96

38

Open Clamp

513033047

$4.73

39

Tubing 16 Mm 1000Mm Long

219704408

$6.23

40

Tubing 16 Mm 1000Mm Long

219704408

$6.23

41

Was 271000110 Protection Trim

219704353

$14.58

42

Universal Spring Clamp

513033029

$4.96

43

Crimp Clamp, 15.3-706R

293650047

$2.64

44

Flat Washer 8 mm

234082410

$1.11

45

Hex. Elastic Stop Nut M8

232581414

$0.47

46

SUPPORT - Call your local BRP dealership

513033066

Unavailable
