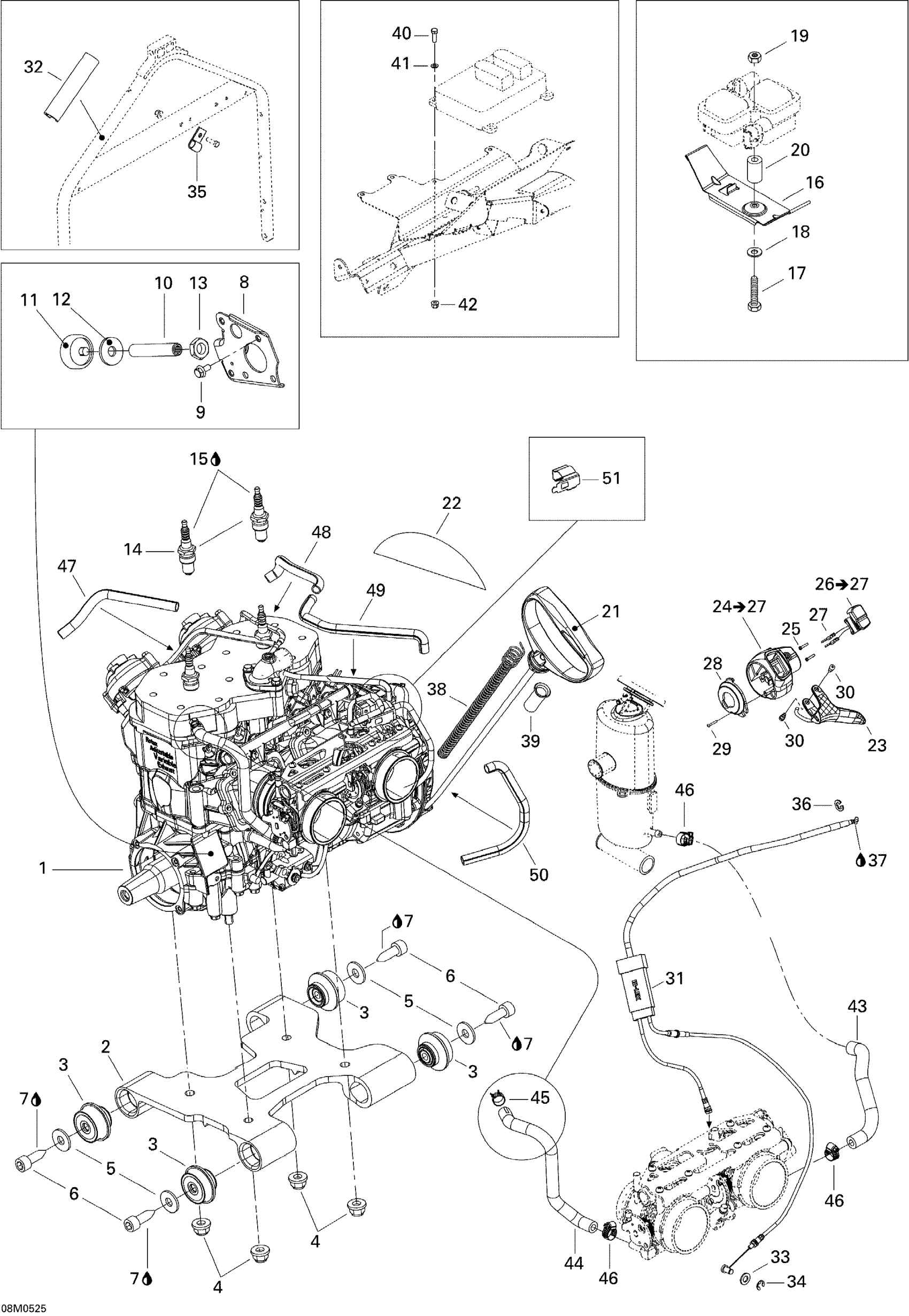

Ski-Doo MX Z 600 HO SDI Renegade & Renegade X, 2005 Engine And Engine Support Diagram

#

Description
Price

1

Engine 593 HO SDI Rer

400509758

Unavailable

2

Engine Support

512059754

Unavailable

3

Rubber Mount

512059691

$44.58

4

Hex. Flange Elastic Nut M10

233201414

$1.26

5

Flat Washer M10 | 4X4

250200014

$1.17

6

Screw M10 X 30

250000094

$23.05

7

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

8

PLATE - Call your local BRP dealership

512059840

$29.97

9

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

10

STOPPER SCREW - Call your local BRP dealership

250500007

$23.82

11

STOPPER - Call your local BRP dealership

512059610

Unavailable

12

WASHER - Call your local BRP dealership

512059057

Unavailable

13

Hex. Jam Nut M14

232170411

$1.25

14

Spark Plug NGK BR9ECS

415128524

$9.70

15

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

16

COIL SUPPORT - Call your local BRP dealership

512059865

$2.89

17

Hex. Screw M6 X 45

207064544

$2.02

18

Flat Washer 6 mm

234061410

$1.04

19

Elastic Stop Nut M6

232561414

$1.55

20

SPACER - Call your local BRP dealership

512059812

$9.38

21

Starter Grip

572084400

$14.54

22

REFLECTIVE SHEET - Call your local BRP dealership

512059893

Unavailable

23

Throttle Handle Ass'y | Includes 13 to 14

512060484

$118.43

24

Housing Throttle Ass'y | Includes 25 to 27

512060121

$37.66

24

Housing Throttle Ass'y | Includes 25 to 27

512060121

$37.66

25

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

25

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

26

Housing Throttle Ass'y | Includes 25 to 27

512060121

$37.66

26

Housing Throttle Ass'y | Includes 25 to 27

512060121

$37.66

27

Male Terminal

515175232

$1.49

28

COVER - Call your local BRP dealership

512059698

$8.43

29

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

30

Flange Screw

732601143

$4.02

31

Throttle Cable

512059765

Unavailable

31

Throttle Cable

512059878

$67.99

32

PROTECTOR - Call your local BRP dealership

512059750

$6.12

33

Flat Washer 8 mm, Nylon

234081100

$1.00

34

Circlip

414753500

$0.59

35

Open Clamp

414176000

$1.86

36

Circlip

414274500

$0.74

37

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

38

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

39

TUBE - Call your local BRP dealership

512059536

$8.51

40

Hex. Screw M5 X 20

207152044

$0.88

41

Flat Washer M5

234051410

$0.44

42

Hex. Flange Elastic Nut M5

233251414

$1.66

43

FORMED HOSE - Call your local BRP dealership

512059563

Unavailable

44

HOSE-FORMED - Call your local BRP dealership This part replaces 512059990.

605354601

Unavailable

45

Universal Spring Clamp

513033029

$5.11

46

Tridon Gear Clamp

293650170

$1.74

47

Was 409901700 Tubing (9 mm)

219704399

$79.97

48

Was 409901700 Tubing (9 mm)

219704399

$79.97

49

Was 409901700 Tubing (9 mm)

219704399

$79.97

50

Was 409901700 Tubing (9 mm)

219704399

$79.97

51

Heating Element Bracket

512059809

Unavailable
