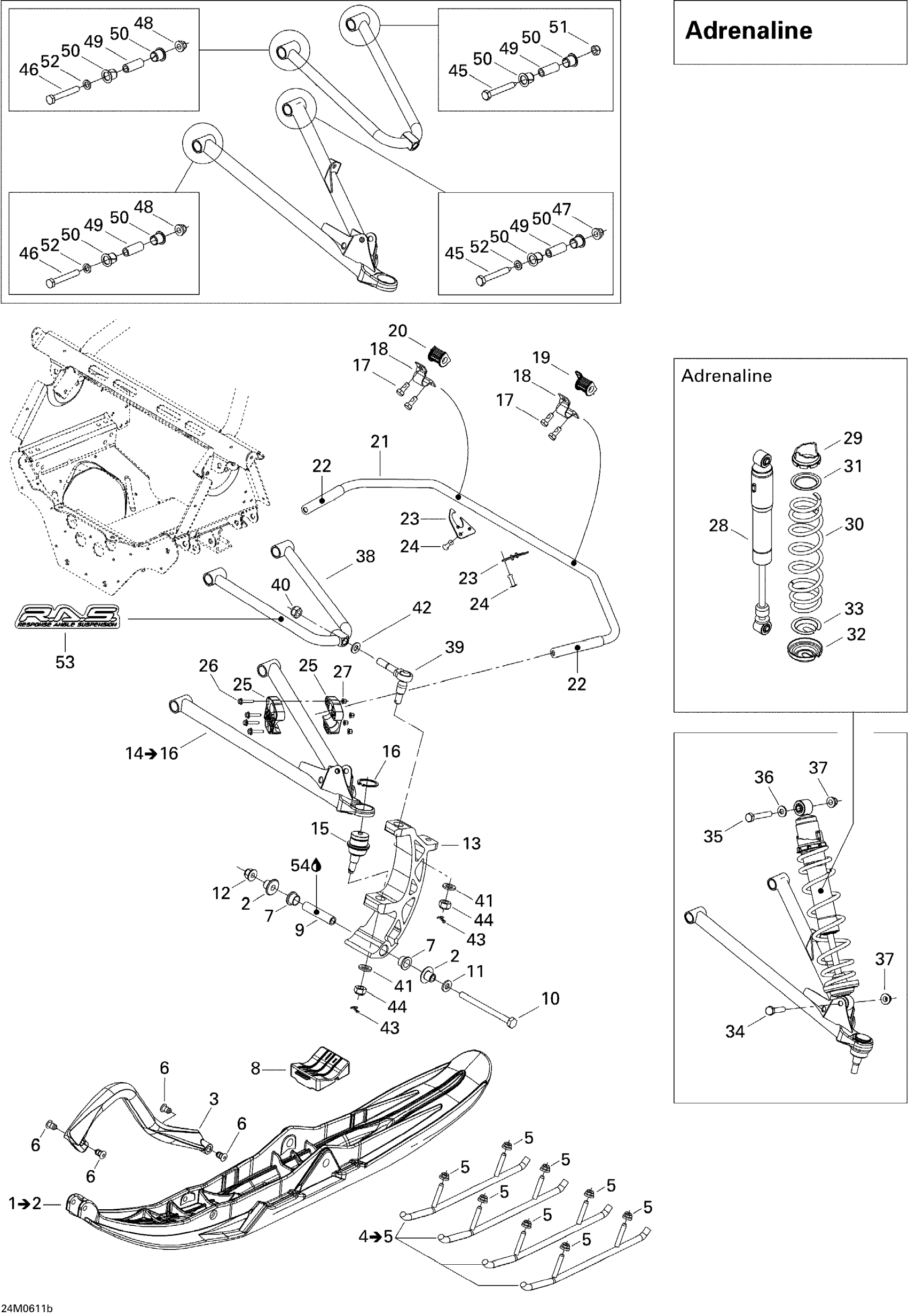

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2006 Front Suspension And Ski ADR Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$160.74

1

Deep Black, LH Pilot 5.7 Ski

505072854

$175.35

2

Ski Bushing

505071781

$15.35

3

Yellow Handle | Model-MX-Z TNT

505070917

$41.51

3

Black, Handle

505070963

$35.35

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$134.58

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

Retainer 17mm long

505071812

$4.43

7

Leg Bushing

505072690

Unavailable

8

Ski Stopper

505071779

$16.12

9

Spacer

506133300

$19.97

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

11

Washer

732900049

$0.57

12

Flange Nut M10

732610084

$5.49

13

SKI LEG - Call your local BRP dealership

505071232

$162.28

14

RH LOWER ARM ASS'Y - Call your local BRP dealership

860512500

$194.58

14

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512400

$194.58

15

Ball Joint

505073636

$49.97

16

Circlip

293370035

$2.55

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

$5.45

19

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

20

RH BUSHING - Call your local BRP dealership

505070912

$7.37

21

STABILISATOR - Call your local BRP dealership

505070948

$114.58

22

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

$0.54

25

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

25

LH SLIDER HALF - Call your local BRP dealership

505071269

$9.08

26

Hex. Flange Screw M5 X 25

207652544

$0.42

27

Hex. Flange Elastic Nut M5

233251414

$1.66

28

FRONT SHOCK - Call your local BRP dealership

505071490

$216.89

29

Adjustment Cam

505073625

$12.18

30

SPRING - Call your local BRP dealership | Europe

505071833

Unavailable

31

Spring Guide

503191872

$2.18

32

Spring Stopper

706200881

$10.30

33

Cap

706200785

$4.42

34

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

35

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

36

Washer

503189564

$0.72

37

Hex. Flange Elastic Nut M10

233201414

$1.26

38

UPPER ARM - Call your local BRP dealership

505071756

Unavailable

39

Upper Ball Joint

505072257

$16.89

40

Hex. Flange Elastic Nut M12

250000047

$1.56

41

Flat Washer 12 mm

234021410

$0.68

42

Washer

503189276

$3.20

43

Cotter Pin

211400017

$0.25

44

Hex. Flange Elastic Nut M12

250000047

$1.56

45

Hex. Screw M10 X 75

250001063

$9.74

46

Hex. Screw M10 X 75

250001063

$9.74

47

Hex. Flange Elastic Nut M10

250100165

$0.70

48

Hex. Flange Elastic Nut M10

250100165

$0.70

49

Bushing

505070567

$19.97

50

Arm Bushing

505070566

$3.14

51

Elastic Flange Nut M10

232501416

$1.25

52

Washer

503189564

$0.72

53

R.a.s. Suspension Decal

516002747

Unavailable

54

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
