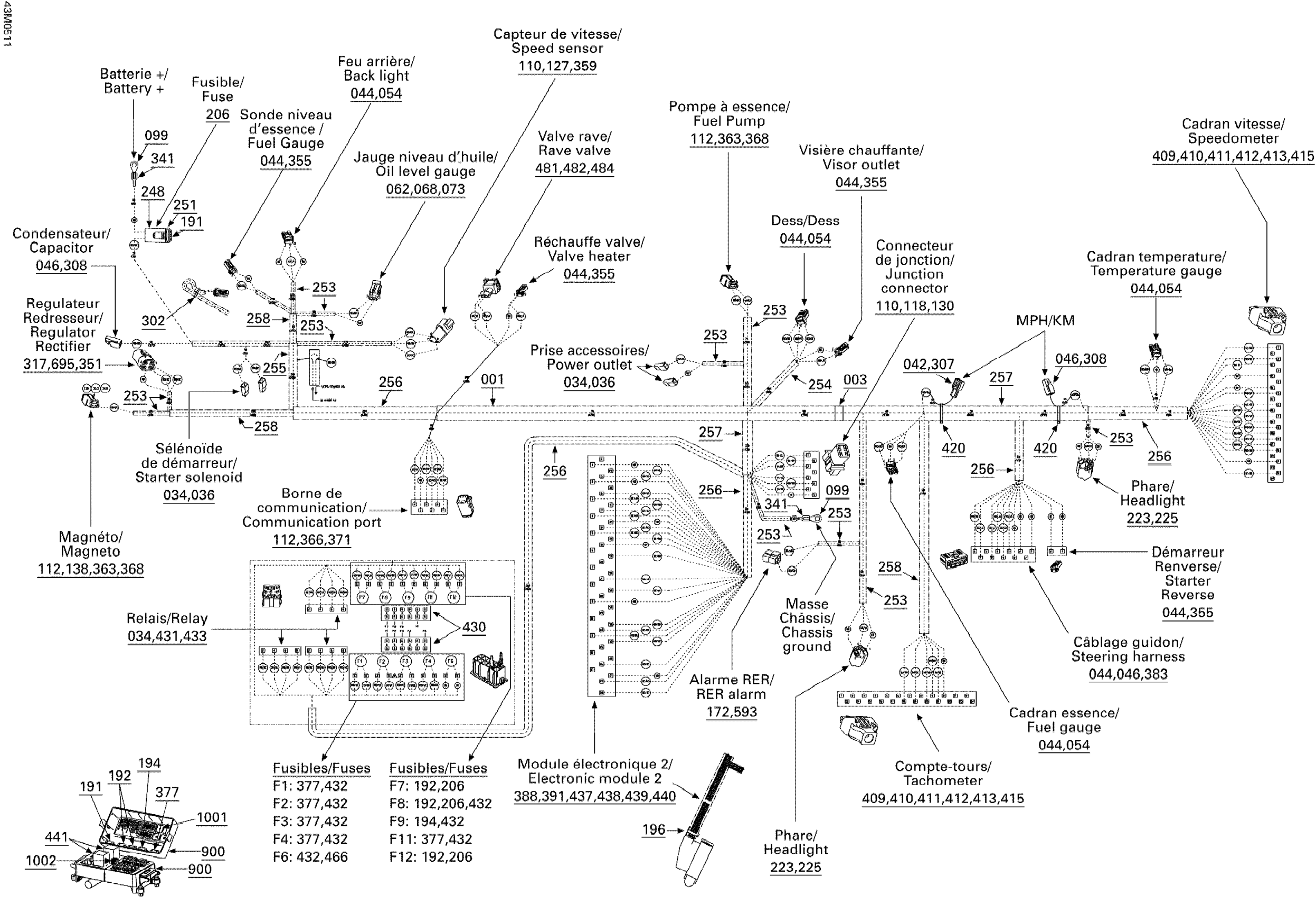

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2005 Electrical Harness Diagram
#
1
Frame Harness Ass'y | Includes 1 to 1002
515176212
Unavailable
42
MALE TERMINAL - Call your local BRP dealership
515175273
Unavailable
44
Female Terminal
515175231
Unavailable
57
Female Terminal Housing, 13 Circuits
515175350
Unavailable
62
Female Terminal
278001014
Unavailable
73
Wire Seal
278001013
Unavailable
112
Female Terminal
278000632
Unavailable
118
MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership
278001742
Unavailable
130
LOCK MALE, 8 CIRCUITS - Call your local BRP dealership
515175276
Unavailable
138
Sealing Cap
293000052
Unavailable
172
Female Terminal
561503100
Unavailable
176
OPEN BARREL - Call your local BRP dealership
409003200
Unavailable
194
Fuse, 10 Amperes | North America
278001197
Unavailable
196
Tie Wrap 142 mm
293750002
Unavailable
206
Female Terminal
409004200
Unavailable
222
Female Housing
409204300
Unavailable
223
FEMALE TERMINAL - Call your local BRP dealership
515175320
Unavailable
225
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409202700
Unavailable
248
Fuse Holder
409004000
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
255
Was 409901800 Tubing (13 mm)
219704400
Unavailable
256
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
257
Was 409901600 Tubing 19mm
219704398
Unavailable
258
Tubing 10 MM 1000MM Long
219704407
Unavailable
307
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175509
Unavailable
308
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175510
Unavailable
317
Female Terminal Housing, 4 Circuits
278001473
Unavailable
341
Not Available As Spare Part - Friction Washer
Unavailable
351
Female Lock, 4 Circuits
278001474
Unavailable
355
Female Housing, 2 Circuits
515175658
Unavailable
359
Male Housing
515175666
Unavailable
363
Female Terminal Housing, 2 Circuits
515175670
Unavailable
368
Female Lock, 2 Circuits
515175675
Unavailable
371
Male Wedge, 6 Circuits
515175678
Unavailable
387
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
388
FEMALE TERMINAL - Call your local BRP dealership
278001750
Unavailable
391
MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership
278001751
Unavailable
409
Plug
515175812
Unavailable
410
Female Housing, 24 Circuits
515175801
Unavailable
411
Retainer Block
515175802
Unavailable
412
Wire Seal
515175803
Unavailable
430
FUSE HOLDER - Call your local BRP dealership
515175857
Unavailable
431
RELAY HOLDER - Call your local BRP dealership
515175856
Unavailable
432
FEMALE TERMINAL - Call your local BRP dealership
515175855
Unavailable
433
FEMALE TERMINAL - Call your local BRP dealership
515175854
Unavailable
437
SEAL - Call your local BRP dealership
515175886
Unavailable
439
LOCK - Call your local BRP dealership
515175884
Unavailable
441
Relais *Relay This part replaces 410113604.
515177672
Unavailable
593
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
515176069
Unavailable
900
FUSE BOX BASE - Call your local BRP dealership
515176065
Unavailable
1000
COVER - Call your local BRP dealership
515176066
Unavailable
1001
Fuse Decal
516002640
Unavailable
1002
FUSE TOOL - Call your local BRP dealership
515175811
Unavailable
