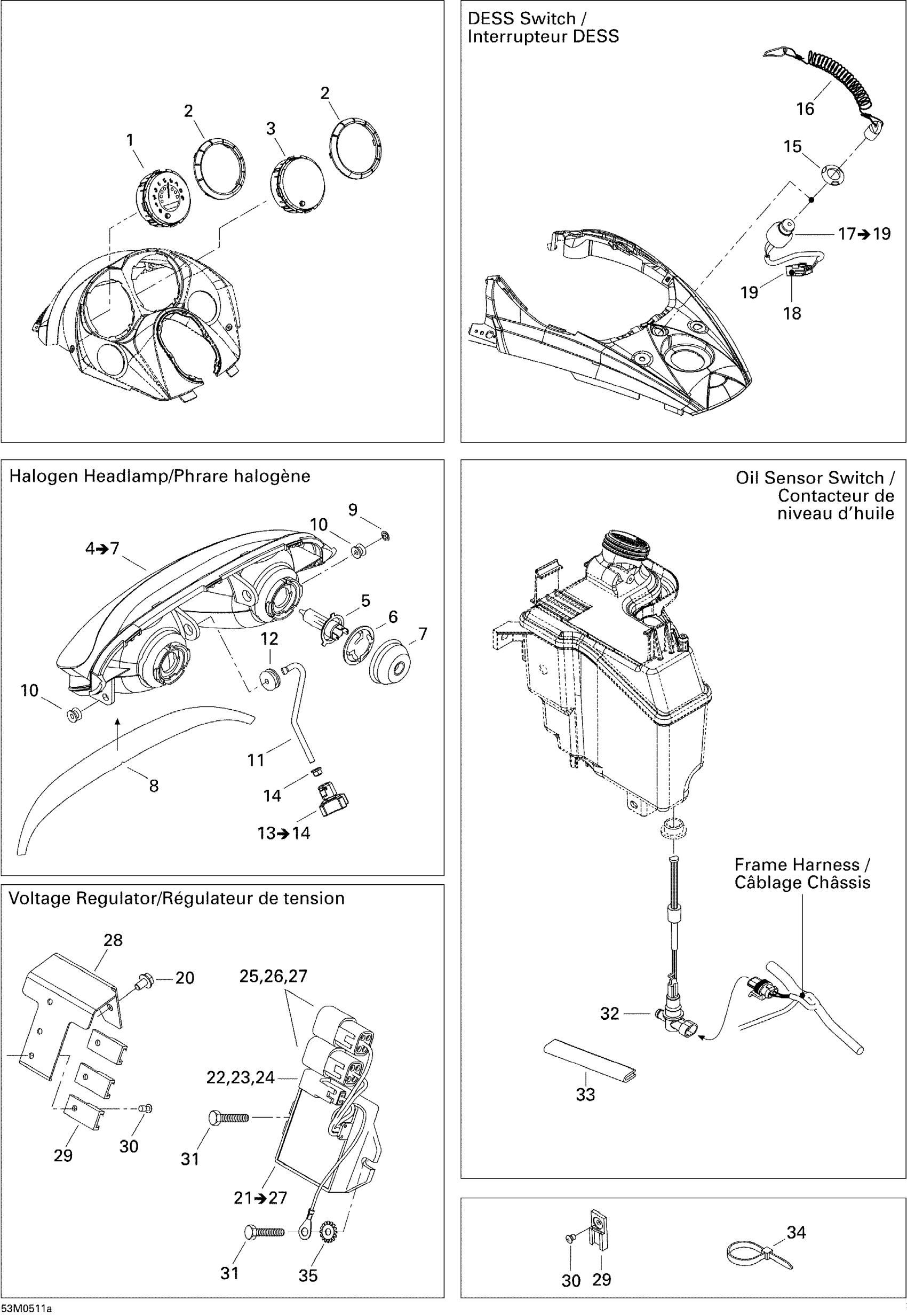

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2005 Electrical Accessories 1 Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership

515176244

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$12.31

3

Tachometer

515176275

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$279.82

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

9

Push Nut

732610072

$1.97

10

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

11

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

12

Grommet - Call your local BRP dealership

415100800

Unavailable

13

HANDLE - Call your local BRP dealership

515175975

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

15

Safety Nut (DESS Switch)

278002963

$3.12

16

DESS

515178284

$79.07

17

DESS Switch

515177249

$102.96

18

Male Terminal

515175232

$1.45

19

Male Housing, 3 Circuits

515175494

$14.90

20

Hex. Forming Screw M6 X 10

210261050

$1.63

21

Voltage Regulator | Includes 32 to 38

515176243

$335.04

22

Male Housing, 2 Circuits

409206900

$8.72

23

Male Terminal

278000631

$4.00

24

Male Lock, 2 Circuits

409207500

$2.93

25

Female Housing, 4 Circuits

278000635

$13.60

26

Male Terminal

515175568

$7.25

27

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

28

HOUSING SUPPORT - Call your local BRP dealership

515176191

Unavailable

29

Clip

270000141

$9.57

30

Avdel Rivet 3/16"

293150037

$0.54

31

Hex. Flange Screw M6 X 16

210261650

$1.40

32

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

33

TRIM - Call your local BRP dealership

509000263

Unavailable

34

Tie Wrap 368 mm

293750008

$0.97

35

Lock Washer Serrated M6

250200041

$1.06
