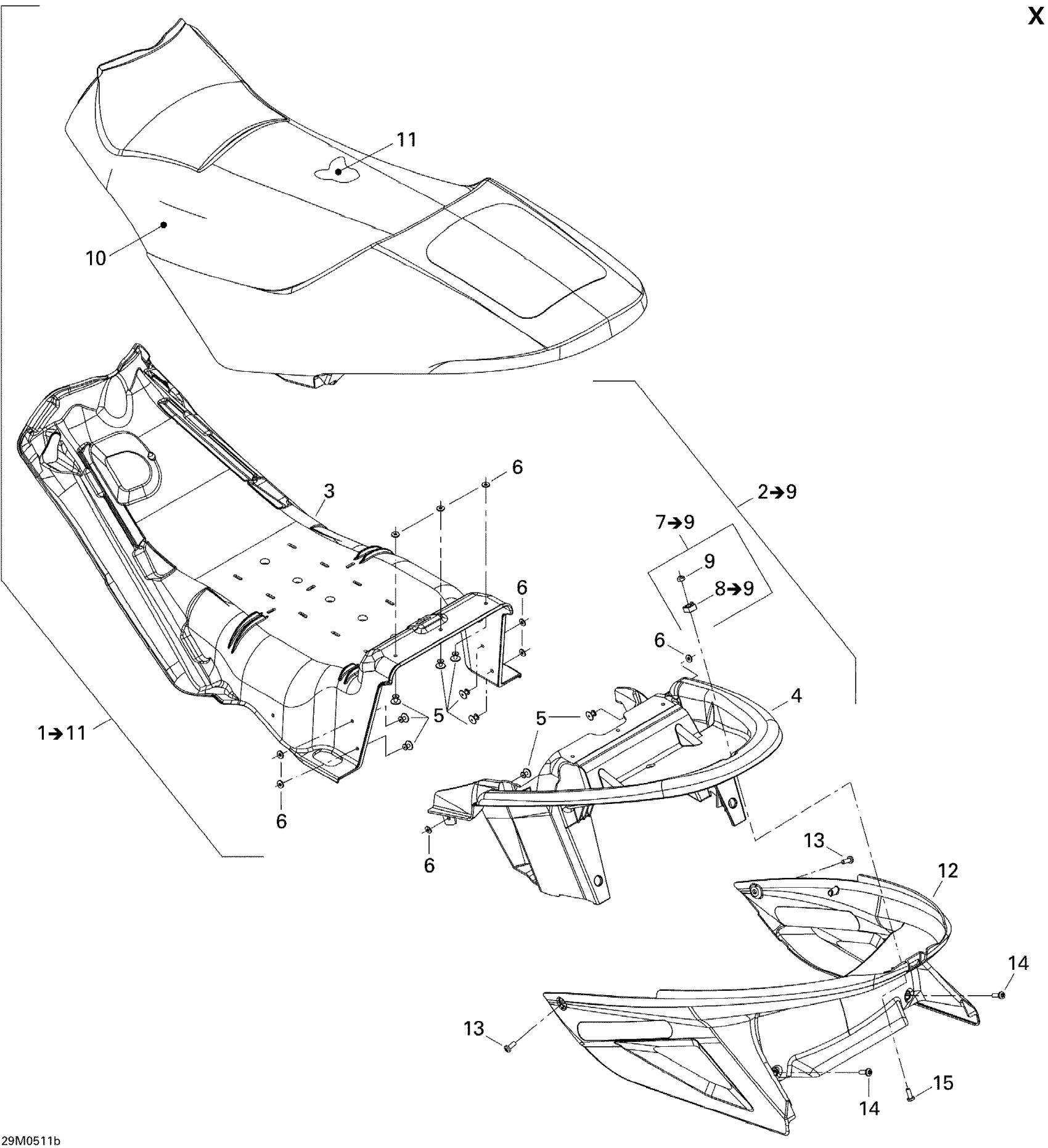

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2005 Seat X Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
1
Not Available As Spare Part - Friction Washer
Unavailable
1
Not Available As Spare Part - Friction Washer
Unavailable
2
SEAT BASE ASS'Y - Call your local BRP dealership
510004582
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
7
NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3
708000046
Unavailable
8
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
Unavailable
9
Hex. Nut M6
232061600
Unavailable
10
Seat Cover | Black, B-160
510004491
Unavailable
10
Seat Cover | Jaune, B-190
510004492
Unavailable
10
Seat Cover | Viper Red, B-176
510004493
Unavailable
11
Seat Foam
510004216
Unavailable
12
Deep Black, Trunk
510004230
Unavailable
13
Torx Truss Screw M6 X 16
250000721
Unavailable
14
Torx Screw M6 X 20
250000722
Unavailable
15
Torx Truss Screw M6 X 16
250000721
Unavailable
