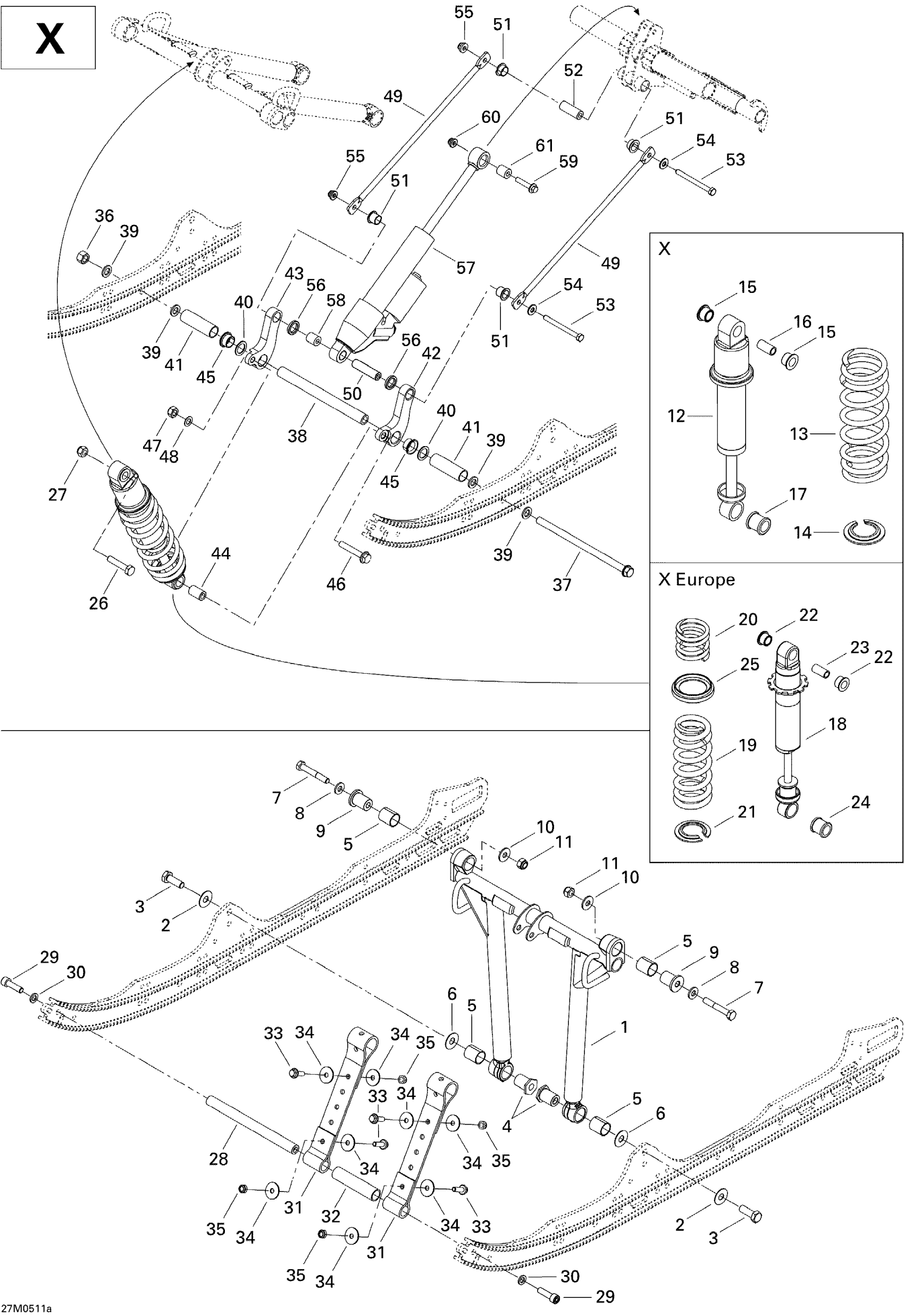

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2005 Front Arm X Diagram

#

Description
Price

1

Front Arm

503190566

Unavailable

2

Washer | 7415/7416. 7417/7418.

503189148

$2.64

3

Hex. Cap Screw M12 X 35

250000537

$3.01

4

Lower Axle

503191966

$14.90

5

Bushing

503190974

$9.07

6

Washer

503190656

$2.82

7

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

8

Washer

732900049

$0.55

9

Axle

503190698

$17.13

10

Flat Washer M10 | 4X4

250200014

$1.34

11

Elastic Locking Nut M10 X 1.5

233601416

$1.63

12

Center Shock | X

503191043

Unavailable

13

SPRING - Call your local BRP dealership

503189325

Unavailable

14

Spring Stopper

503189912

$16.39

15

Urethane Bushing

503189117

$6.67

16

Bushing | Includes 240d to 240d1

503189282

$4.06

17

Bushing

503189271

$10.15

18

Center Shock | X Europe

503190747

Unavailable

19

Spring

503190854

$64.90

20

Spring | Adrenaline

503190471

Unavailable

21

Spring Stopper

503189912

$16.39

22

Urethane Bushing

503189117

$6.67

23

Bushing | Includes 240d to 240d1

503189282

$4.06

24

Bushing

503189271

$10.15

25

SPRING SPACER - Call your local BRP dealership | Adrenaline

505070538

Unavailable

26

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

27

Elastic Stop Nut M10

232500416

$1.79

28

AXLE - Call your local BRP dealership

503189562

Unavailable

29

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

30

Washer

503189564

$0.70

31

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

32

Spacer

503189265

$4.61

33

Hex. Flange Screw M8 X 25

207682544

$1.03

34

Flat Washer

224081301

$0.84

35

Hex. Flange Elastic Nut M8

233281414

$1.31

36

Hex. Nut M12

232021416

$4.37

37

HEX. SCREW M12 X 252 - Call your local BRP dealership

250000229

Unavailable

38

CENTER SHAFT - Call your local BRP dealership

503191044

Unavailable

39

Washer | 7415/7416. 7417/7418.

503189148

$2.64

40

WASHER - Call your local BRP dealership

503190697

Unavailable

41

SPACER - Call your local BRP dealership

503190600

Unavailable

42

LH Rocker Arm

503190965

Unavailable

43

RH ROCKER ARM - Call your local BRP dealership

503190966

Unavailable

44

Central Shock Axle

503190604

$10.84

45

CENTRAL ROCKER AXLE CUSHION - Call your local BRP dealership

503190605

Unavailable

46

Hex. Flange Screw M10 X 60

207606044

$3.19

47

Elastic Stop Nut M10

232500416

$1.79

48

Washer

503175800

$3.16

49

THROTTLE ROD - Call your local BRP dealership

503190606

Unavailable

50

Axle Bar (Long)

503190643

$14.90

51

Swivel Bushing

503191555

$5.54

52

AXLE ROD - Call your local BRP dealership

503189815

Unavailable

53

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

54

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

55

Hex. Flange Elastic Nut M8

233281414

$1.31

56

Plastic Spacer

503190694

$1.99

57

Rear Shock | X Europe

503190987

Unavailable

57

Rear Shock | X

503190306

Unavailable

58

BUSHING - Call your local BRP dealership

503190706

Unavailable

59

Hex. Flange Screw M8 X 40

207684044

$1.43

60

Hex. Flange Elastic Nut M8

233281414

$1.31

61

Bushing

414936000

$11.21
