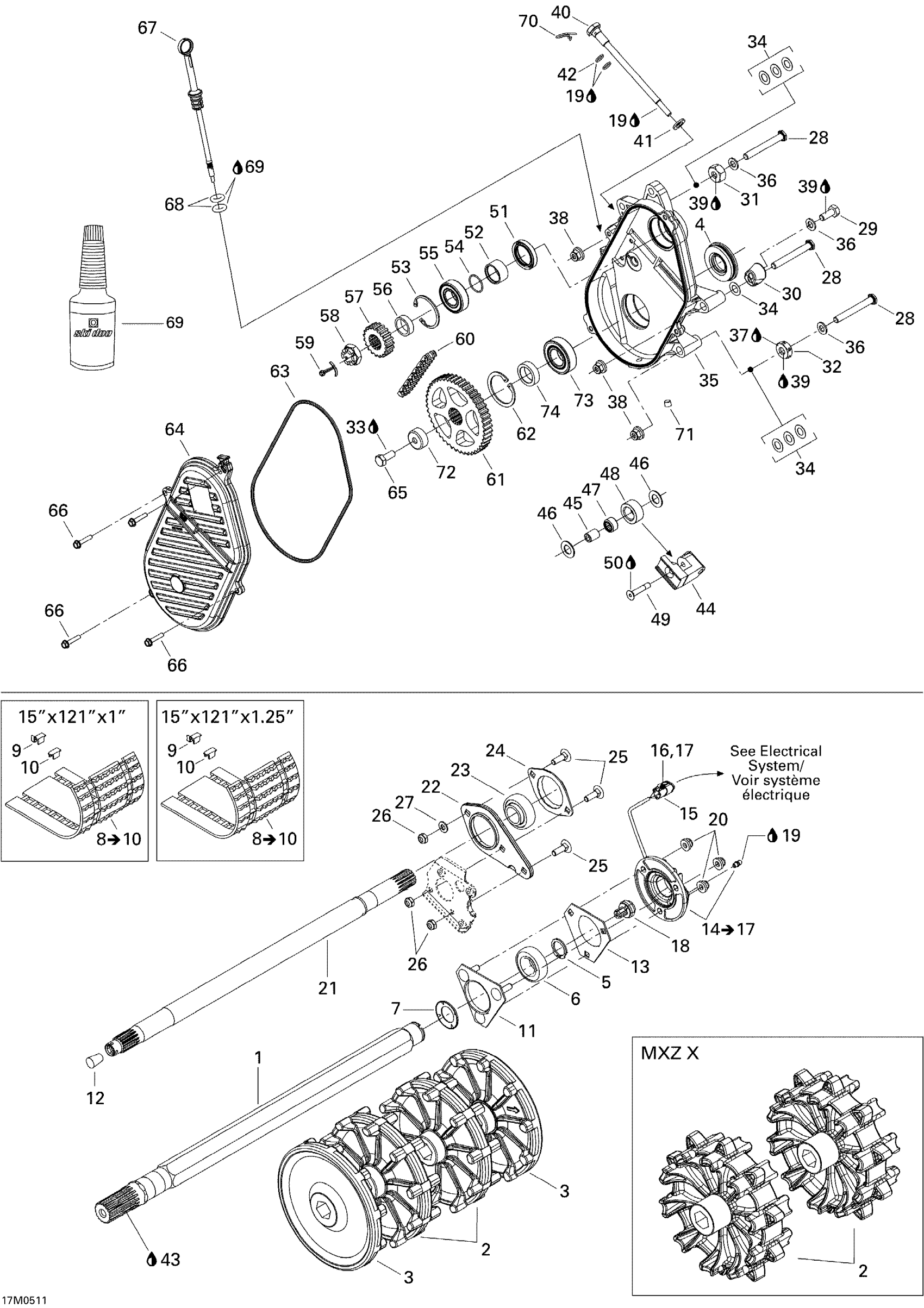

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2005 Drive System Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

2

SPROCKET, 10 TEETH - Call your local BRP dealership

504152198

Unavailable

2

SPROCKET, 10 TEETH, INTERIOR/EXTERIOR - Call your local BRP dealership | Use drive axle assembly w/sprockets 504152849 for SUMMIT 1000SDI 2005-2007, RENEGADE 1000SDI 2007**Use drive axle assembly w/sprockets 504152847 for all other model applications

504152502

Unavailable

3

HALF SPROCKET, 10 TEETH - Call your local BRP dealership

504152199

Unavailable

4

Oil Seal Ass'y

504151918

$18.63

5

CIRCLIP - Call your local BRP dealership

371910200

Unavailable

6

Ball Bearing

293350060

$38.49

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

Track 15" X 121" X 1" Ass'y

504152446

Unavailable

8

Chenille 15X121 *Track 15X121X1.25 Rip S | Includes 8 to 10 This part replaces 504152558.

C9968H

$759.99

9

Track Guide | Track Width 16''

415129528

$3.03

10

Cleat

504152651

$7.97

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

CORK - Call your local BRP dealership

414784800

Unavailable

13

FLANGE - Call your local BRP dealership

501025000

Unavailable

14

Rotation Sensor

504152345

$70.87

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

19

SYNTHETIC GREASE - Call your local BRP dealership

413711500

Unavailable

20

Hex. Flange Elastic Nut M8

233281414

$1.31

21

COUNTER SHAFT - Call your local BRP dealership

504152018

Unavailable

22

SPACER - Call your local BRP dealership

504151968

Unavailable

23

Ball Bearing Kit This part replaces 504152535.

415129555

$52.96

24

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

25

Carriage Bolt, M8 X 25 | XXC

207782544

$1.51

26

Hex. Elastic Stop Nut M8

232581414

$0.54

27

Flat Washer 8 mm

234081410

$0.79

28

HEX. SCREW M10 X 80 - Call your local BRP dealership

250000151

Unavailable

29

Hex. Screw M10 X 25

207102544

$1.27

30

Spacer

504152252

Unavailable

31

Spacer

504083800

Unavailable

32

SPACER - Call your local BRP dealership

504152237

Unavailable

33

Loctite 271, 10 ml

293800005

$23.85

34

WASHER - Call your local BRP dealership

504073700

Unavailable

35

Chaincase

504152312

Unavailable

36

Washer

503175800

$3.16

37

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

38

Hex. Flange Elastic Nut M10

233201414

$1.45

39

Loctite 243, 10 ml

293800060

$21.49

40

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

41

Flat Washer 10 mm

234001410

$1.12

42

O-Ring

414484400

$7.09

43

SYNTHETIC GREASE - Call your local BRP dealership

413711500

Unavailable

44

Chain Tensioner

504151951

Unavailable

45

SPACER - Call your local BRP dealership

504080200

Unavailable

46

WASHER - Call your local BRP dealership

504080300

Unavailable

47

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

48

ROLLER - Call your local BRP dealership

414531300

Unavailable

49

SCREW - Call your local BRP dealership

732601144

Unavailable

50

Loctite 271, 10 ml

293800005

$23.85

51

Oil Seal

293200158

$12.15

52

SPACER - Call your local BRP dealership

507031500

Unavailable

53

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

54

O-RING - Call your local BRP dealership

414876700

Unavailable

55

Ball Bearing

293350115

$10.82

56

SHIM - Call your local BRP dealership

504147200

Unavailable

57

Sprocket 22 Teeth Large

504091100

$64.90

58

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

59

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

60

Drive Chain, 74 Links | Except Europe

504151857

$142.51

61

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

62

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

63

O-Ring

415046400

$23.85

64

CHAINCASE COVER - Call your local BRP dealership

504152471

Unavailable

65

Hex. Screw M10 X 25

207102544

$1.27

66

Hex. Flange Screw M6 X 30 | International

210263050

$1.87

67

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

68

O-RING - Call your local BRP dealership

414969400

Unavailable

69

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

70

Hair Pin

414575600

$1.73

71

Plug 1/8”-27

504151921

$3.85

72

CAP - Call your local BRP dealership

504152460

Unavailable

73

Ball Bearing

504152005

Unavailable

74

Shim

504152058

Unavailable
