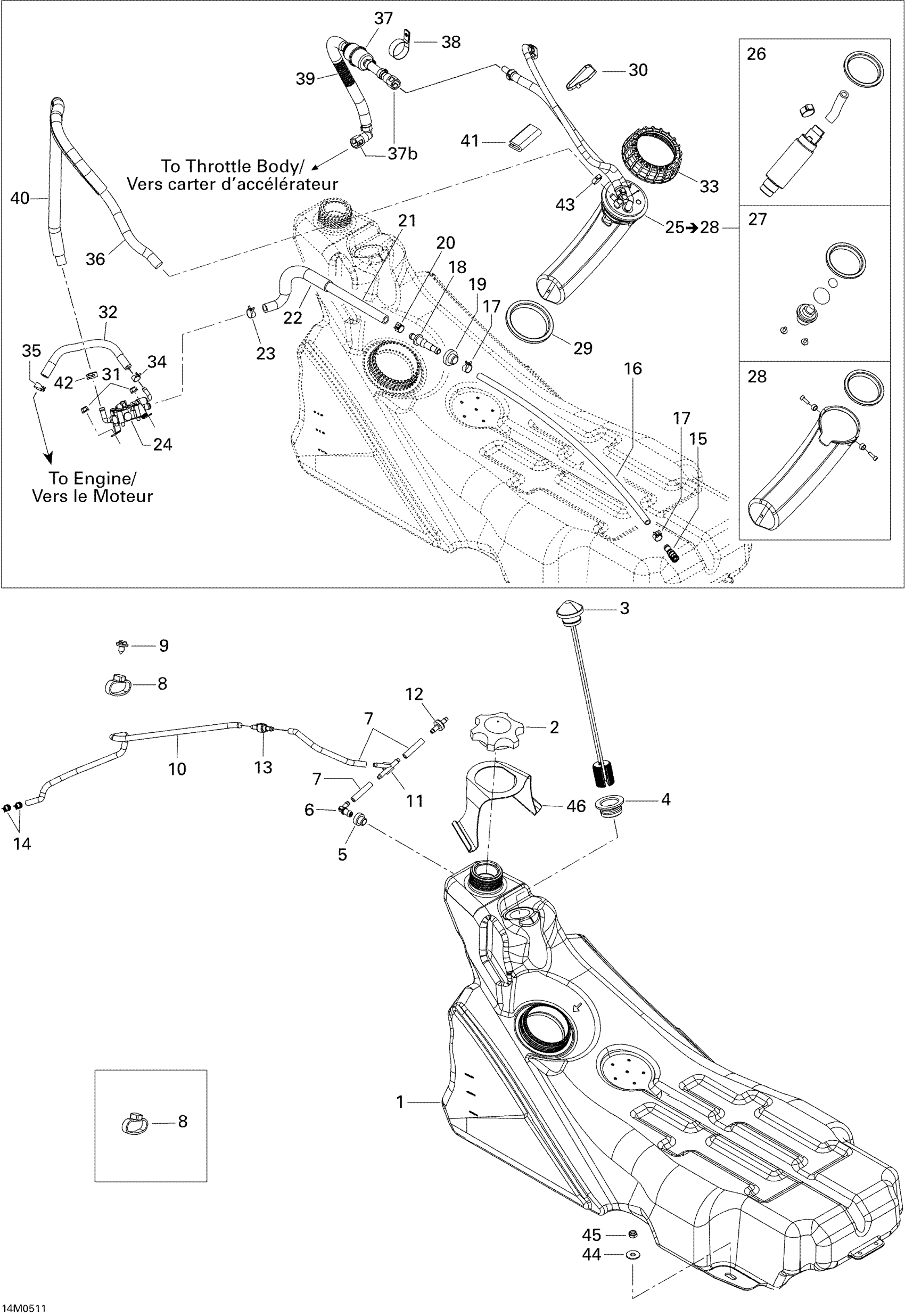

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2005 Fuel System Diagram

#

Description
Price

1

Fuel Tank | GSX Sport

513033093

Unavailable

2

Fuel Tank Cap

513033025

$19.47

3

FUEL GAUGE - Call your local BRP dealership

513033358

Unavailable

4

Grommet

293720058

$11.00

5

Grommet

513032908

$8.74

6

Male Connector

414580700

Unavailable

7

Polyurethane Hose 10000Mm Long

219704410

Unavailable

8

Tie-Rap 180 mm

414115200

$0.09

9

Mount Dart

293730040

$0.86

10

Polyurethane Hose 10000Mm Long

219704410

Unavailable

11

Y-Fitting

293710059

Unavailable

12

Check Valve

275500398

Unavailable

13

Check Valve

275500505

Unavailable

14

Spring Clamp

414554800

$0.83

15

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

16

Hose

513033070

$12.62

17

Norma Spring Clamp

513033010

Unavailable

18

Male Connector

414872700

Unavailable

19

Grommet | Europe

707800347

Unavailable

20

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

21

Formed Hose

513033374

$29.20

22

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

23

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

24

Fuel Pump

403901812

$84.99

25

FUEL PUMP MODULE - Call your local BRP dealership | Includes 25 to 27

513033120

$479.20

26

PUMP KIT - Call your local BRP dealership

861302700

Unavailable

27

REGULATOR KIT - Call your local BRP dealership

861302100

Unavailable

28

Réservoir Kit

861302800

Unavailable

29

SEAL - Call your local BRP dealership

513033039

Unavailable

30

Tie-Rap 180 mm

414115200

$0.09

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

32

HOSE - Call your local BRP dealership

513033035

Unavailable

33

Nut, Fuel Pump Module

513033040

$27.66

34

Spring Clamp

414415200

$0.83

35

Universal Spring Clamp

513033029

Unavailable

36

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

37

Fuel Filter Ass'y | Includes 44 to 47

513033133

$87.66

37b

Locking Clip

513033135

$5.11

38

Open Clamp

513033047

$4.88

39

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

40

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

41

Was 271000110 Protection Trim

219704353

Unavailable

42

Universal Spring Clamp

513033029

Unavailable

43

Crimp Clamp, 15.3-706R

293650047

Unavailable

44

Flat Washer 8 mm

234082410

$1.11

45

Hex. Elastic Stop Nut M8

232581414

Unavailable

46

SUPPORT - Call your local BRP dealership

513033066

$11.98
