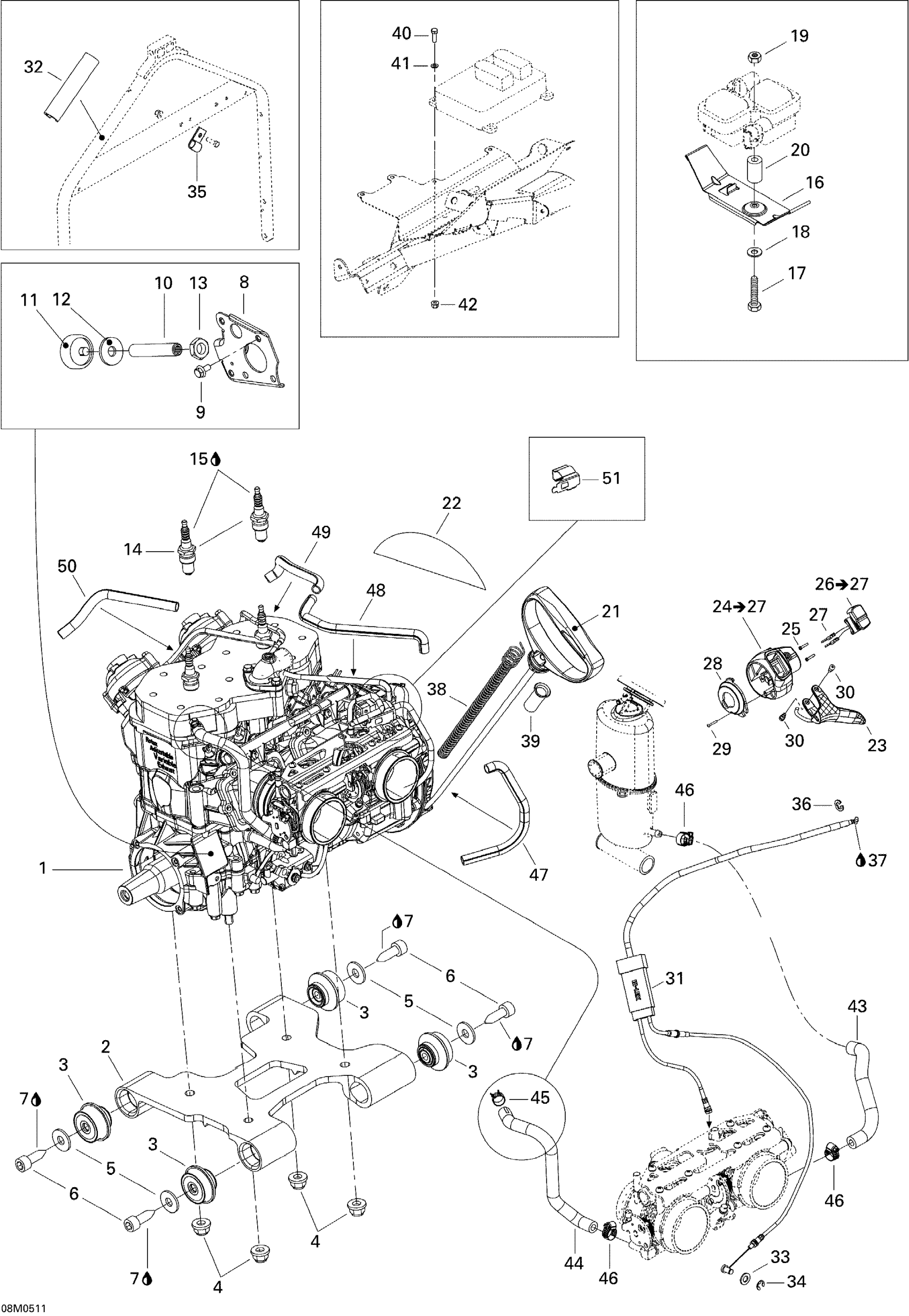

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2005 Engine And Engine Support Diagram

#

Description
Price

1

Engine 593 HO SDI Rer

400509758

Unavailable

2

Engine Support

512059754

Unavailable

3

Rubber Mount

512059691

$44.58

4

Hex. Flange Elastic Nut M10

233201414

$1.26

5

Flat Washer M10 | 4X4

250200014

$1.17

6

Screw M10 X 30

250000094

$23.05

7

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

8

PLATE - Call your local BRP dealership

512059840

Unavailable

9

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

10

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

11

STOPPER - Call your local BRP dealership

512059610

Unavailable

12

WASHER - Call your local BRP dealership

512059057

Unavailable

13

Hex. Jam Nut M14

232170411

Unavailable

14

Spark Plug NGK BR9ECS

415128524

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

16

COIL SUPPORT - Call your local BRP dealership

512059865

Unavailable

17

Hex. Screw M6 X 45

207064544

Unavailable

18

Flat Washer 6 mm

234061410

Unavailable

19

Elastic Stop Nut M6

232561414

Unavailable

20

SPACER - Call your local BRP dealership

512059812

Unavailable

21

Starter Grip

572084400

Unavailable

22

REFLECTIVE SHEET - Call your local BRP dealership

512059893

Unavailable

23

Throttle Handle Ass'y | Includes 13 to 14

512060484

$118.43

24

Housing Throttle Ass'y | Includes 25 to 27

512060121

Unavailable

24

Housing Throttle Ass'y | Includes 25 to 27

512060121

Unavailable

25

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

25

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

26

Housing Throttle Ass'y | Includes 25 to 27

512060121

Unavailable

26

Housing Throttle Ass'y | Includes 25 to 27

512060121

Unavailable

27

Male Terminal

515175232

$1.49

28

COVER - Call your local BRP dealership

512059698

Unavailable

29

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

30

Flange Screw

732601143

$4.02

31

Throttle Cable

512059765

Unavailable

31

Throttle Cable

512059878

Unavailable

32

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

33

Flat Washer 8 mm, Nylon

234081100

$1.00

34

Circlip

414753500

$0.59

35

Open Clamp

414176000

$1.86

36

Circlip

414274500

Unavailable

37

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

38

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

39

TUBE - Call your local BRP dealership

512059536

Unavailable

40

Hex. Screw M5 X 20

207152044

$0.88

41

Flat Washer M5

234051410

Unavailable

42

Hex. Flange Elastic Nut M5

233251414

Unavailable

43

FORMED HOSE - Call your local BRP dealership

512059563

Unavailable

44

HOSE-FORMED - Call your local BRP dealership This part replaces 512059990.

605354601

Unavailable

45

Universal Spring Clamp

513033029

Unavailable

46

Tridon Gear Clamp

293650170

$1.74

47

Was 409901700 Tubing (9 mm)

219704399

Unavailable

48

Was 409901700 Tubing (9 mm)

219704399

Unavailable

49

Was 409901700 Tubing (9 mm)

219704399

Unavailable

50

Was 409901700 Tubing (9 mm)

219704399

Unavailable

51

Heating Element Bracket

512059809

Unavailable
