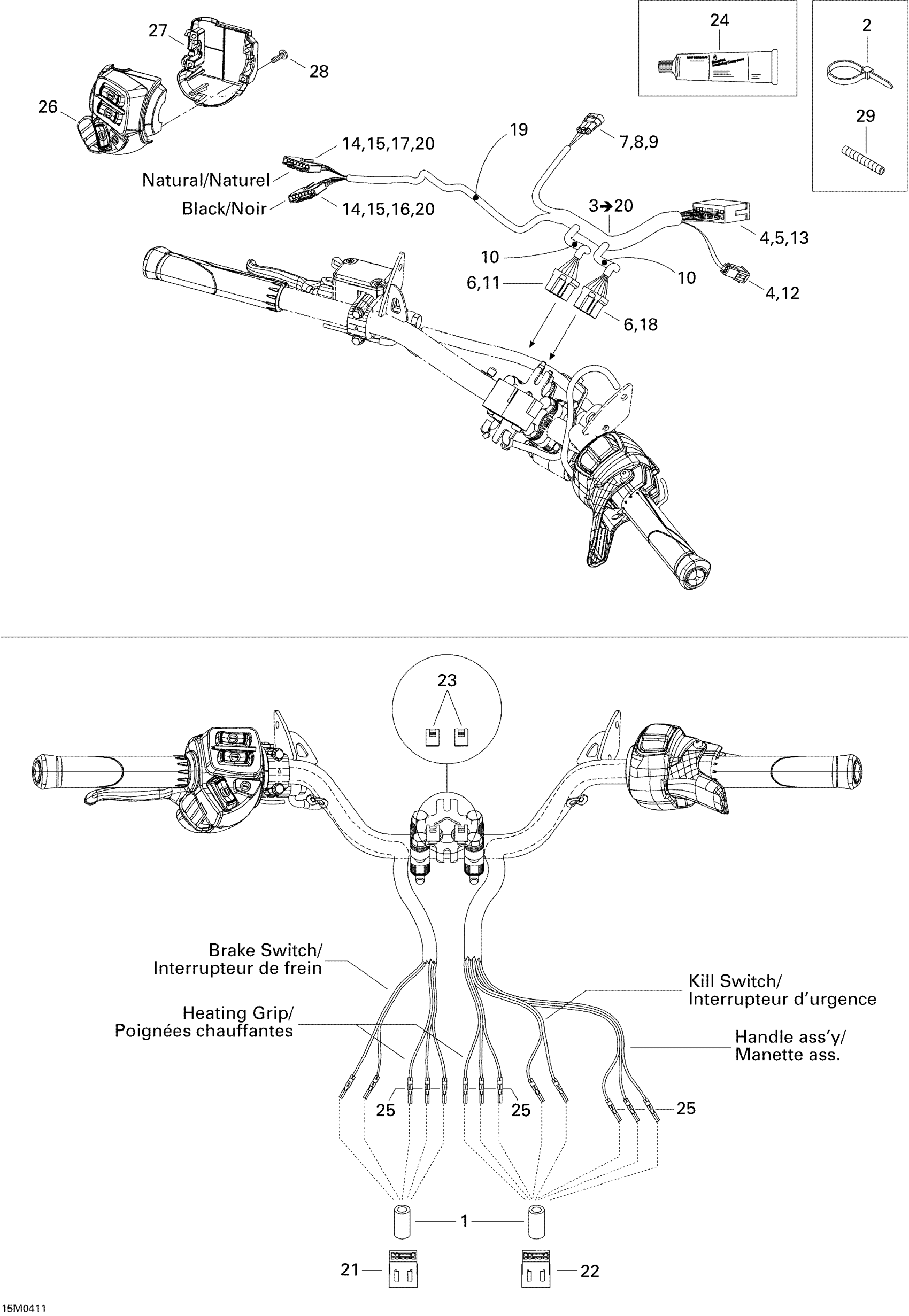

Ski-Doo MX Z 600 HO SDI, 2004 Steering Harness Diagram

#

Description
Price

1

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

2

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 142 mm

293750002

Unavailable

Tie-Rap 173 mm

293750009

Unavailable

3

Steering Harness | SE Models / Includes 2 to 19

515176068

Unavailable

Steering Harness | Includes items 3 to 20

515176122

Unavailable

4

Male Terminal

515175232

$1.49

5

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

6

Female Terminal

515175231

Unavailable

7

Male Terminal | Europe Models

409012900

$3.22

8

Housing

710000568

Unavailable

9

Wire Seal

278001013

Unavailable

10

Tubing 10 MM 1000MM Long

219704407

Unavailable

11

Female Terminal Housing, 6 Circuits

515175543

$8.57

12

Male Terminal Housing, 2 Circuits

515175654

$7.48

13

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

14

FEMALE TERMINAL - Call your local BRP dealership

515175808

$5.74

15

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

$7.65

16

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

$2.69

17

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

18

Female Terminal Housing, 8 Circuits

515175819

$7.46

19

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

20

Female Terminal

515175941

$2.48

21

Male Terminal Housing, 6 Circuits

515175662

Unavailable

22

Male Terminal Housing, 8 Circuits

515175817

Unavailable

23

HOUSING SUPPORT - Call your local BRP dealership

515175944

Unavailable

24

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

25

Male Terminal

515175232

$1.49

26

LH SWITCH HOUSING - Call your local BRP dealership

515176015

Unavailable

27

Switch Housing Plate

515175926

Unavailable

28

Torx Screw #8-18

250000263

$1.02

29

Tubing 6 Mm 3000Mm Long

219704425

$13.14
