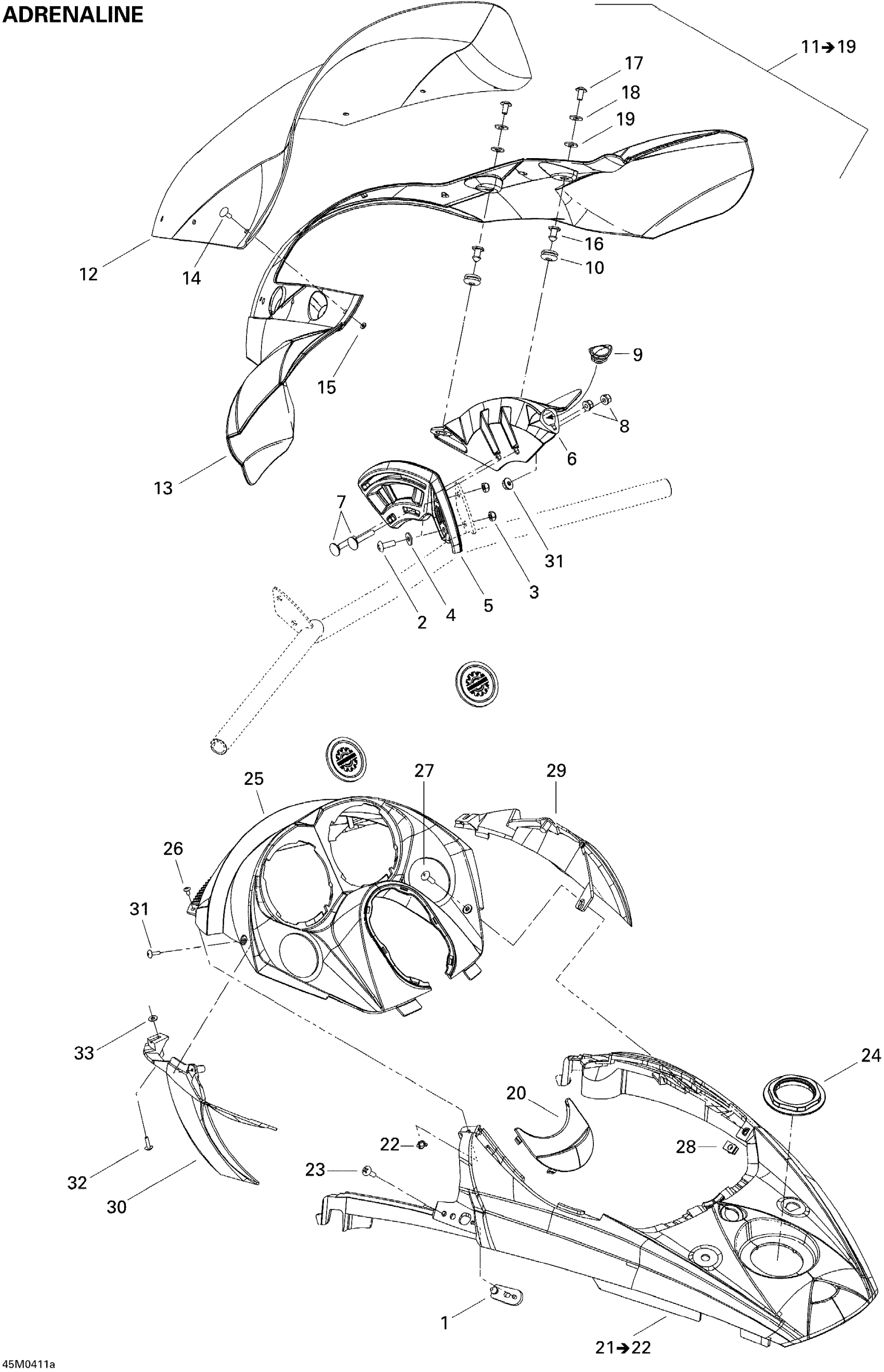

Ski-Doo MX Z 600 HO SDI, 2004 Windshield and console (Adrenaline) Diagram
#
Description
Price
1
HOOD LATCH - Call your local BRP dealership
517302616
Unavailable
2
Torx Truss Screw M6 X 16
250000721
Unavailable
4
Flat Washer 6 mm
234062100
Unavailable
5
RH Fixing Plate
517303076
Unavailable
LH Fixing Plate
517303078
Unavailable
6
RH WINDSHIELD SUPPORT - Call your local BRP dealership
517303077
Unavailable
LH WINDSHIELD SUPPORT - Call your local BRP dealership
517303079
Unavailable
7
Carriage Bolt M6 X 35
207763554
Unavailable
9
CAP - Call your local BRP dealership
517302806
Unavailable
10
Grommet
517302841
Unavailable
11
Windshield | Includes items 11 to 19
517303064
Unavailable
12
Windshield, Medium
517302443
Unavailable
13
Air Deflector
517302816
Unavailable
14
Windshield Dart
517303070
Unavailable
18
Washer M5
250200025
Unavailable
20
CONSOLE CAP - Call your local BRP dealership
517302592
Unavailable
21
Center Console | Includes 11 to 12
517303066
Unavailable
CENTER CONSOLE - Call your local BRP dealership | Includes 10 to 11
517303067
Unavailable
Center Console | Includes 11 to 12, 600 HO SDI (Blue/Black)
517303069
Unavailable
22
T-NUT, M4 - Call your local BRP dealership
250100030
Unavailable
23
Torx Screw M6 X 20
250000722
Unavailable
24
CONSOLE NUT - Call your local BRP dealership
517302575
Unavailable
25
Support
517302796
Unavailable
27
Torx Screw M5 X 20
250000724
Unavailable
28
Panel Nut M5 X 0.8
250000958
Unavailable
29
RH AIR DEFLECTOR - Call your local BRP dealership
517302546
Unavailable
30
LH AIR DEFLECTOR - Call your local BRP dealership
517302547
Unavailable
31
Phillips Screw K40 X 16
250000723
Unavailable
32
Screw M4 X 16
250000725
Unavailable
33
Flat Washer 4 mm, Stainless
234042600
Unavailable
