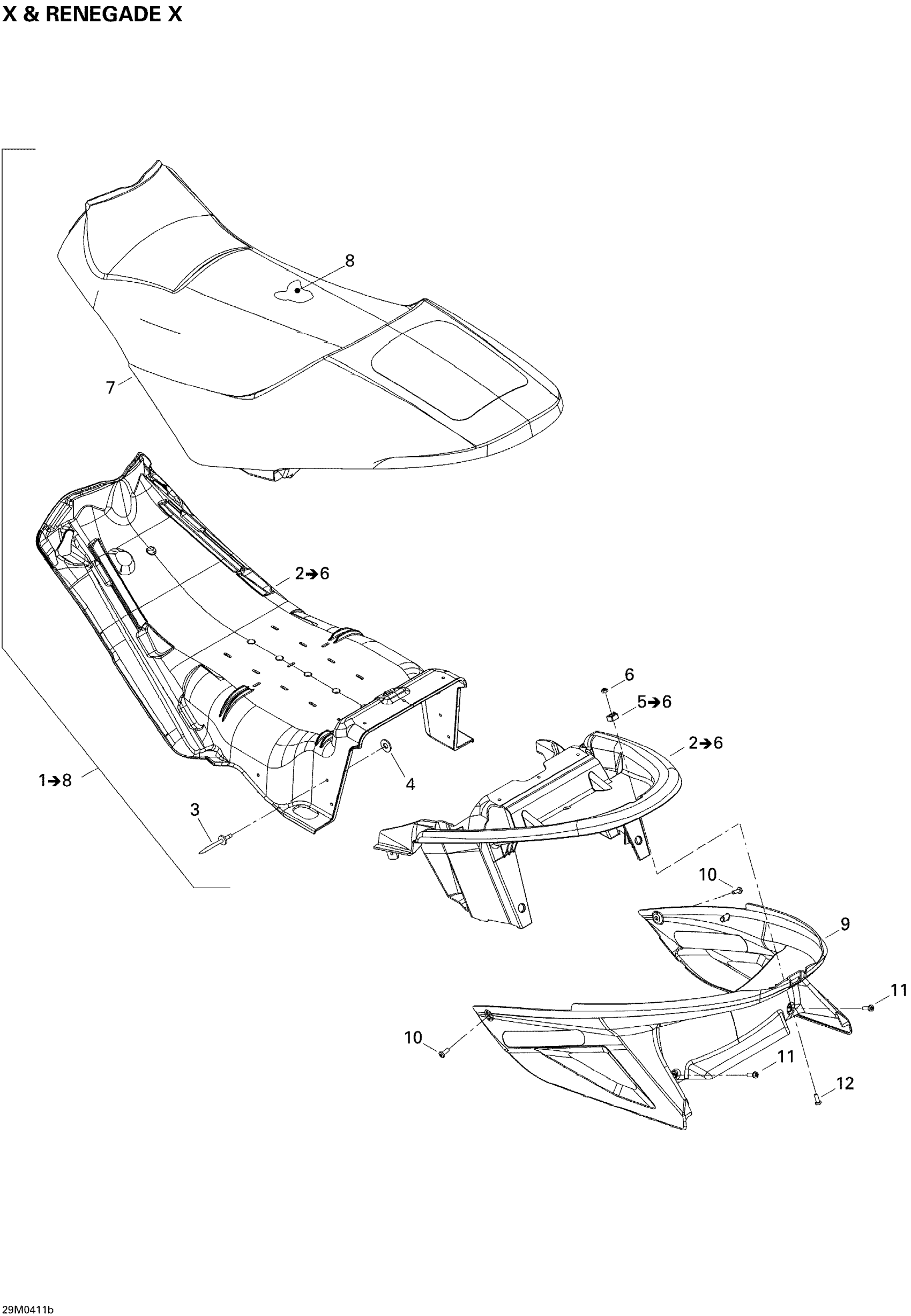

Ski-Doo MX Z 600 HO SDI, 2004 Seat (X_Renegade X) Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
2
Seat Base Ass'y
510004214
Unavailable
5
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
Unavailable
6
Hex. Nut M6
232061600
Unavailable
7
Seat Cover | Blue (B-225) & Black (B-190)
510004246
Unavailable
Seat Cover | Black (B-160) & Yellow (B-190)
510004247
Unavailable
Seat Cover | Black (B-160) & Black (B-160)
510004248
Unavailable
8
Seat Foam
510004216
Unavailable
9
Deep Black, Trunk
510004230
Unavailable
2000 Yellow, Trunk, Yellow
510004278
Unavailable
2000 Yellow, Trunk, Yellow
510004278
Unavailable
10
Torx Truss Screw M6 X 16
250000721
Unavailable
11
Torx Screw M6 X 20
250000722
Unavailable
TORX PAN HEAD SCREW M6 X 30 - Call your local BRP dealership | Renegade X
250000174
Unavailable
12
Torx Truss Screw M6 X 16
250000721
Unavailable
