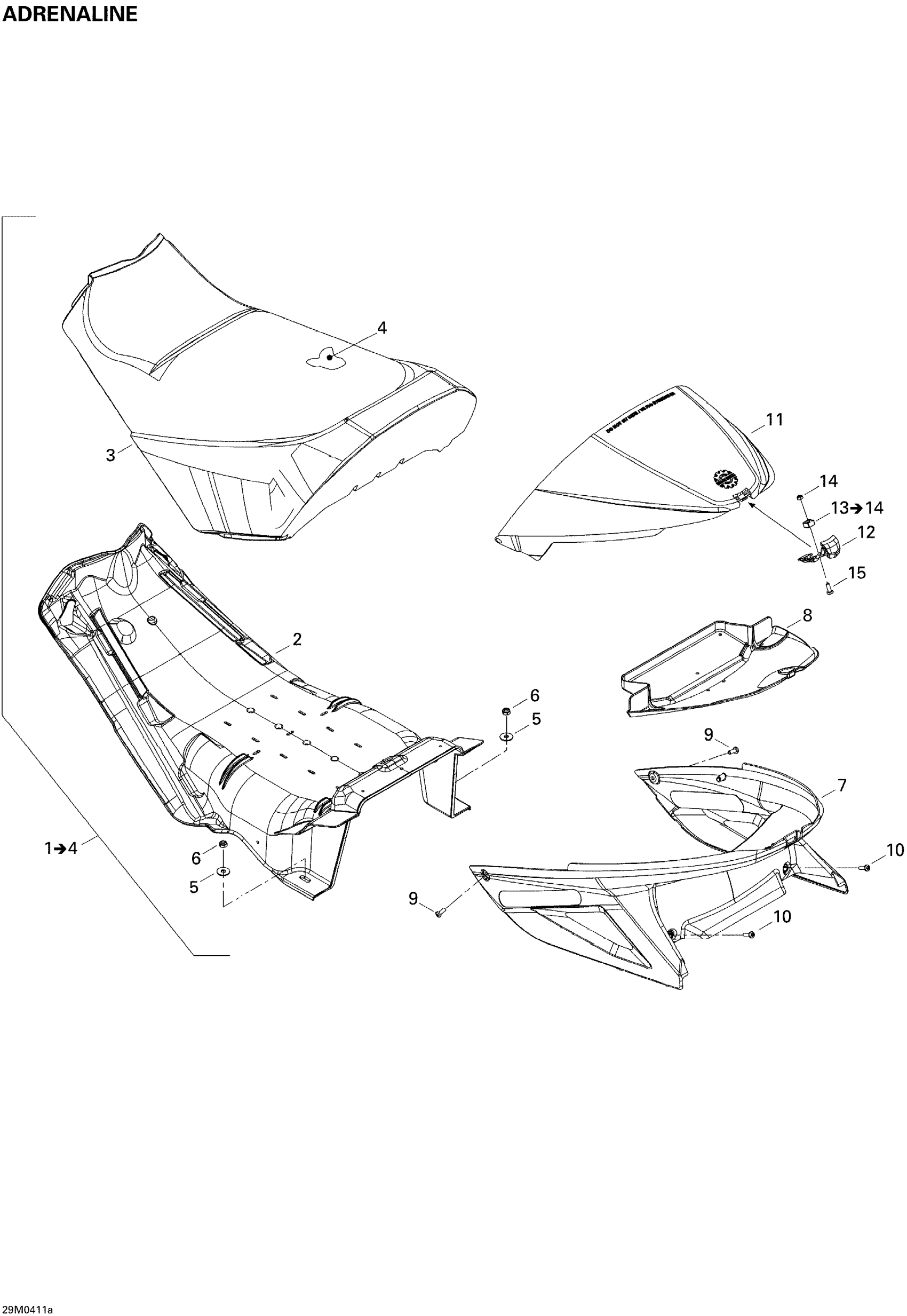

Ski-Doo MX Z 600 HO SDI, 2004 Seat (Adrenaline) Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
2
Seat Base
510004308
Unavailable
3
SEAT COVER - Call your local BRP dealership
510004274
Unavailable
Seat Cover | Yellow (B-190) & Black (B-160)
510004277
Unavailable
4
SEAT FOAM - Call your local BRP dealership
510004275
Unavailable
6
Hex. Elastic Stop Nut M8
232581414
Unavailable
7
Deep Black, Trunk
510004230
Unavailable
8
Box Liner
510004231
Unavailable
9
Torx Truss Screw M6 X 16
250000721
Unavailable
10
Torx Screw M6 X 20
250000722
Unavailable
11
2000 Yellow, Cover
510004309
Unavailable
Deep Black, Cover
510004311
Unavailable
12
Bracket
510003917
Unavailable
13
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
Unavailable
14
Hex. Nut M6
232061600
Unavailable
15
Torx Truss Screw M6 X 16
250000721
Unavailable
