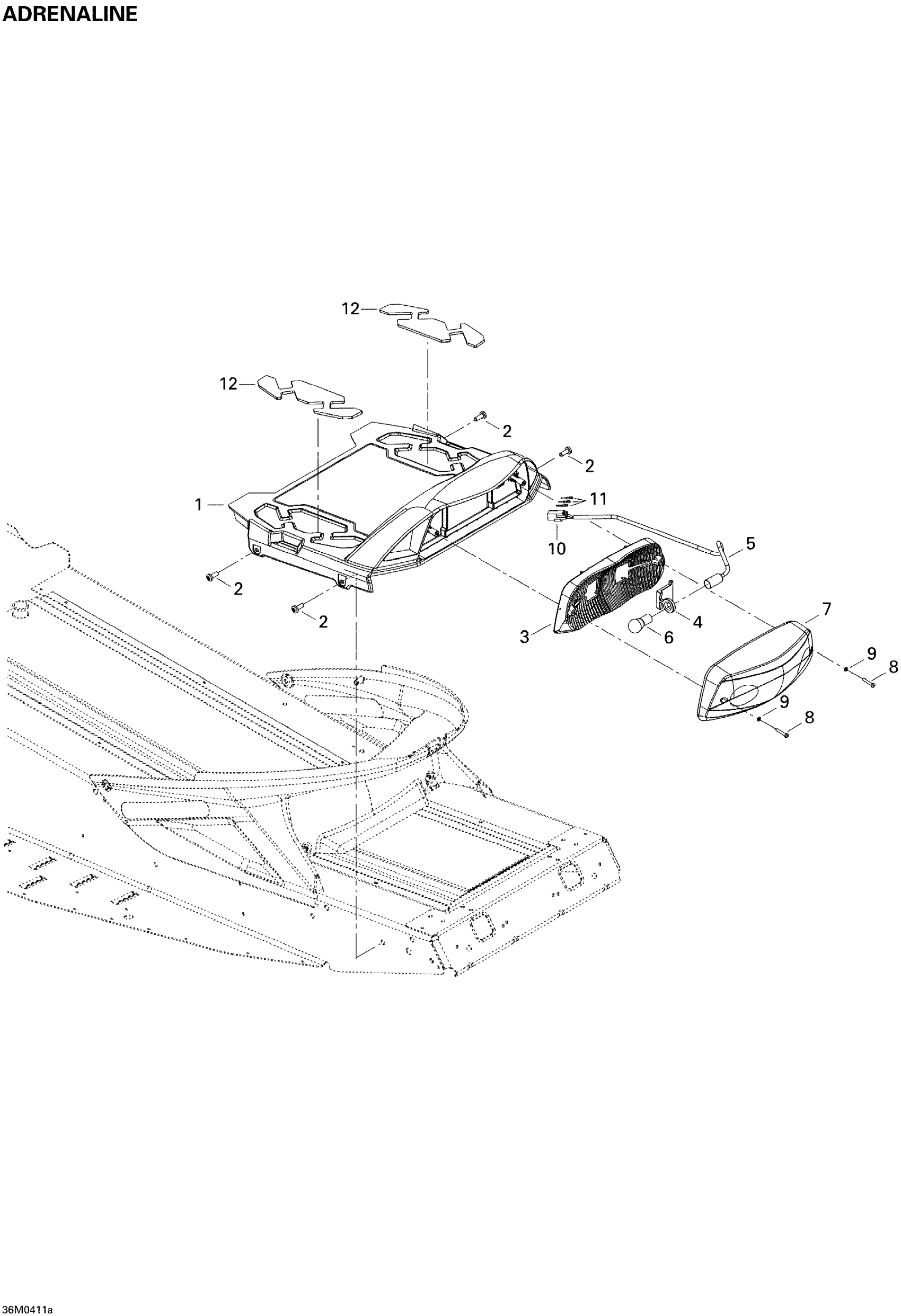

Ski-Doo MX Z 600 HO SDI, 2004 Luggage Rack (Adrenaline) Diagram

#

Description
Price

1

Luggage Rack

511000242

Unavailable

2

Torx Truss Screw M6 X 16

250000721

$1.39

3

REFLECTOR - Call your local BRP dealership

510004018

Unavailable

4

Rubber Damper

414979411

Unavailable

5

Fitting

515176045

Unavailable

6

Bulb

520000758

$7.49

7

Lens

511000315

$34.58

8

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

9

Washer - Call your local BRP dealership

414516400

Unavailable

10

Male Housing, 3 Circuits

515175494

$15.35

11

Male Terminal

515175232

$1.49

12

Rear Carpet

520000390

Unavailable
