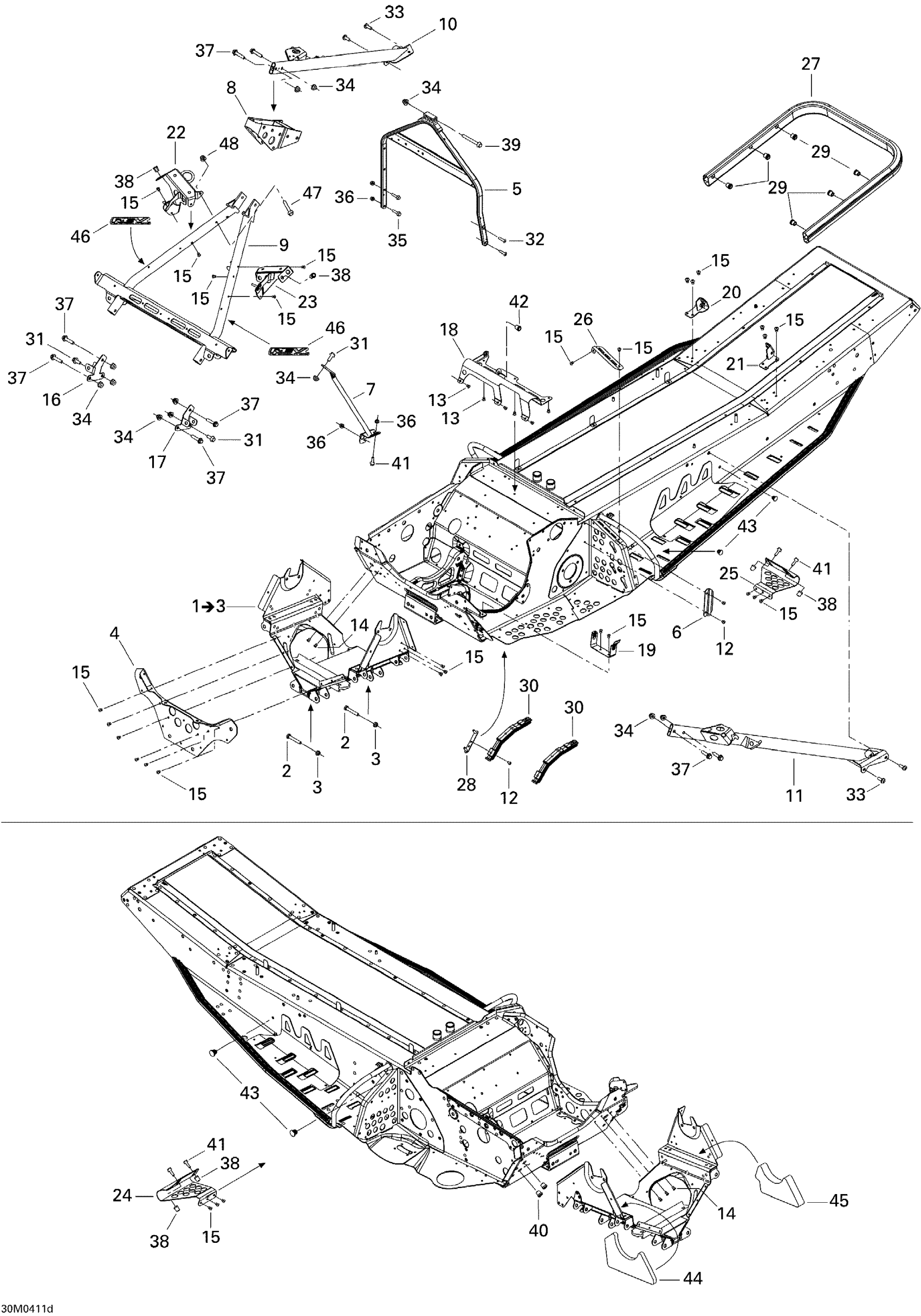

Ski-Doo MX Z 600 HO SDI, 2004 Frame system (Renegade X) Diagram

#

Description
Price

1

Cross Member | Includes 1 to 6

518325423

Unavailable

2

Hex. Screw M8 X 50

207085044

Unavailable

3

Hex. Elastic Stop Nut M8

232581414

Unavailable

4

Front Plate

518322166

Unavailable

5

HANDLE SUPPORT - Call your local BRP dealership

518324505

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

8

BRACKET BLOCK - Call your local BRP dealership

518323854

Unavailable

9

Upper Cross Member

518324009

Unavailable

10

RH Member

518323352

Unavailable

11

LH MEMBER - Call your local BRP dealership

518323354

Unavailable

12

Pop Rivet 3/16"

390402200

$0.26

13

Pop Rivet 3/16"

390402400

Unavailable

14

Avex Rivet

390909100

$0.29

15

Avex Rivet

390909200

Unavailable

16

RH SHOCK BRACKET - Call your local BRP dealership

518322461

$8.43

17

LH SHOCK BRACKET - Call your local BRP dealership

518322462

$8.43

18

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

19

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

$11.85

20

RH BRACKET, BLACK - Call your local BRP dealership

518323769

Unavailable

21

LH BRACKET, BLACK - Call your local BRP dealership

518323770

Unavailable

22

RH Console Support

518323535

Unavailable

23

LH Console Support

518323536

Unavailable

24

RH Toe Hold

518323377

Unavailable

25

LH Toe Hold

518323378

Unavailable

26

PLATE, BLACK - Call your local BRP dealership

518323105

$7.89

27

Rear Bumper

518323778

Unavailable

REAR BUMPER, BLACK - Call your local BRP dealership | Europe

518324077

Unavailable

28

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

29

Hex. Screw M8 X 20

236282084

Unavailable

Hex. Screw M8 X 20

236282084

Unavailable

30

Front Protector

518324071

Unavailable

31

Hex. Flange Screw M8 X 20

207682044

Unavailable

32

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

33

Pan Head Torx Screw M8 X 12

250000887

$1.56

34

Hex. Flange Elastic Nut M8

233281414

Unavailable

35

Hex. Flange Screw M6 X 25

207662544

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

37

Hex. Flange Screw M8 X 35

207683544

$1.39

38

Insert

293450275

Unavailable

39

Hex. Flange Screw M8 X 70

207687044

Unavailable

40

Insert

293450166

Unavailable

41

Hex. Flange Screw M6 X 20

207662044

Unavailable

42

Threaded Insert M6 X 1.0

250100242

Unavailable

43

Panel Fastener

518321954

Unavailable

44

RH FRONT FOAM - Call your local BRP dealership

518323453

Unavailable

45

LH FRONT FOAM - Call your local BRP dealership

518323007

$8.68

46

Frame Decal

516001725

Unavailable

47

Hex. Flange Screw M6 X 35

207063544

$1.35

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
