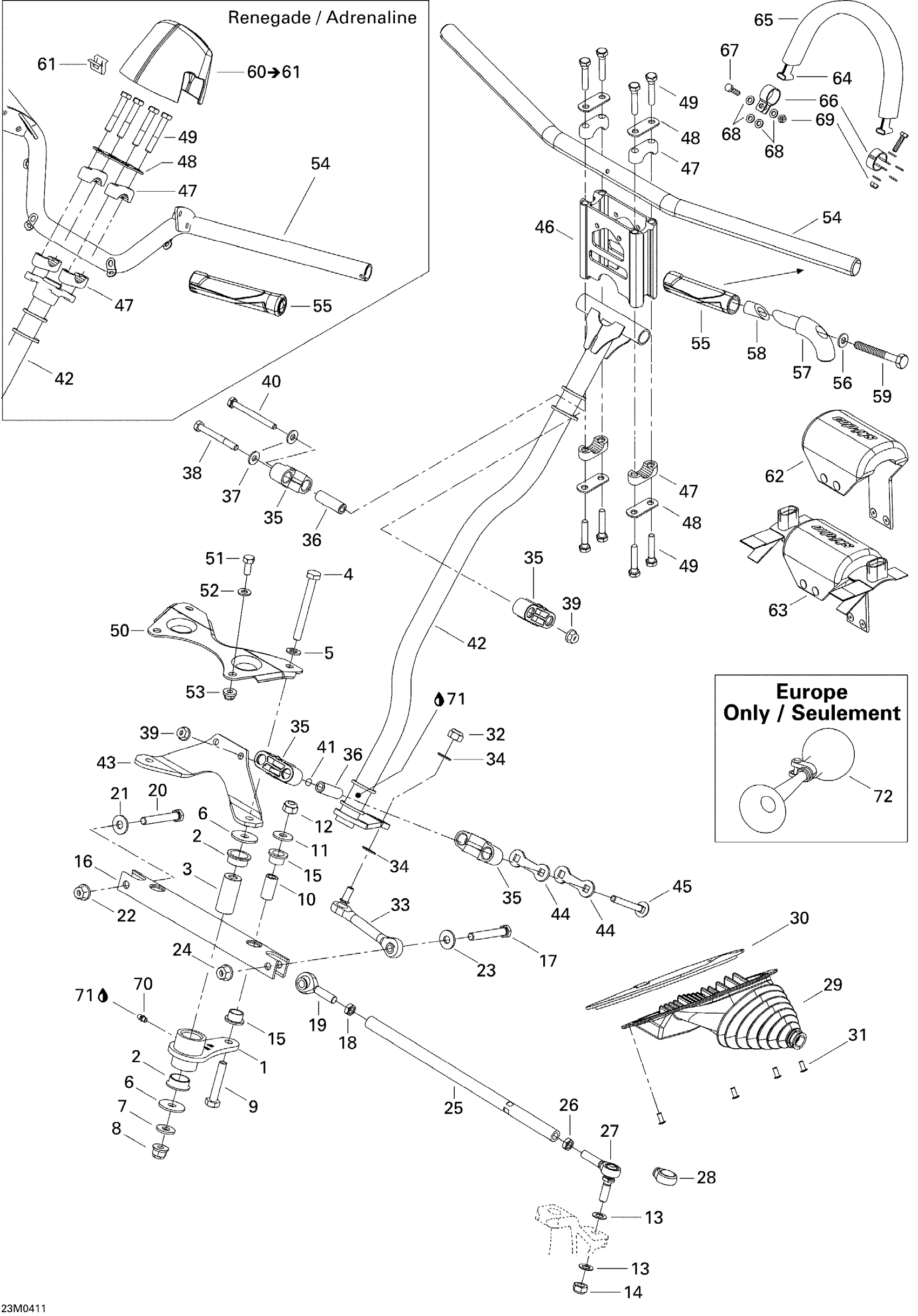

Ski-Doo MX Z 600 HO SDI, 2004 Steering system Diagram

#

Description
Price

1

RH Swivel Arm

506151651

Unavailable

LH SWIVEL ARM - Call your local BRP dealership

506151652

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

Unavailable

3

SWIVEL PIVOT - Call your local BRP dealership

506151272

Unavailable

4

HEX. SCREW M10 X 90 - Call your local BRP dealership

207009086

Unavailable

5

Washer

503183800

$3.20

6

Washer 10 mm

506150000

$2.63

7

Flat Washer M10 | 4X4

250200014

$1.17

8

Flange Nut M10

732610084

$5.49

9

Hex. Screw M10 X 55

207005544

$1.85

10

Pivot Bar

506151273

$15.00

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.68

13

Washer

503175800

$3.26

14

Elastic Flange Nut M10

232501416

$1.25

15

Swivel Bushing

503191555

$5.71

16

SWIVEL BAR - Call your local BRP dealership

506151328

Unavailable

17

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

18

LH Threaded Hex. Jam Nut M10

250100016

$0.72

19

LH Ball Joint

506151810

Unavailable

20

Hex. Screw M10 X 45

207004544

$1.65

21

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

22

Hex. Flange Elastic Nut M10

233201414

$1.26

23

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

24

Hex. Flange Elastic Nut M10

233201414

$1.26

25

TIE-ROD - Call your local BRP dealership

506151340

Unavailable

26

RH Threaded Hex. Jam Nut M10

732610010

$0.72

27

Ball Joint

506151811

Unavailable

28

PROTECTION CAP - Call your local BRP dealership

506151650

Unavailable

29

RH Tie-Rod Cap

506151725

$40.74

LH Tie-Rod Cap

506151726

$40.74

30

RH RETAINER RING - Call your local BRP dealership

506151356

Unavailable

LH RETAINER RING - Call your local BRP dealership

506151357

Unavailable

31

Pop Rivet 3/16"

390402200

$0.26

32

Elastic Flange Nut M10

232501416

$1.25

33

BALL JOINT, DOUBLE - Call your local BRP dealership

506151621

Unavailable

34

Washer

503175800

$3.26

35

Housing Half

506150400

$7.31

36

Housing Bushing

506150500

$7.49

37

Washer

503189157

$3.20

38

Hex. Screw M8 X 70

207087044

$1.73

39

Hex. Flange Elastic Nut M8

233281414

$1.14

40

Hex. Screw M8 X 80

207088044

$1.58

41

O-RING - Call your local BRP dealership

506151140

Unavailable

42

Main Tube

506151334

Unavailable

Main Tube | X

506151779

Unavailable

43

STEERING SHAFT SUPPORT - Call your local BRP dealership

506151330

Unavailable

44

Stopper Plate

506150600

$4.15

45

Carriage Bolt M8 X 70

207787044

$1.11

46

Hangledbar Extension

506151754

Unavailable

47

Steering Support

709400919

$20.74

Steering Support

709400919

$20.74

48

Stiffner

709400509

$4.43

REINFORCEMENT - Call your local BRP dealership

506151547

Unavailable

49

Hex. Screw With Nylon M8 X 40

250000074

$1.83

HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership

250000082

Unavailable

50

PIVOT SUPPORT - Call your local BRP dealership

506151536

Unavailable

51

Hex. Screw M8 X 20

207182044

$0.61

52

Flat Washer 8 mm

234081410

$0.69

53

Hex. Flange Elastic Nut M8

233281414

$1.14

54

Handlebar

506151667

Unavailable

HANDLE BAR - Call your local BRP dealership

506151782

Unavailable

55

Handle Grip

506152238

Unavailable

HANDLE GRIP - Call your local BRP dealership | REN X

506152122

Unavailable

56

Flat Washer

250200039

$0.72

57

Short J-hook

506151837

Unavailable

58

Wedge Lock

506151839

Unavailable

59

HEX. SCREW M6 X 70 - Call your local BRP dealership

207067084

Unavailable

60

CAP - Call your local BRP dealership | Includes 29 to 30

506151660

Unavailable

61

Edge Clip

517302785

$0.70

62

STEERING PAD - Call your local BRP dealership

506152522

Unavailable

63

STEERING PAD, YELLOW - Call your local BRP dealership

506151889

Unavailable

64

Strap Ass'y | Package XMR

506152115

$43.05

65

Strap Ass'y | Package XMR

506152115

$43.05

66

Black Support Plate

506152536

$8.60

67

Hex. Flange Screw M6 X 20

207662084

$0.83

68

Flat Washer 6 mm

234061410

$1.04

69

Elastic Stop Nut M6

232561414

$1.55

70

Grease Fitting

408200700

$2.80

71

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

72

Horn

549011291

$35.35
