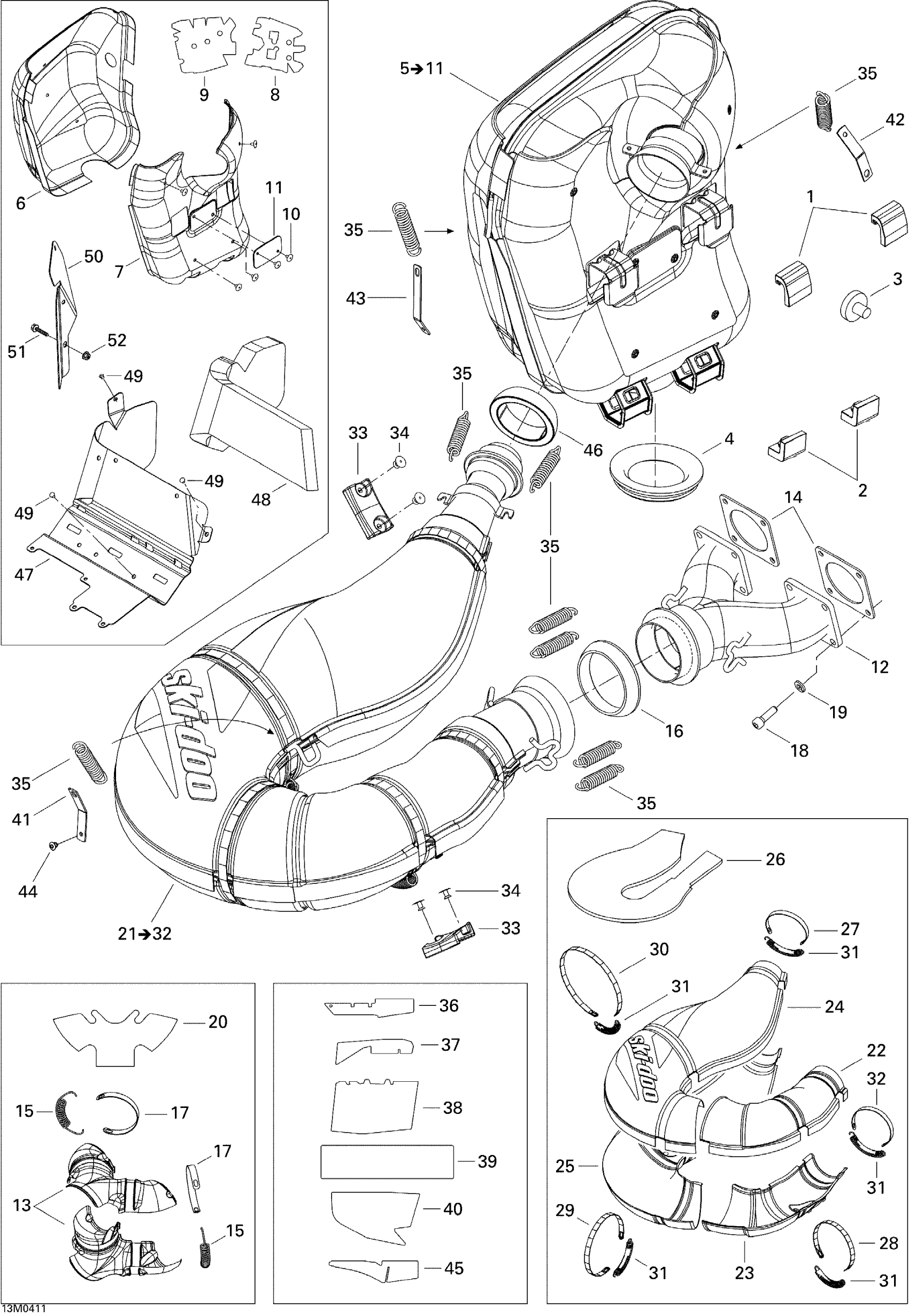

Ski-Doo MX Z 600 HO SDI, 2004 Exhaust System Diagram

#

Description
Price

1

UPPER STOPPER - Call your local BRP dealership

514053372

$13.95

2

Lower Stopper

514053373

Unavailable

3

Rubber Bumper

514053654

$49.20

4

Exhaust Grommet

514053394

Unavailable

5

Muffler Assy 600Ho SDI | Includes 5 to 11

514053822

Unavailable

6

RH Heat Shield

514053824

Unavailable

7

LH Heat Shield

514053585

Unavailable

8

LH INSULATING WOOL - Call your local BRP dealership

514053590

$12.28

9

RH INSULATING WOOL - Call your local BRP dealership

514053589

$13.82

10

Pop Rivet 3/16”

390910000

$0.48

11

Reinforcement

514053429

Unavailable

12

EXHAUST MANIFOLD - Call your local BRP dealership

420673072

Unavailable

13

Enveloppe, Exhaust Manifold

514053593

Unavailable

14

Gasket

420850552

$7.92

15

Spring

514053643

$6.20

16

Exhaust Gasket

514053487

Unavailable

17

RETAINING STRAP - Call your local BRP dealership

514053603

$7.66

18

Socket Head Screw M6 X 20

205062044

$1.07

19

Lock Washer M6, Black

234161471

$0.52

20

INSULATING WOOL - Call your local BRP dealership

514053588

$12.28

21

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 23 to 34

514053735

$626.89

22

Upper Front Half Envelope

514053609

Unavailable

23

Lower Front Half Envelope

514053610

Unavailable

24

UPPER REAR HALF ENVELOPE - Call your local BRP dealership

514053612

Unavailable

25

LOWER REAR HALF ENVELOPE - Call your local BRP dealership

514053613

$36.89

26

INSULATING WOOL - Call your local BRP dealership

514053584

$14.88

27

RETAINING STRAP - Call your local BRP dealership

514053437

$7.66

28

RETAINING STRAP - Call your local BRP dealership

514053500

$7.66

29

RETAINING STRAP - Call your local BRP dealership

514053534

$9.20

30

RETAINING STRAP - Call your local BRP dealership

514053535

$9.20

31

Spring

514053643

$6.20

32

Retaining Strap

514053536

$12.58

33

BUMPER - Call your local BRP dealership

514053352

$14.58

34

Pop Rivet 3/16"

293150103

Unavailable

35

Spring

415107100

$6.20

36

REFLECTIVE SHEET - Call your local BRP dealership

514053560

$9.20

37

Reflective Sheet

514053622

Unavailable

38

Reflective Sheet

514053561

Unavailable

39

Reflective Sheet

514053392

Unavailable

40

REFLECTIVE SHEET - Call your local BRP dealership

514053562

$9.20

41

SPRING BRACKET - Call your local BRP dealership

514049700

$4.58

42

SPRING BRACKET - Call your local BRP dealership

514053725

$6.18

43

Spring Bracket

514053393

$11.58

44

Pop Rivet 3/16"

390402200

$0.26

45

REFLECTIVE SHEET - Call your local BRP dealership

514053673

$7.66

46

Exhaust Gasket

514053812

$25.35

47

Acoustic Plate

514053874

$29.97

48

Acoustic Foam

514053875

Unavailable

49

Pop Rivet 3/16"

390402200

$0.26

50

HEAT DEFLECTOR - Call your local BRP dealership

514053876

$9.20

51

Hex. Flange Screw M6 X 20

207662044

Unavailable

52

Elastic Stop Nut M6

232561414

Unavailable
