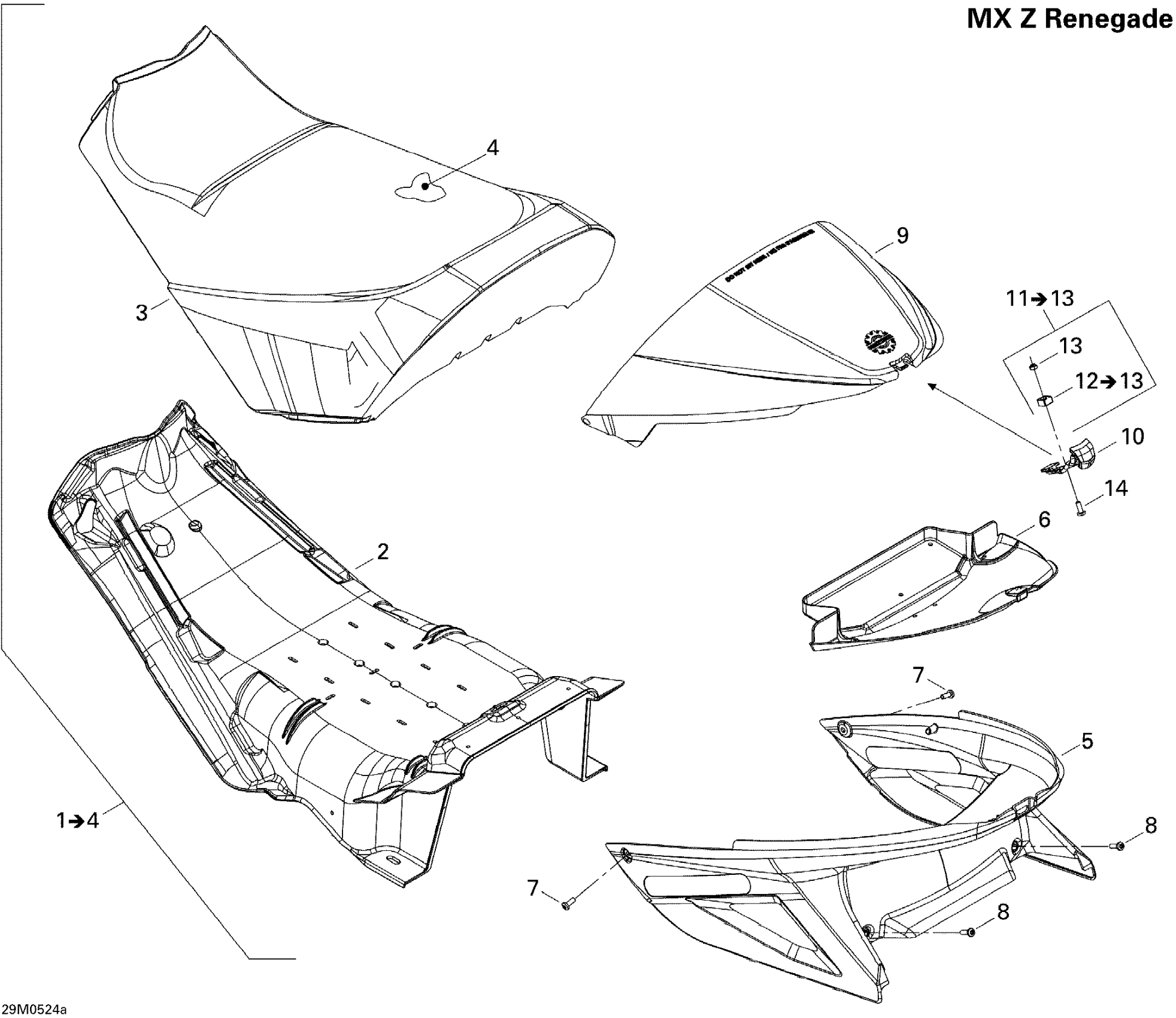

Ski-Doo MX Z 600 HO Renegade, 2005 Seat Renegade Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
SEAT BASE - Call your local BRP dealership
510004575
Unavailable
3
Seat Cover | Black Yellow
510004499
Unavailable
4
SEAT FOAM - Call your local BRP dealership
510004275
Unavailable
5
Deep Black, Trunk
510004230
Unavailable
5
2000 Yellow, Trunk, Yellow
510004278
Unavailable
6
BOX LINER - Call your local BRP dealership
510004600
Unavailable
7
Torx Truss Screw M6 X 16
250000721
Unavailable
8
Torx Screw M6 X 20
250000722
Unavailable
9
2000 Yellow, Cover
510004309
Unavailable
9
Deep Black, Cover
510004311
Unavailable
10
Bracket
510003917
Unavailable
11
NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3
708000046
Unavailable
12
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
Unavailable
13
Hex. Nut M6
232061600
Unavailable
14
Torx Truss Screw M6 X 16
250000721
Unavailable
