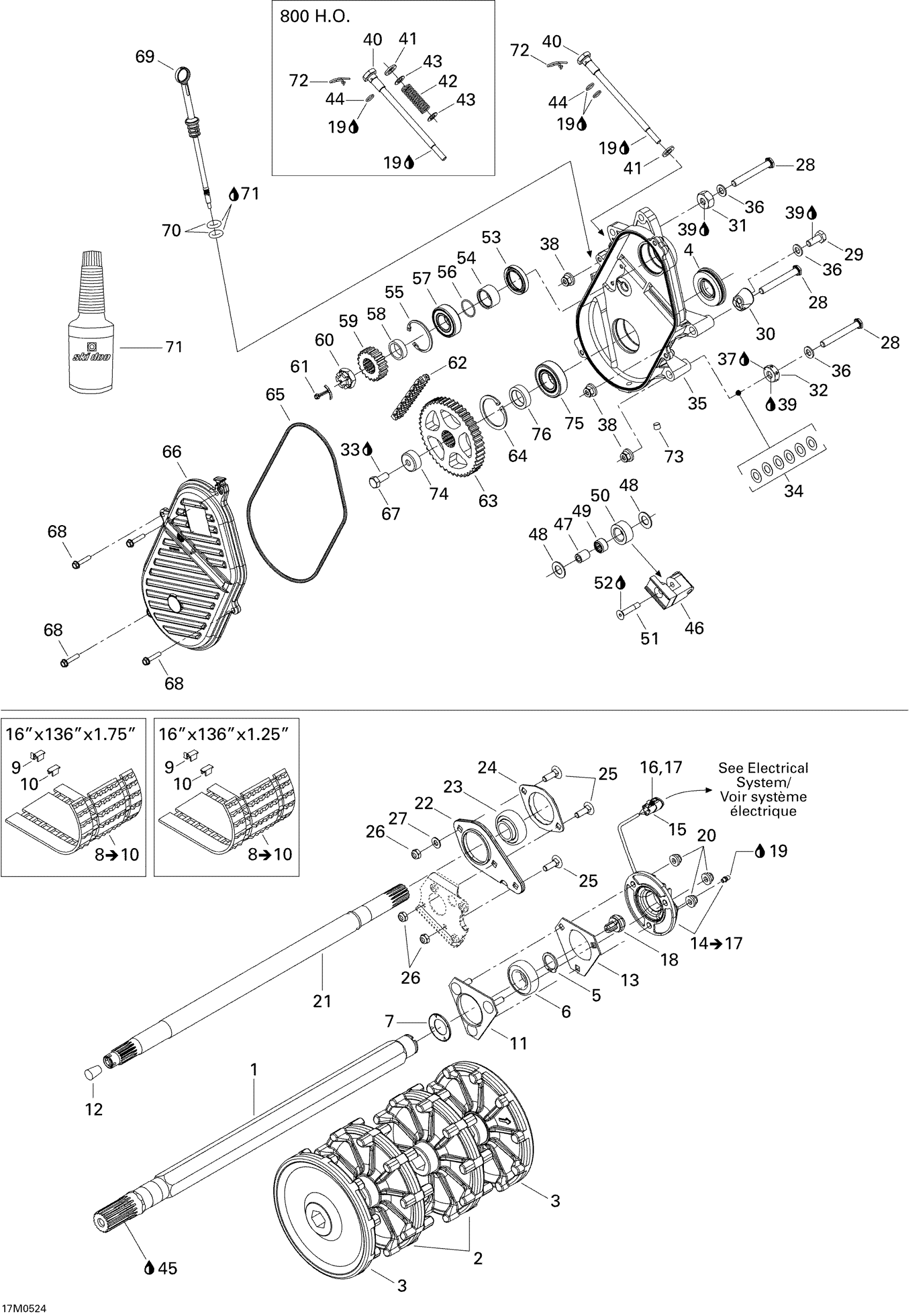

Ski-Doo MX Z 600 HO Renegade, 2005 Drive System Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

$256.89

2

SPROCKET, 10 TEETH - Call your local BRP dealership

504152198

Unavailable

3

HALF SPROCKET, 10 TEETH - Call your local BRP dealership

504152199

Unavailable

4

Oil Seal Ass'y

504151918

Unavailable

5

CIRCLIP - Call your local BRP dealership

371910200

Unavailable

6

Ball Bearing

293350060

Unavailable

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

TRACK 16 X 136 X 1.75 ASS'Y - Call your local BRP dealership | Includes 7 to 9, REN X 1,75

504152406

Unavailable

8

Track 16" X 136" X 1.25" Ass'y | Includes 7 to 9

504152456

Unavailable

9

Track Guide | Track Width 16''

415129528

$3.12

9

Track Guide | Track Width 16''

415129528

$3.12

10

Cleat

504152651

Unavailable

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

CORK - Call your local BRP dealership

414784800

$2.28

13

FLANGE - Call your local BRP dealership

501025000

Unavailable

14

Rotation Sensor

504152345

Unavailable

15

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

16

Female Terminal

278000632

Unavailable

17

Female Lock, 3 Circuits

515175676

Unavailable

18

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

19

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

20

Hex. Flange Elastic Nut M8

233281414

Unavailable

21

COUNTER SHAFT - Call your local BRP dealership

504152018

Unavailable

22

SPACER - Call your local BRP dealership

504151968

Unavailable

23

Ball Bearing Kit This part replaces 504152535.

415129555

Unavailable

24

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

25

Carriage Bolt, M8 X 25 | XXC

207782544

$1.31

26

Hex. Elastic Stop Nut M8

232581414

Unavailable

27

Flat Washer 8 mm

234081410

Unavailable

28

HEX. SCREW M10 X 80 - Call your local BRP dealership

250000151

Unavailable

29

Hex. Screw M10 X 25

207102544

Unavailable

30

Spacer

504152252

Unavailable

31

Spacer

504083800

Unavailable

32

SPACER - Call your local BRP dealership

504152237

Unavailable

33

Loctite 271, 10 ml

293800005

Unavailable

34

WASHER - Call your local BRP dealership

504073700

Unavailable

35

Chaincase

504152086

Unavailable

35

Chaincase

504152312

Unavailable

36

Washer

503175800

$3.26

37

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

38

Hex. Flange Elastic Nut M10

233201414

$1.26

39

Loctite 243, 10 ml

293800060

$20.77

40

Adjustment Screw

504151946

Unavailable

40

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

41

Flat Washer 10 mm

234001410

Unavailable

41

Washer | 7415/7416. 7417/7418.

503189148

Unavailable

42

SPRING - Call your local BRP dealership

504151945

Unavailable

43

HARD WASHER - Call your local BRP dealership | LTD

503125900

$2.48

44

O-Ring

414484400

$7.31

44

O-RING - Call your local BRP dealership

504151954

Unavailable

45

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

46

Chain Tensioner

504151940

Unavailable

46

Chain Tensioner

504151951

Unavailable

47

SPACER - Call your local BRP dealership

504080200

Unavailable

48

WASHER - Call your local BRP dealership

504080300

Unavailable

49

NEEDLE BEARING - Call your local BRP dealership

405403000

$22.28

50

ROLLER - Call your local BRP dealership

414531300

Unavailable

51

SCREW - Call your local BRP dealership

732601144

Unavailable

52

Loctite 271, 10 ml

293800005

Unavailable

53

Oil Seal

293200158

Unavailable

54

SPACER - Call your local BRP dealership

507031500

Unavailable

55

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

56

O-RING - Call your local BRP dealership

414876700

Unavailable

57

Ball Bearing

293350115

Unavailable

58

SHIM - Call your local BRP dealership

504147200

Unavailable

59

Sprocket 23 Teeth

504153911

Unavailable

59

Sprocket, 21 Teeth

504096200

$42.28

60

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

61

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

62

Drive Chain, 74 Links | Except Europe

504151857

Unavailable

63

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

64

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

65

O-Ring

415046400

$24.58

66

CHAINCASE COVER - Call your local BRP dealership

504152471

Unavailable

67

Hex. Screw M10 X 25

207102544

Unavailable

68

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

69

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

70

O-RING - Call your local BRP dealership

414969400

Unavailable

71

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

72

Hair Pin

414575600

Unavailable

73

Plug 1/8”-27

504151921

Unavailable

74

CAP - Call your local BRP dealership

504152460

Unavailable

75

Ball Bearing

504152005

Unavailable

76

Shim

504152058

Unavailable
