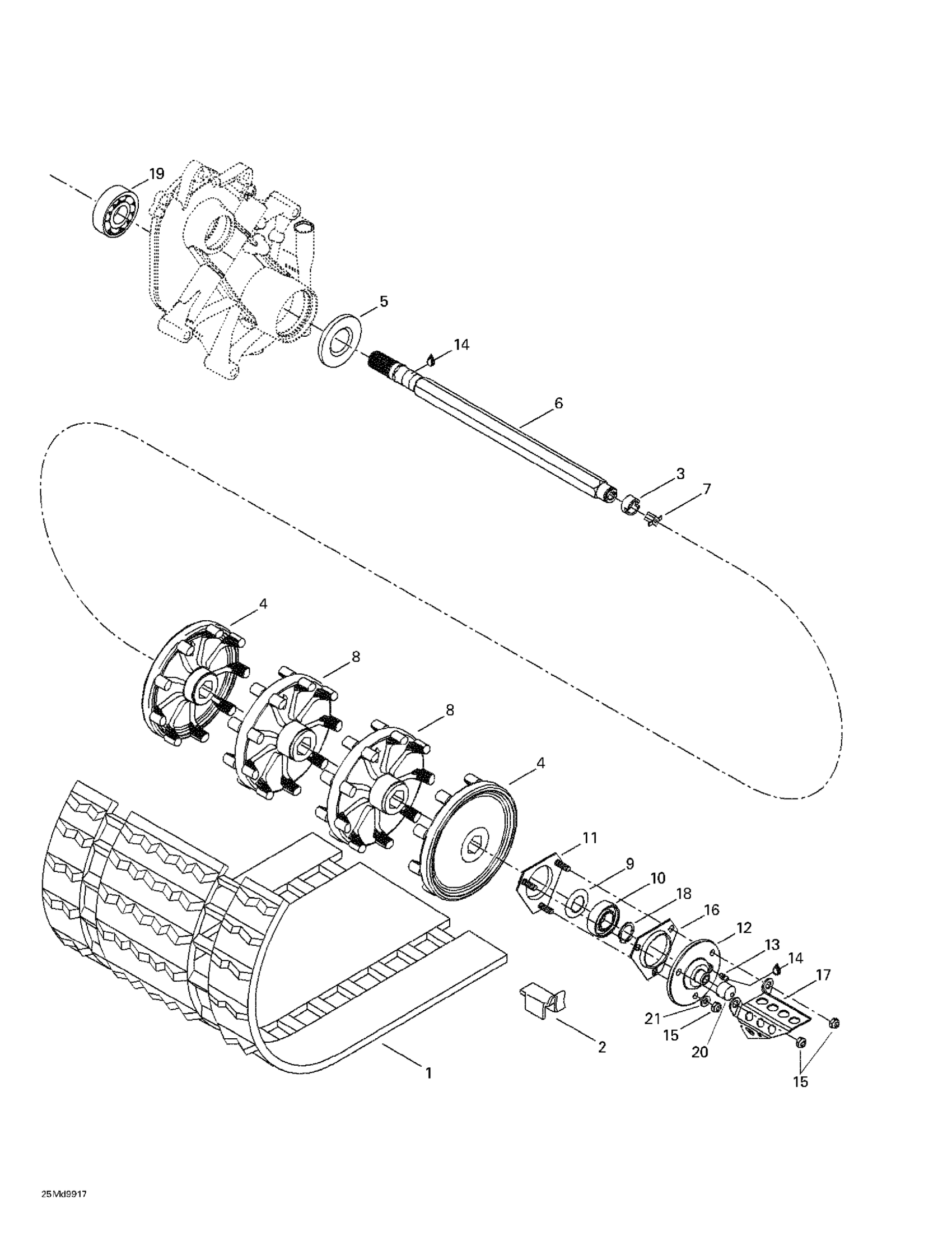

Ski-Doo MX Z 600, 1999 Drive Axle And Track Diagram
#
Description
Price
1
$760.00
Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10
504152485
Unavailable
3
Adaptor
572097500
Unavailable
4
9-Tooth Half Sprocket
504151834
Unavailable
HALF SPROCKET, 9 TEETH - Call your local BRP dealership
504151782
Unavailable
5
Oil Seal Ass'y
504151918
Unavailable
6
DRIVE AXLE - Call your local BRP dealership
504151792
Unavailable
7
SPEEDO DRIVE INSERT - Call your local BRP dealership
572010100
Unavailable
8
9-Tooth Sprocket
504151803
Unavailable
SPROCKET, 9 TEETH - Call your local BRP dealership
504151781
Unavailable
9
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
10
Ball Bearing
293350060
Unavailable
11
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
12
Flange, Speedo Drive Insert
504151836
Unavailable
13
Grease Fitting
408200700
Unavailable
14
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
15
Hex. Elastic Stop Nut M8
232581414
Unavailable
16
FLANGE - Call your local BRP dealership
501025000
Unavailable
17
CABLE PROTECTOR - Call your local BRP dealership
517290100
Unavailable
18
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
19
Ball Bearing
504152005
Unavailable
20
Cap
504151825
Unavailable
21
Flat Washer 8 mm
234081410
Unavailable
